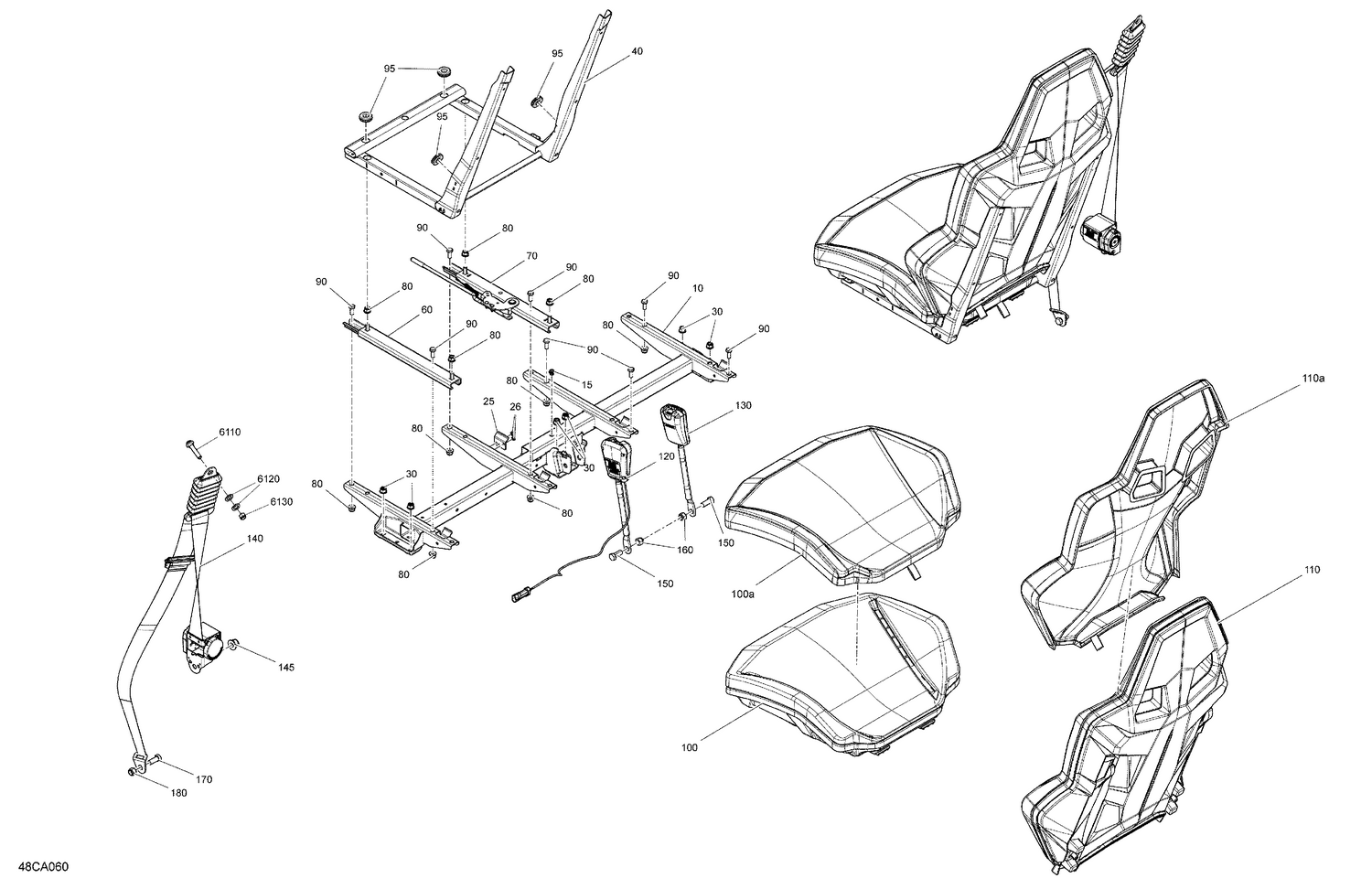

07- Body - Seat
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708003469 | Seat Member This part replaces 708002421. |
| 15 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 25 | 708003672 | Seat Stopper This part replaces 708002640. |
| 26 | 390402200 | Pop Rivet 3/16" |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 708002423 | Seat Frame |
| 60 | 708000848 | LH Rail |
| 70 | 708002711 | RH Rail |
| 80 | 233281414 | Hex. Flange Elastic Nut M8 |
| 90 | 207182044 | Hex. Screw M8 X 20 |
| 95 | 517303756 | Grommet |
| 100 | 708002839 | Cushion Ass'y |
| 100a | Not | Available As Spare Part - Seat cover |
| 110 | 708002430 | Backrest Ass'y |
| 110a | Not | Available As Spare Part - Backrest cover |
| 120 | 708002331 | Driver Buckle |
| 130 | 708002329 | Passenger Buckle |
| 140 | 708003378 | Safety Belt This part replaces 708002712. |
| 145 | 233221416 | Elastic Flange Nut M12 |
| 150 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 160 | 250100183 | Lock Nut Nylon 7/16 |
| 170 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 180 | 250100183 | Lock Nut Nylon 7/16 |
| 6110 | 708002443 | Safet Belt Screw |
| 6120 | 708000891 | Position Washer |
