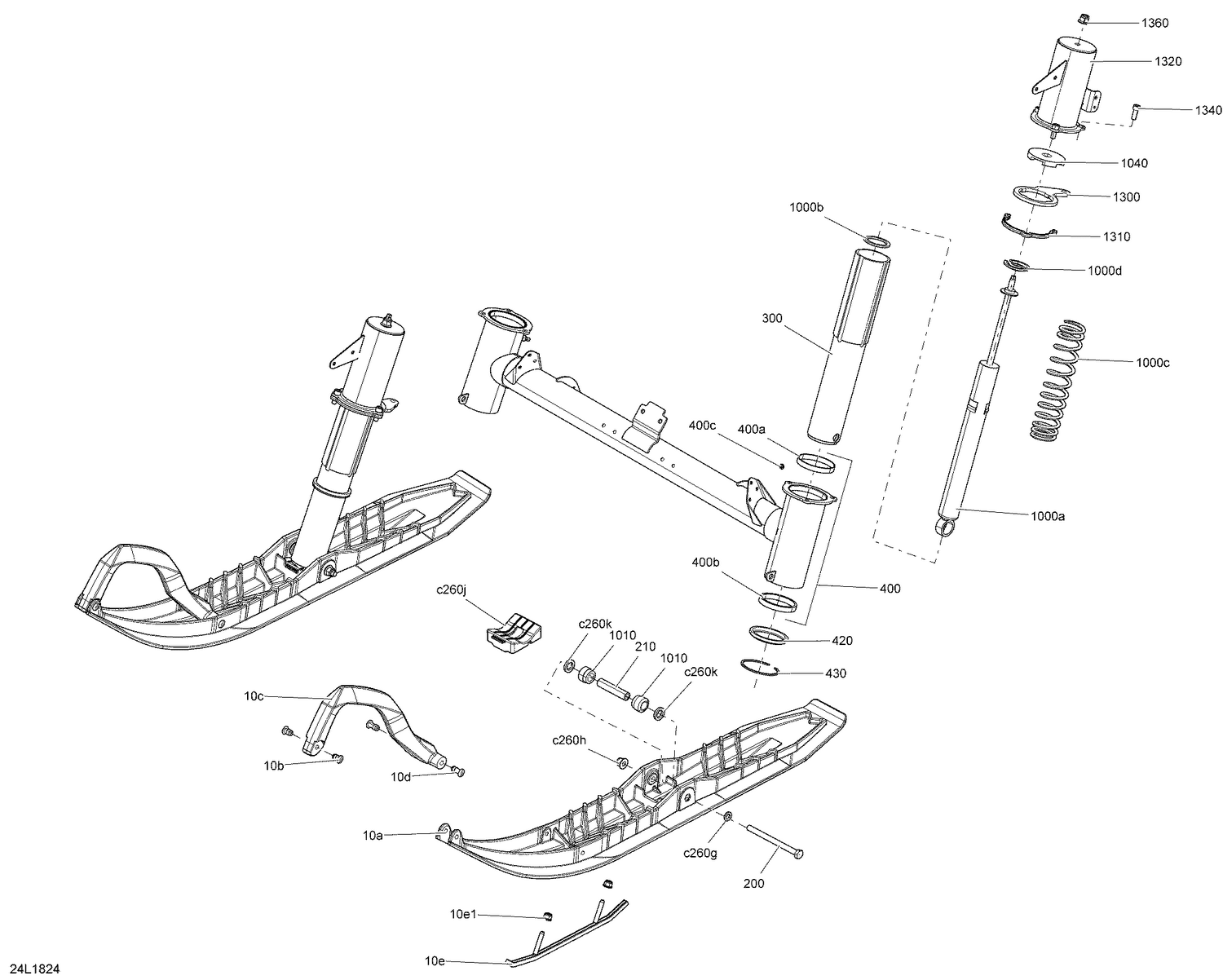

07- Front Suspension And Ski - All Models
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| c260g | 503192496 | Washer |
| c260h | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| c260j | 505072594 | Ski Stopper |
| 10a | 505073227 | Black, Ski |
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505072976 | Black, Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10e1 | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073209 | Ski Axle |
| 300 | 505073200 | Ski Leg |
| 400a | 414803100 | Upper Cushion |
| 400b | 414803200 | Lower Cushion |
| 400c | 408200700 | Grease Fitting |
| 420 | 505072696 | Seal Oil |
| 430 | 505072698 | Circlip |
| 1000a | 505073046 | Shock |
| 1000b | 505072578 | Washer |
| 1000c | 505072557 | Black, Spring |
| 1000d | 505072619 | Spring Stopper |
| 1010 | 572034500 | Cushion |
| 1040 | 570025800 | Stopper |
| 1300 | 505073823 | Steering Arm |
| 1310 | 505073983 | Spacer |
| 1320 | 505073449 | LH Suspension Cover |
| 1320 | 505073450 | RH Suspension Cover |
| 1340 | 205082044 | Socket Head Screw M8 X 20 |
| 1360 | 233201414 | Hex. Flange Elastic Nut M10 |
