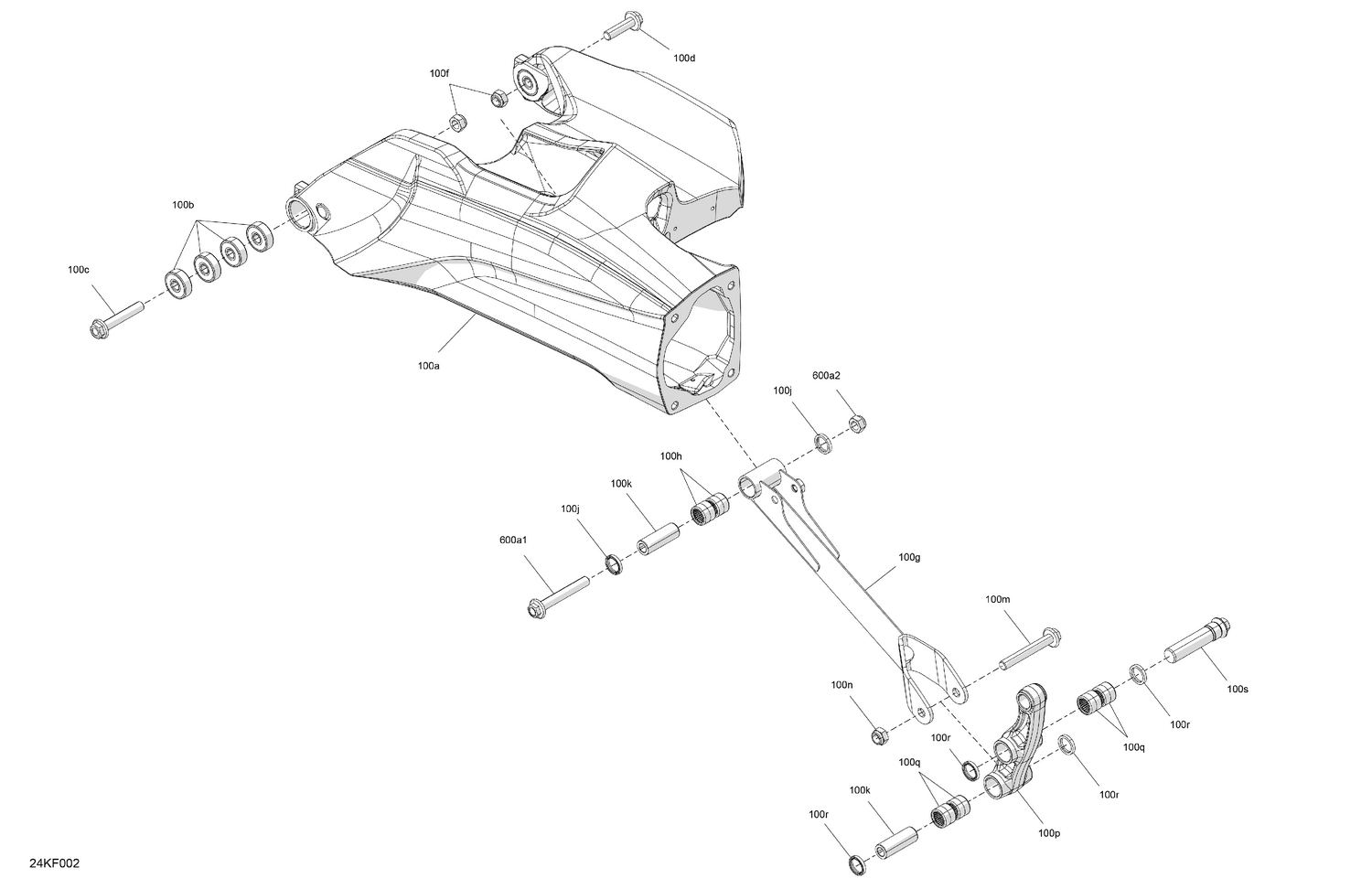

| Ref | Part Number | Description |
|---|
| 100a |
706004488 |
Swing Arm |
| 100b |
706002649 |
Ball Bearing, ID 12, OD 37, L 12 |
| 100c |
250000858 |
Hex. Flange Screw M12 X 70 |
| 100d |
207524556 |
Hex. Flange Screw M12 X 45, Scotch Grip |
| 100f |
232521416 |
Elastic Stop Nut M12 |
| 100g |
706002533 |
Suspension Arm Lever, Primary |
| 100h |
706002965 |
Bearing, Needles |
| 100j |
706000448 |
Seal, Single Lip ID 19.4 OD 26 |
| 100k |
706002534 |
Axle, Suspenion Arm |
| 100m |
207528556 |
Hex. Flange Screw M12 X 85, Scotch Grip |
| 100n |
232521416 |
Elastic Stop Nut M12 |
| 100p |
706202664 |
Suspension Arm Lever, Secondary |
| 100q |
706002965 |
Bearing, Needles |
| 100r |
706000448 |
Seal, Single Lip ID 19.4 OD 26 |
| 100s |
706002961 |
Pin Threaded M25 X 1.5 S.Grip, Lever |
| 600a1 |
207528556 |
Hex. Flange Screw M12 X 85, Scotch Grip |
