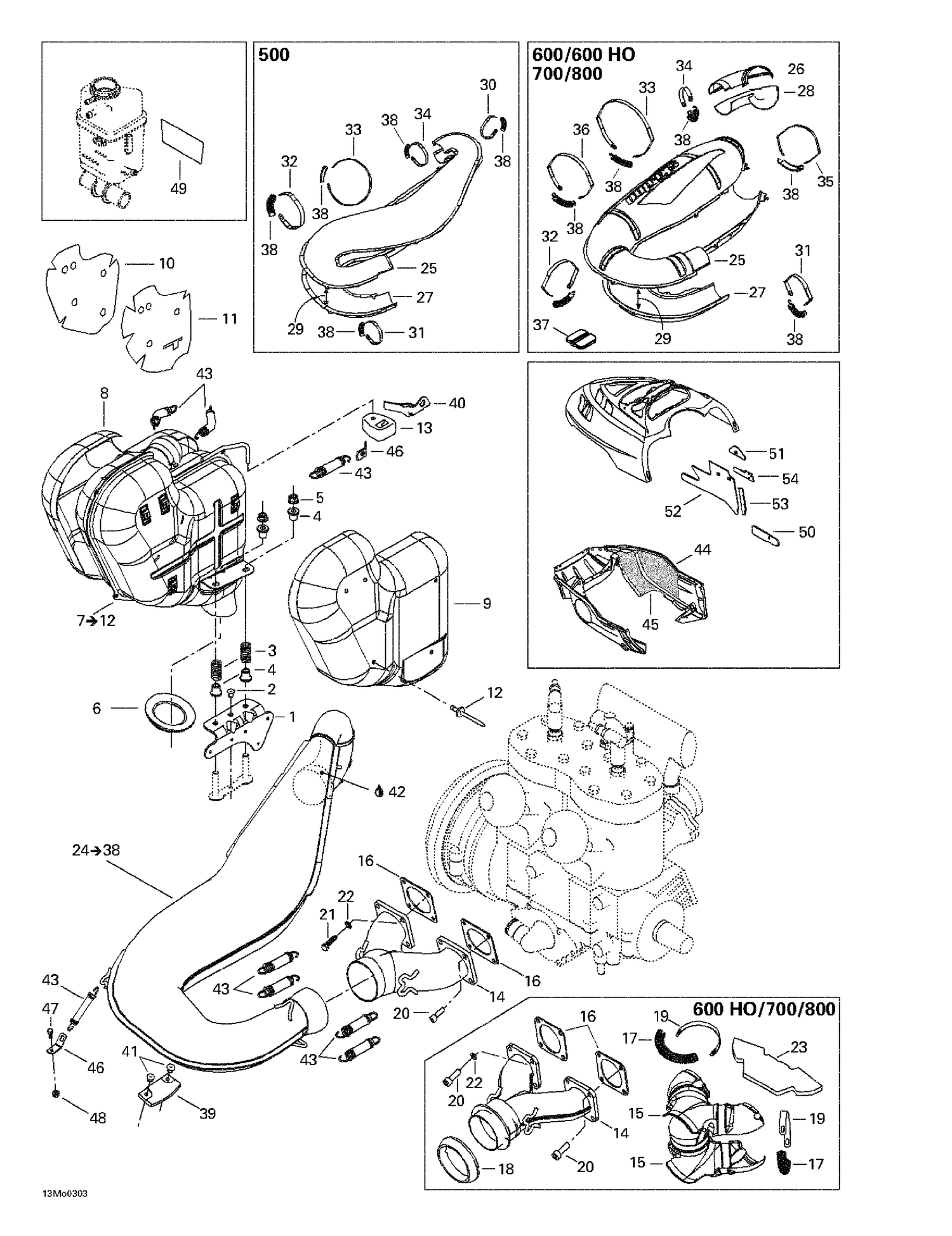

01- Muffler
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053263 | Muffler Bracket |
| 2 | 390402200 | Pop Rivet 3/16" |
| 3 | 414913700 | SPRING - Call your local BRP dealership |
| 4 | 514053343 | GUIDE - Call your local BRP dealership |
| 5 | 233481413 | Lock Spring Nut M8 |
| 12 | 390910000 | Pop Rivet 3/16” |
| 13 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 33 | 514053540 | RETAINING STRAP - Call your local BRP dealership |
| 39 | 570044100 | Rubber Pad |
| 41 | 293150103 | Pop Rivet 3/16" |
| 42 | 293800090 | Sealant, Loctite, 80 ml |
| 44 | 514052718 | Reflective Sheet |
| 45 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 47 | 207151244 | Hex. Screw M5 X 12 |
| 48 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 49 | 514053399 | Reflective Sheet |
| 52 | 514053624 | Reflective Sheet |
| 53 | 514053450 | Reflective Sheet |
