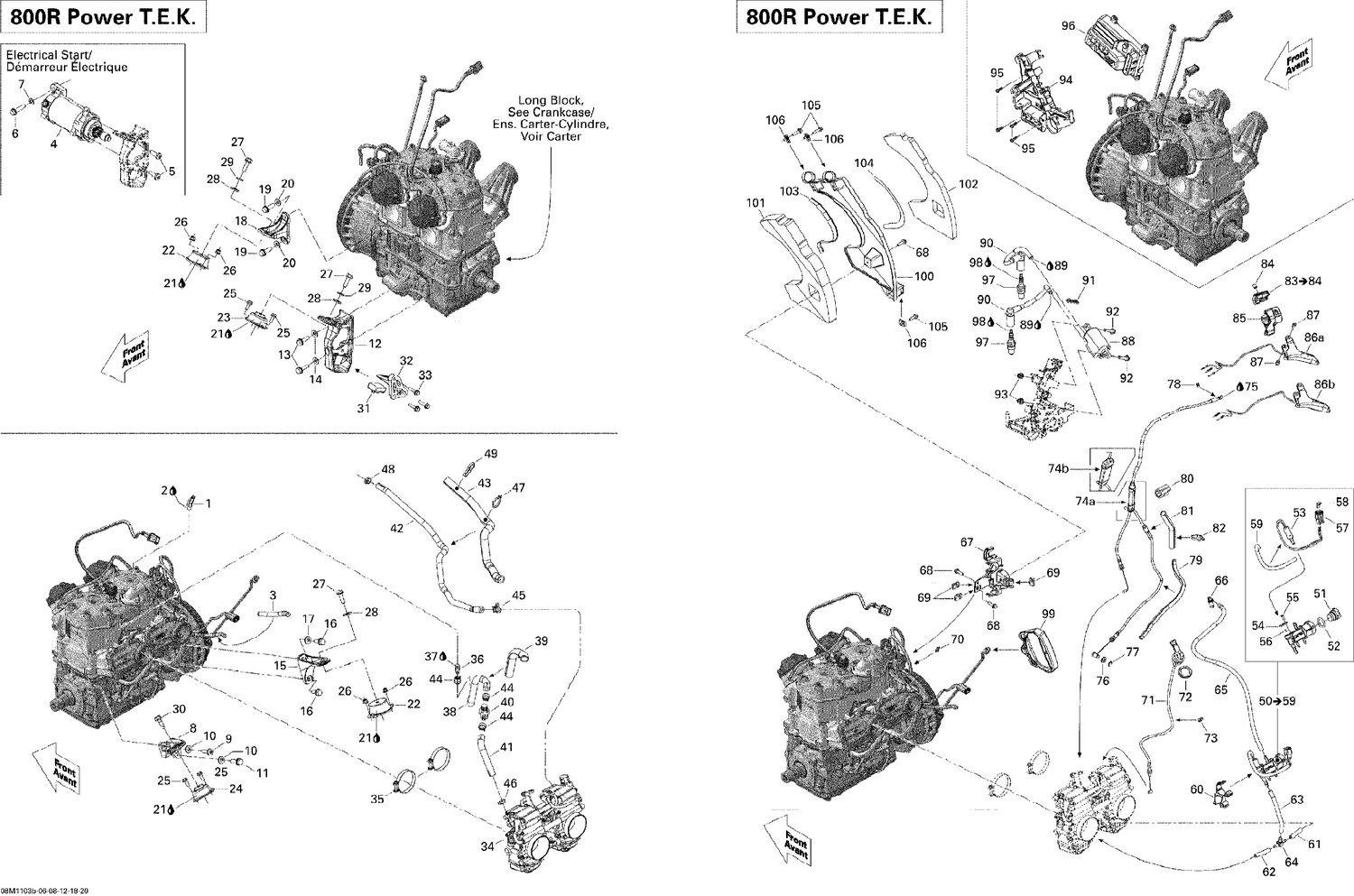

01- Engine

01- Engine

Parts (101)

RefPart NumberDescription
1 293700045 ELBOW FITTING 90 - Call your local BRP dealership
2 219704455 Was 293800018 Loctite 592, 50 ml
3 219704407 Tubing 10 MM 1000MM Long
8 512060478 Rear Support, PTO
9 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
10 234281474 Conical Spring Washer M8
11 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
12 512060714 Front Support, PTO This part replaces 512060561.
13 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
14 234281474 Conical Spring Washer M8
15 512060559 Rear Support, MAG
16 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
17 234281474 Conical Spring Washer M8
18 512060469 Front Support, MAG
19 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
20 234281474 Conical Spring Washer M8
21 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
22 512060729 Rubber Mount This part replaces 512060457.
23 512061507 Vibration Damper This part replaces 512060387.
24 512060448 Rubber Mount
25 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
26 233261414 Hex. Flange Elastic Nut M6 x 1.0
27 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
28 503183200 Yellow, Washer
29 234281474 Conical Spring Washer M8
30 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361.
31 512060627 Stopper This part replaces 512060577.
32 512060576 Stopper Support
33 207562544 Hex. Flange Screw M6 X 25
34 403138805 CARBURATOR KIT, TM40-B397 - Call your local BRP dealership
35 512059835 Gemi Clamp
36 512060196 Male Connector 1/8"-27 NPT
37 219704455 Was 293800018 Loctite 592, 50 ml
38 512060357 HOSE FORMED ENGINE OUTLET - Call your local BRP dealership
39 219704408 Tubing 16 Mm 1000Mm Long
40 512059324 Valve 5/16”
41 512060353 Hose Formed
42 512060347 Hose Formed
43 219704408 Tubing 16 Mm 1000Mm Long
44 414655700 Spring Clamp
45 293650214 Norma Spring Clamp
46 293650125 Oetiker Clamp
47 414115200 Tie-Rap 180 mm
48 293650046 Oetiker Clamp
49 414115200 Tie-Rap 180 mm
51 270600009 CAP - Call your local BRP dealership
52 293300042 O-RING - Call your local BRP dealership
53 515175701 PRESSURE MANIFOLD HARNESS - Call your local BRP dealership
54 415061600 SOLENOID LOCK - Call your local BRP dealership
55 241140060 Screw K40 X 10
56 404161825 STARTER JET - Call your local BRP dealership
57 515175670 Female Terminal Housing, 2 Circuits
58 515175675 Female Lock, 2 Circuits
59 219704424 Vinyl Tubing, Low Temp 3000Mm Long
60 512060229 DPM SUPPORT - Call your local BRP dealership
61 219704410 Polyurethane Hose 10000Mm Long
62 219704410 Polyurethane Hose 10000Mm Long
63 219704410 Polyurethane Hose 10000Mm Long
64 414729300 T-FITTING - Call your local BRP dealership
65 219704410 Polyurethane Hose 10000Mm Long
66 414580700 Male Connector
67 512060298 Solenoid Support
68 207652044 Hex.Flange Screw M5 X 20
69 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
70 293750001 Tie Wrap 94 mm
71 512060672 Choke Cable This part replaces 512060153.
72 512060671 Plastic Nut This part replaces 512060016.
73 414115200 Tie-Rap 180 mm
74a 512060623 THROTTLE CABLE - Call your local BRP dealership
74b XXX Not Available As Spare Parts
75 219704453 Was 293550004 Dielectric Grease, 150 g
76 234081100 Flat Washer 8 mm, Nylon
77 414753500 Circlip
78 414274500 Circlip
79 219704425 Tubing 6 Mm 3000Mm Long
80 512060313 Protector
81 219704407 Tubing 10 MM 1000MM Long
82 414115200 Tie-Rap 180 mm
84 414440800 Socket Set Screw M8 X 10
85 512060860 Lower Housing This part replaces 512060430.
86a 512061252 Throttle Handle Ass'y This part replaces 512060616.
86b XXX Not Available As Spare Parts
87 732601143 Flange Screw
88 512059968 Ignition Coil
89 219704453 Was 293550004 Dielectric Grease, 150 g
90 512060291 Cable
91 410914600 Plastic Clip, Spark Plug Wire
92 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
93 233261414 Hex. Flange Elastic Nut M6 x 1.0
94 512060924 Coils Support This part replaces 512060278.
95 241151640 Hex. Flange Screw K50 X 2.24 X 16
96 512060682 CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership
97 415128524 Spark Plug NGK BR9ECS
98 219704453 Was 293550004 Dielectric Grease, 150 g
99 512060136 Starter Grip
100 512060338 Noise Shield
101 512060341 Inner Noise Foam
102 512060342 Outer Noise Foam
103 512060574 Heat Shield
104 512060575 Heat Shield
105 207652044 Hex.Flange Screw M5 X 20
