Home / BRP / 2006 / ST 600, 2006 / 01- Engine And Engine Support

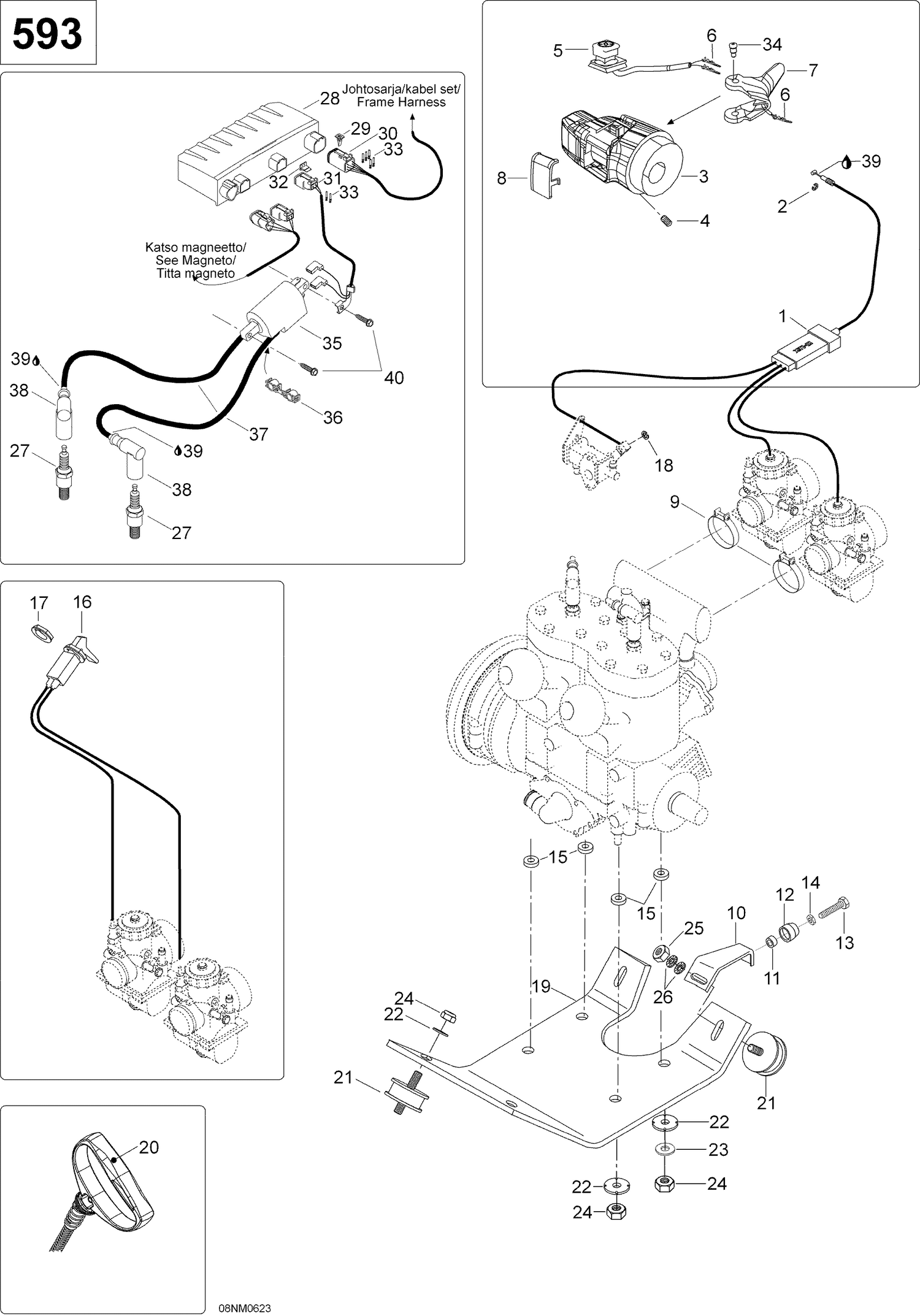

01- Engine And Engine Support

01- Engine And Engine Support

Parts (36)

RefPart NumberDescription
1 5246328 Throttle cable
2 31038 Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership
3 512059243 THROTTLE HOUSING - Call your local BRP dealership
4 414440800 Socket Set Screw M8 X 10
5 515175410 Sammutuskatkaisin
6 605642628 CONNECTOR - Call your local BRP dealership This part replaces 42603.
7 512059348 Heat throttle handle
8 572100901 Katkaisin suoja
9 414532700 COLLAR - Call your local BRP dealership
10 539902 TORQUE SUPPORT - Call your local BRP dealership
11 2846014 RUBBER GROMMET - Call your local BRP dealership
12 605449240 SLEEVE - Call your local BRP dealership
13 40121 Hex Screw M8x40 DIN933 m8.8Zne(1=10pcs) - Call your local BRP dealership
14 33003 Mutteri M8 DIN934 m8 Zne
15 5446347 Sleeve
17 512059094 PLASTIC NUT - Call your local BRP dealership
18 414753500 Circlip This part replaces 31035.
19 605248305 Engine mount. plate
20 572084400 Käynnistinkahva
21 570127700 RUBBER MOUNT - Call your local BRP dealership
22 512056700 Aluslevy, karkaistu M10
23 20105 Aluslevy M10, karkaistu
24 33012 Laippalukkomutteri M10
25 232006414 Hex. Nut M10 This part replaces 33004.
26 20068 Lock Washer D10 (nord-lock)(1=10pcs
27 512059533 Spark Plug NGK BR9ECS-5
28 605350037 Calibration module
29 278000737 MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
30 710001540 CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736.
31 409207300 Female terminal housing (2 circuits)
32 42609 Female lock (2 circuits)
33 278000632 Female connector
34 732601143 Phillips screw M 2.9 x 16
36 410914600 Plastic Clip, Spark Plug Wire
37 278002198 SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
38 278000237 SPARK PLUG CAP - Call your local BRP dealership
