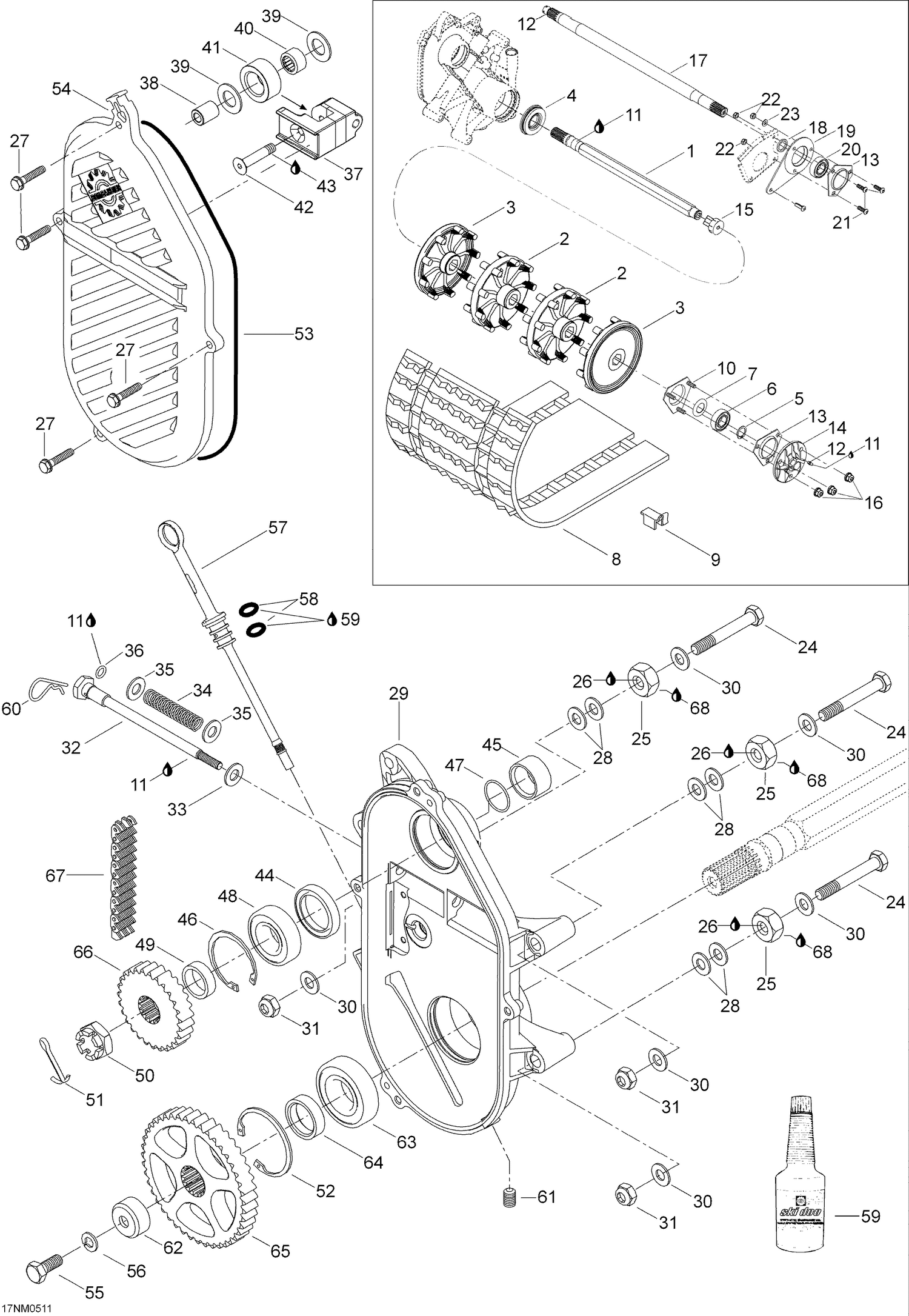

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504151781 |
SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 |
504151782 |
HALF SPROCKET, 9 TEETH - Call your local BRP dealership |
| 4 |
504151918 |
Oil seal |
| 5 |
31001 |
Circlip |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 9 |
415129528 |
Track Guide This part replaces 500003400. |
| 10 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 11 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 12 |
414784800 |
CORK - Call your local BRP dealership |
| 13 |
501025000 |
FLANGE - Call your local BRP dealership |
| 14 |
504152173 |
FLANGE, SPEEDO - Call your local BRP dealership |
| 15 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 17 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 18 |
504149100 |
Spacer |
| 19 |
080044200 |
Casting Spacer |
| 20 |
415129555 |
Ens Roulement Bille*Ball Bearing Kit This part replaces 504152026. |
| 21 |
40344 |
Socket head screw M8 x 25 |
| 22 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 23 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 24 |
40190 |
Hex, screw M10 x 80 |
| 25 |
504083800 |
Spacer |
| 26 |
293800060 |
Loctite 243, 10ml |
| 27 |
40340 |
Socket head screw M6 x 30 |
| 28 |
504073700 |
WASHER - Call your local BRP dealership |
| 29 |
504152062 |
Chaincase |
| 30 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 31 |
33012 |
Elastic stop nut M10 |
| 32 |
504151946 |
Adjusting screw |
| 33 |
503189148 |
Hardened Washer |
| 34 |
504151945 |
SPRING - Call your local BRP dealership |
| 35 |
503125900 |
HARD WASHER - Call your local BRP dealership |
| 36 |
504151954 |
O-RING - Call your local BRP dealership |
| 37 |
504151940 |
Chain tensioner |
| 38 |
504080200 |
SPACER - Call your local BRP dealership |
| 39 |
504080300 |
WASHER - Call your local BRP dealership |
| 40 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 41 |
414531300 |
ROLLER - Call your local BRP dealership |
| 42 |
732601144 |
SCREW - Call your local BRP dealership |
| 43 |
293800005 |
Loctite 271, 10ml |
| 44 |
293200158 |
Oil Seal This part replaces 415049300. |
| 45 |
507031500 |
SPACER - Call your local BRP dealership |
| 46 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 47 |
414876700 |
O-RING - Call your local BRP dealership |
| 48 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 49 |
504147200 |
SHIM - Call your local BRP dealership |
| 50 |
250000012 |
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership |
| 51 |
41003 |
Pin |
| 52 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 53 |
415046400 |
O-ring |
| 54 |
504152471 |
CHAINCASE COVER - Call your local BRP dealership This part replaces 504152027. |
| 55 |
40040 |
Hex. screw M10 x 25 |
| 56 |
20068 |
Lock washer D10 |
| 57 |
504151703 |
FILLER CAP ASS'Y - Call your local BRP dealership |
| 58 |
414969400 |
O-RING - Call your local BRP dealership |
| 59 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 60 |
414575600 |
Hair Pin |
| 61 |
504151921 |
Plug |
| 62 |
504152104 |
CAP - Call your local BRP dealership |
| 63 |
504152005 |
Ball bearing |
| 64 |
504152058 |
Sleeve |
| 66 |
504085300 |
SPROCKET, LARGE, 26 TEETH - Call your local BRP dealership |
| 67 |
504151856 |
DRIVE CHAIN LARGE, 76 LINKS - Call your local BRP dealership |
