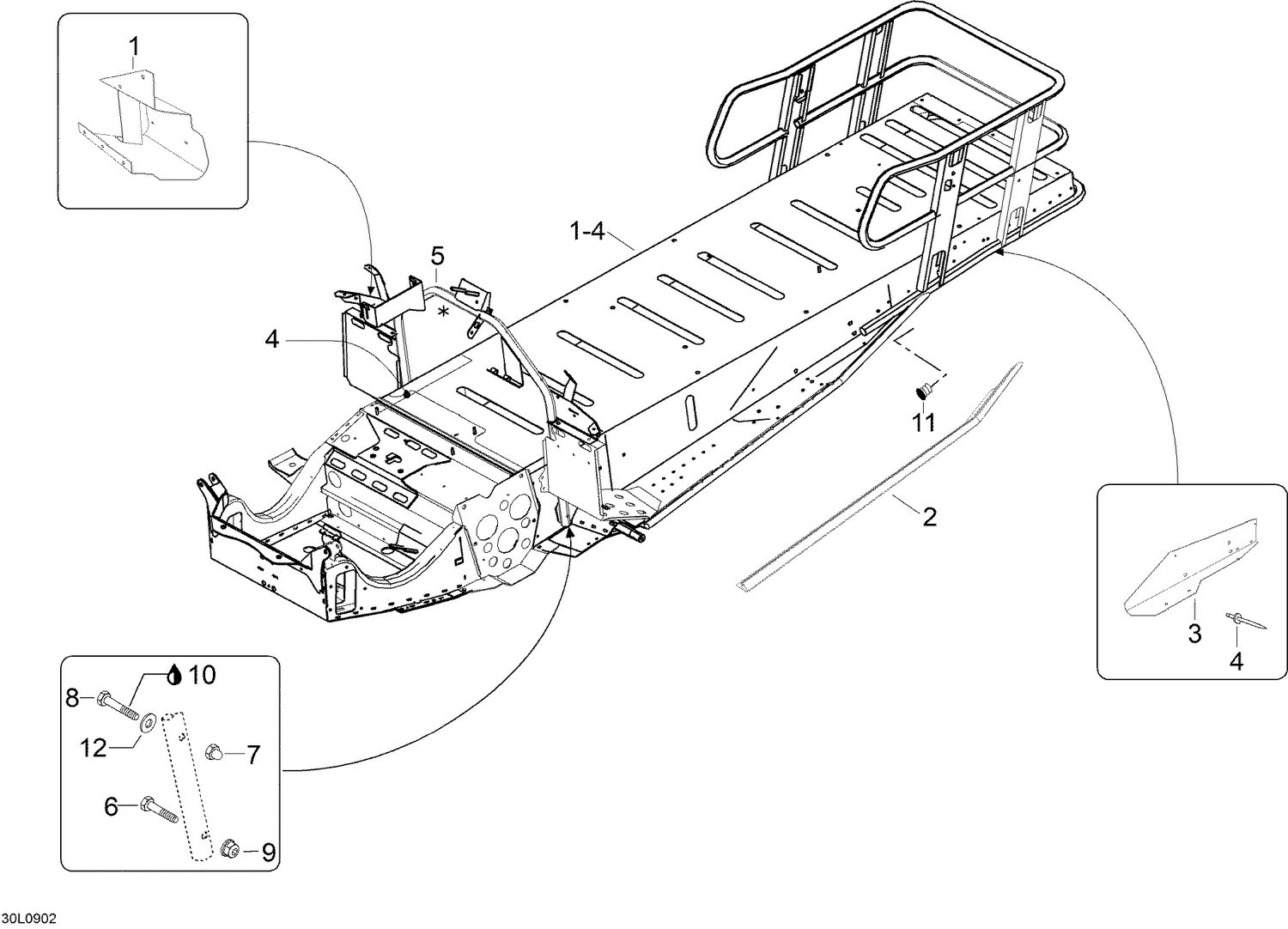

| Ref | Part Number | Description |
|---|
| 1 |
605350839 |
RH Toe Rest |
| 1 |
605350840 |
LH TOE REST - Call your local BRP dealership |
| 2 |
605250773 |
LH REINFORCEMENT - Call your local BRP dealership |
| 2 |
605250774 |
RH REINFORCEMENT - Call your local BRP dealership |
| 3 |
605350845 |
LH CONER SUPPORT - Call your local BRP dealership |
| 3 |
605350846 |
RH Coner Support |
| 4 |
Not |
Available As Spare Part - Rivet |
| 5 |
605151693 |
Steering Support |
| 6 |
M40003 |
Hex. Screw |
| 7 |
232061414 |
Hex. Nut M6 |
| 8 |
207064044 |
Hex. Screw M6 X 40 |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
M28210 |
Plug |
