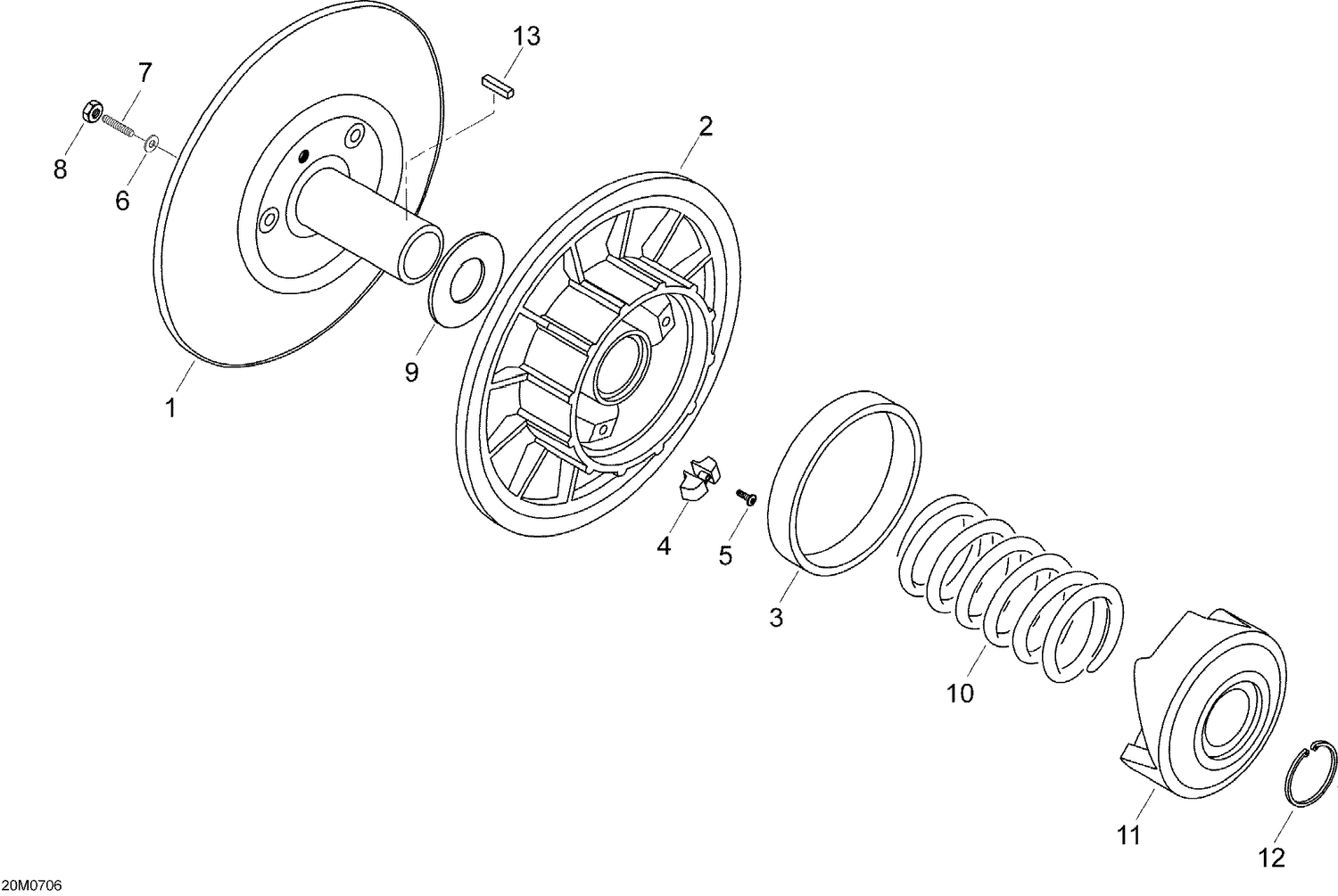

| Ref | Part Number | Description |
|---|
| 1 |
M140065 |
FIXED FLANGE - Call your local BRP dealership |
| 3 |
417126308 |
BUSHING - Call your local BRP dealership |
| 4 |
140068 |
Cam Slide Shoe This part replaces M140068. |
| 5 |
619100006 |
HEX. SCREW SET - Call your local BRP dealership |
| 6 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
619100003 |
Hex. socket set screw - Call your local BRP dealership |
| 8 |
232061414 |
Hex. Nut M6 |
| 9 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 10 |
M140056 |
RELEASE SPRING - Call your local BRP dealership |
| 11 |
M140067 |
Cam 40/30 Degr. |
| 12 |
371903100 |
CIRCLIP - Call your local BRP dealership |
