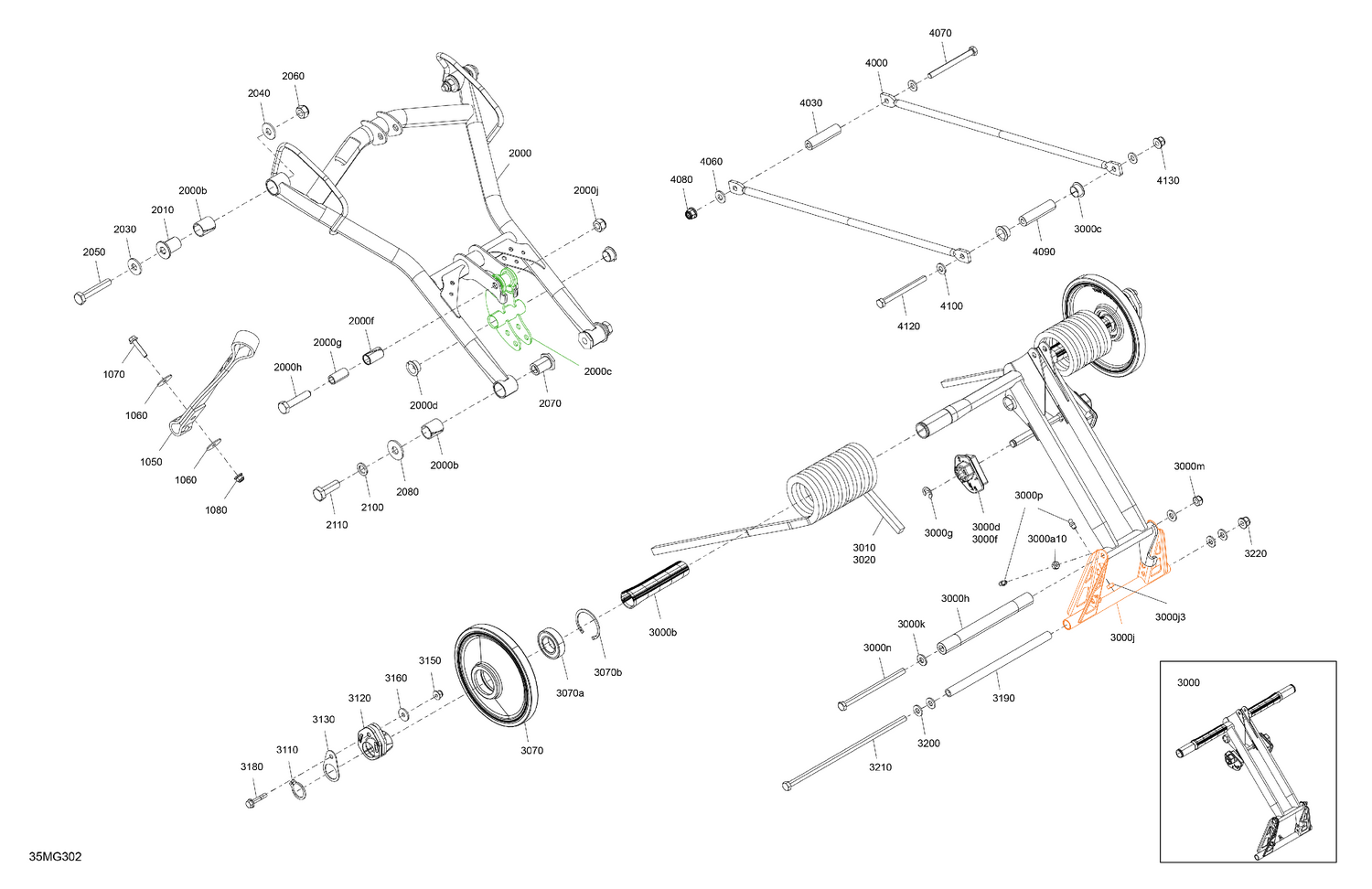

05- Suspension - Rear - Upper Section
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503195313 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 503192531 | Rocker |
| 2000d | 503191555 | Swivel Bushing |
| 2000f | 503193037 | Bushing |
| 2000g | 503189282 | Bushing |
| 2000h | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000j | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503197934 | Axe |
| 2030 | 503191926 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503193716 | Lower Axle |
| 2080 | 250200113 | Flat Washer, 12 mm |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000a10 | 232061404 | Hexagonal Nut M6 |
| 3000b | 503193218 | Bushing |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191565 | LH Cam Adjuster |
| 3000f | 503191566 | RH Cam Adjuster |
| 3000g | 293370013 | E-Circlip |
| 3000h | 503144300 | Upper Axle, Pivot Arm |
| 3000j3 | 232061404 | Hexagonal Nut M6 |
| 3000k | 503192494 | Washer |
| 3000m | 232581414 | Hex. Elastic Stop Nut M8 |
| 3000n | 250001236 | Hex Screw M8 X 125 |
| 3000p | 408200700 | Grease Fitting |
| 3010 | 503192271 | Black, LH Spring Square |
| 3020 | 503192270 | Black, RH Spring Square |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3110 | 293370186 | External Retaining Ring |
| 3120 | 503196322 | Suspension Support |
| 3130 | 503197970 | Retaining Plate |
| 3150 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 3160 | 224061201 | Flat Washer |
| 3180 | 250001219 | Hex Flange Screw M6 X 31 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503197211 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
