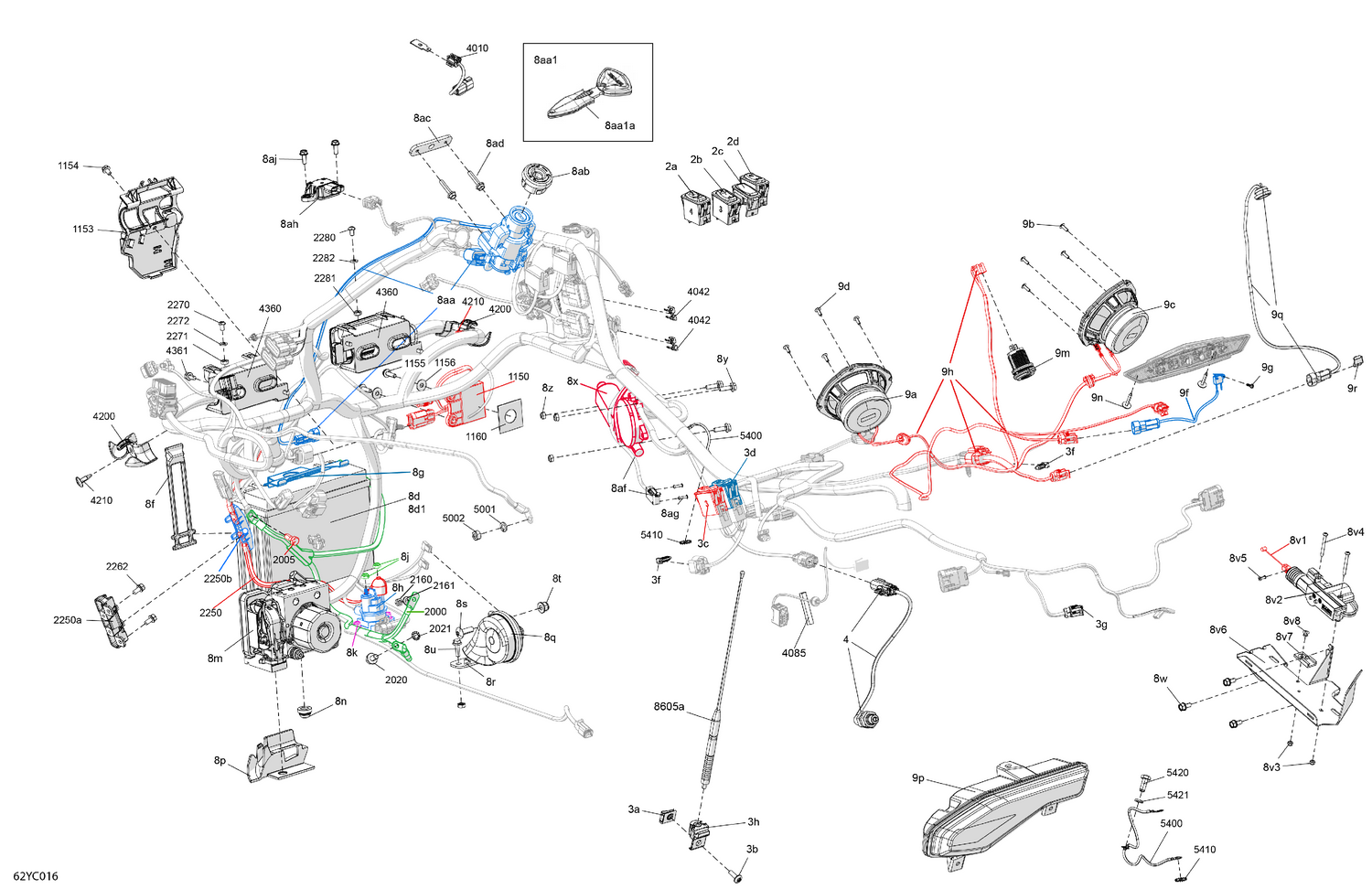

08- Electric - System
Parts (93)
| Ref | Part Number | Description |
|---|---|---|
| 2a | 710007705 | Windshield Switch |
| 2b | 710007706 | Heated Grip Switch |
| 2c | 517306808 | Switch Hole Cap |
| 2d | 710007707 | Heated Seat Switch |
| 3a | 250100208 | Panel Nut M6 X 1.0 |
| 3b | 250000722 | Torx Screw M6 X 20 |
| 3c | 710007706 | Heated Grip Switch |
| 3d | 710007707 | Heated Seat Switch |
| 3f | 710002033 | Connector Holder |
| 3g | 710002033 | Connector Holder |
| 3h | 708301797 | Antenna Support |
| 4 | 219800558 | Switch Brake Kit This part replaces 710008326. |
| 8aa1a | 710003597 | Key Sleeve |
| 8ab | 710003594 | Switch Cover |
| 8ac | 710001365 | Switch Support |
| 8ad | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 8af | 710001379 | Brake Pressure Switch Ass'y |
| 8ag | 293150150 | Pop Rivet |
| 8ah | 710005658 | Yaw Rate Sensor |
| 8aj | 210261650 | Hex. Flange Screw M6 X 16 |
| 8d1 | 219800542 | Battery Bolt Kit |
| 8f | 520000528 | Latch |
| 8g | 710002893 | Battery Holder |
| 8h | 278003012 | Starter Relay |
| 8j | 232561600 | Hex. Elastic Stop Nut M6 |
| 8k | 233261466 | Hex. Flange Elastic Nut M6 |
| 8m | 219800502 | VCM Wet Prog & Grommet Module Kit |
| 8n | 710003279 | Shock Damper |
| 8p | 710003996 | VCM Harness Protector |
| 8q | 710004940 | Horn |
| 8r | 710005769 | Horn Support |
| 8s | 250000874 | Torx Truss M8 X 25 |
| 8t | 233281414 | Hex. Flange Elastic Nut M8 |
| 8u | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 8v1 | 710002889 | Reverse Cable |
| 8v2 | 710011269 | Actuator |
| 8v3 | 232541414 | Elastic Stop Nut M4 |
| 8v4 | 205444056 | Socket Head Screw M4 X 40 |
| 8v5 | 390403000 | Pop Rivet 5/32 |
| 8v6 | 710005642 | Reverse Actuator Support |
| 8v7 | 270000141 | Clip |
| 8v8 | 390402400 | Pop Rivet 3/16" |
| 8w | 210261250 | Hex. Flange Screw M6 X 12 |
| 8x | 710007256 | Actuator Motor |
| 8y | 207662054 | Hex. Flange Screw M6 X 20 |
| 8z | 232561434 | Elastic Stop Nut M6 |
| 9a | 710005433 | Haut-Parleur 4.5" |
| 9b | 250001131 | Torx Truss PT K40 x 12 |
| 9c | 710005433 | Haut-Parleur 4.5" |
| 9d | 250001131 | Torx Truss PT K40 x 12 |
| 9f | 710005315 | Open Detection |
| 9g | 250000614 | Screw-pt.flange Oval Hd.k30 X 12 |
| 9h | 710008257 | Upper Rear Box Wiring Harness |
| 9m | 219400510 | USB Outlet |
| 9n | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 9p | 520001785 | Non-fonctional Rear Tail-light |
| 9q | 710001533 | Trunk Light |
| 9r | 409210100 | Clip Bracket Connector (edge) |
| 1150 | 710004916 | Dess Module |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062410 | Flat Washer 6 mm |
| 1160 | 293830091 | Rubber Bumper |
| 2000 | 710008074 | Pos Cable |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 232561434 | Elastic Stop Nut M6 |
| 2161 | 234061600 | Stainless Flat Washer M6 |
| 2250a | 710008098 | Fuse Holder Support |
| 2250b | 710008154 | Fuse Holder Cover |
| 2262 | 210261250 | Hex. Flange Screw M6 X 12 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 4010 | 710006986 | Diagnostic Harness |
| 4042 | 710001222 | Lock |
| 4085 | 219704354 | Trim 1000Mm Long |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 5001 | 234181601 | Lock Washer 8 mm, Stainless |
| 5002 | 232081414 | Hex. Nut M8 |
| 5400 | 710004849 | Tank Cable |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5420 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5421 | 250200111 | Washer |
| 8605a | 710005434 | Antenna |
