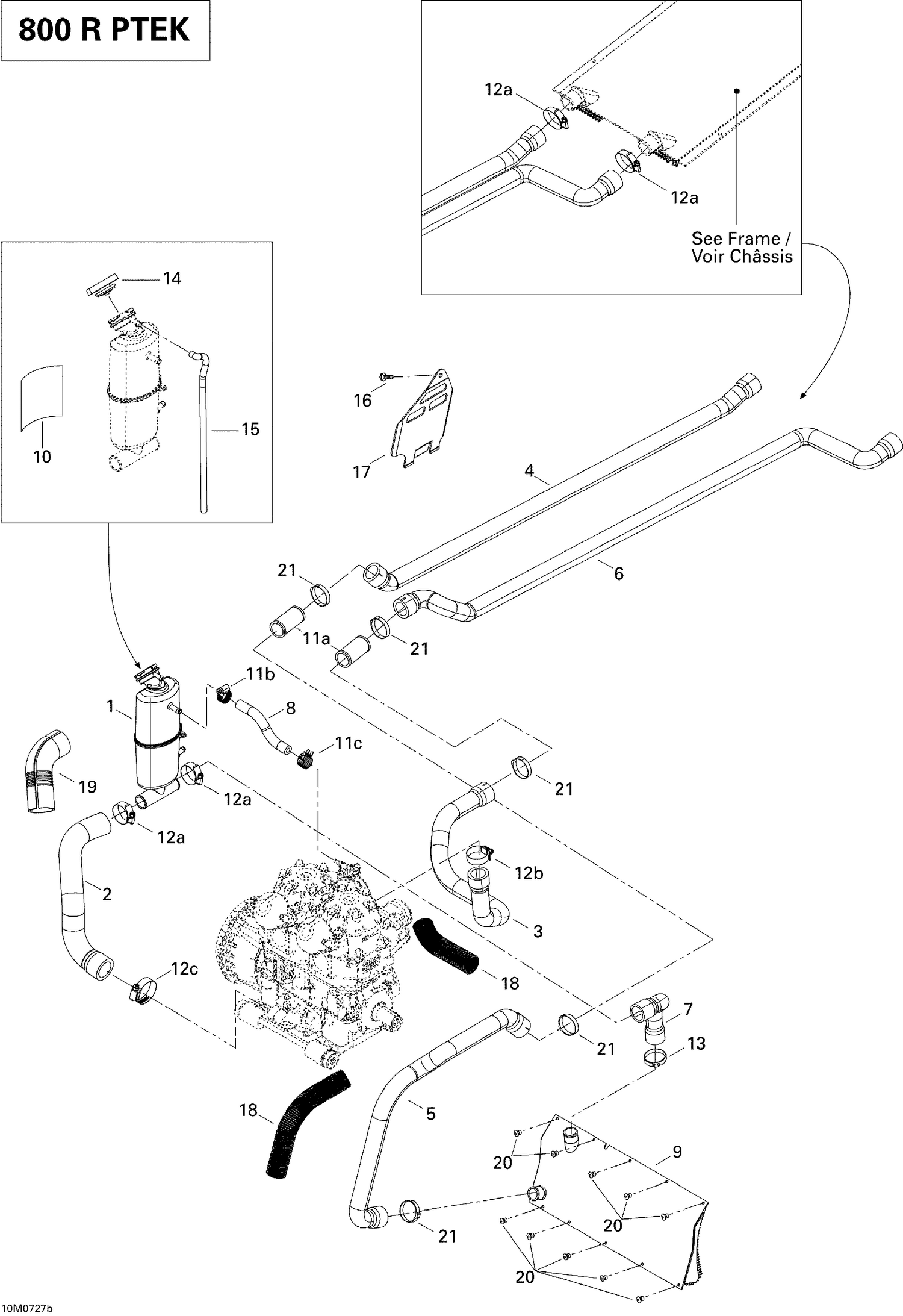

| Ref | Part Number | Description |
|---|
| 1 |
509000409 |
COOLANT TANK - Call your local BRP dealership |
| 2 |
509000379 |
HOSE - Call your local BRP dealership |
| 3 |
509000215 |
ENGINE FRONT OUTLET HOSE - Call your local BRP dealership |
| 4 |
509000307 |
REAR RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 5 |
509000216 |
FRONT RADIATOR INTAKE HOSE - Call your local BRP dealership |
| 6 |
509000308 |
ENGINE REAR HOSE OUTLET - Call your local BRP dealership |
| 7 |
509000266 |
RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 8 |
509000093 |
Hose 8 mm |
| 9 |
518323903 |
FRONT RADIATOR - Call your local BRP dealership |
| 10 |
509000190 |
REFECTIVE SHEET - Call your local BRP dealership |
| 11a |
509000224 |
Fitting |
| 11b |
293650170 |
Tridon Gear Clamp |
| 11c |
414655700 |
Spring Clamp |
| 12a |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 12b |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 12c |
509000352 |
ABA GEAR CLAMP - Call your local BRP dealership |
| 13 |
509000181 |
Oetiker Gear Clamp |
| 14 |
509000187 |
Pressure Cap |
| 15 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 16 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 17 |
509000257 |
DEFLECTOR - Call your local BRP dealership |
| 18 |
219704402 |
Tubing 25 MM 1000MM Long |
| 19 |
219704428 |
Tubing 35 MM 1000MM Long |
| 20 |
390909100 |
Avex Rivet |
