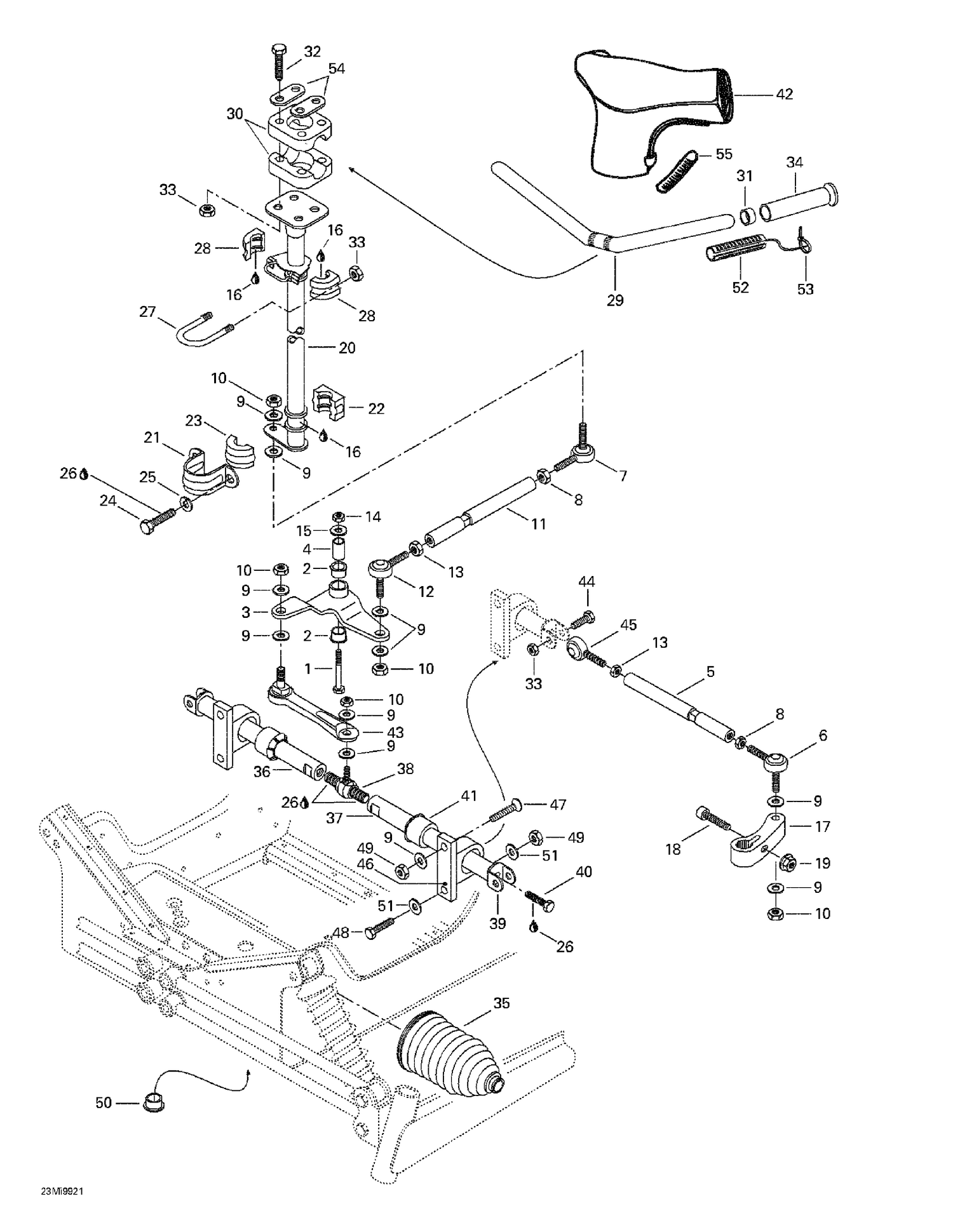

| Ref | Part Number | Description |
|---|
| 1 |
207026544 |
Hex. Screw M12 x 65 |
| 2 |
415041100 |
CUSHION - Call your local BRP dealership |
| 3 |
506145700 |
Pivot Arm |
| 4 |
415038000 |
Pivot |
| 5 |
506140400 |
Tie-Rod |
| 6 |
506151491 |
Ball Joint This part replaces 415012400. |
| 7 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 8 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 9 |
503175800 |
Washer |
| 10 |
232501416 |
Elastic Flange Nut M10 This part replaces 732610042. |
| 11 |
506146100 |
Tie-Rod |
| 12 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 13 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 14 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 15 |
506136400 |
FLAT WASHER - Call your local BRP dealership |
| 16 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 17 |
506145800 |
RH STEERING ARM - Call your local BRP dealership |
| 18 |
222983565 |
Allen Screw M8 x 35 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 20 |
506151127 |
Main Tube |
| 21 |
517126200 |
Retainer Support |
| 22 |
572064400 |
Bushing |
| 23 |
572064500 |
BUSHING - Call your local BRP dealership |
| 24 |
207182044 |
Hex. Screw M8 X 20 |
| 25 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 26 |
293800005 |
Loctite 271, 10 ml |
| 27 |
506060600 |
U-clamp |
| 28 |
572067100 |
HALF-BUSHING - Call your local BRP dealership |
| 29 |
506125900 |
Handlebar |
| 30 |
277000142 |
STEERING CLAMP - Call your local BRP dealership |
| 31 |
572081900 |
HANDLEBAR END - Call your local BRP dealership |
| 32 |
207085544 |
Hex. Screw M8 X 55 This part replaces 222085565. |
| 33 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 34 |
506151530 |
RH Grip 6-1/2" This part replaces 572100500. |
| 35 |
570068300 |
TIE-ROD CAP - Call your local BRP dealership |
| 36 |
506139500 |
Sliding Bar (Short) |
| 37 |
506139600 |
Sliding Bar (Long) |
| 38 |
415053300 |
Ball Joint (Double) |
| 39 |
506138300 |
Bracket |
| 40 |
207102544 |
Hex. Screw M10 X 25 This part replaces 222002565. |
| 41 |
572108500 |
Cushion |
| 42 |
572084100 |
Steering Padding |
| 43 |
415063700 |
Ball Joint Lever |
| 44 |
207084044 |
Hex. Screw M8 X 40 This part replaces 222084065. |
| 45 |
415048600 |
LH Ball Joint |
| 46 |
506148800 |
Sliding Bar Guide |
| 47 |
222907065 |
Socket Head Screw M10 x 70 |
| 48 |
207007544 |
Hex. Screw M10 x 75 |
| 49 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 50 |
415067700 |
Cap |
| 51 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 52 |
515175573 |
Heating Grip This part replaces 410110000. |
| 53 |
414115200 |
Tie-Rap 180 mm |
| 54 |
709400509 |
Stiffner This part replaces 506151196. |
| 506145900 |
Bras |
De Direction GA - Appelez votre concessionnaire BRP local 506145900 |
| 506145900 |
LH |
STEERING ARM - Call your local BRP dealership 506145900 |
