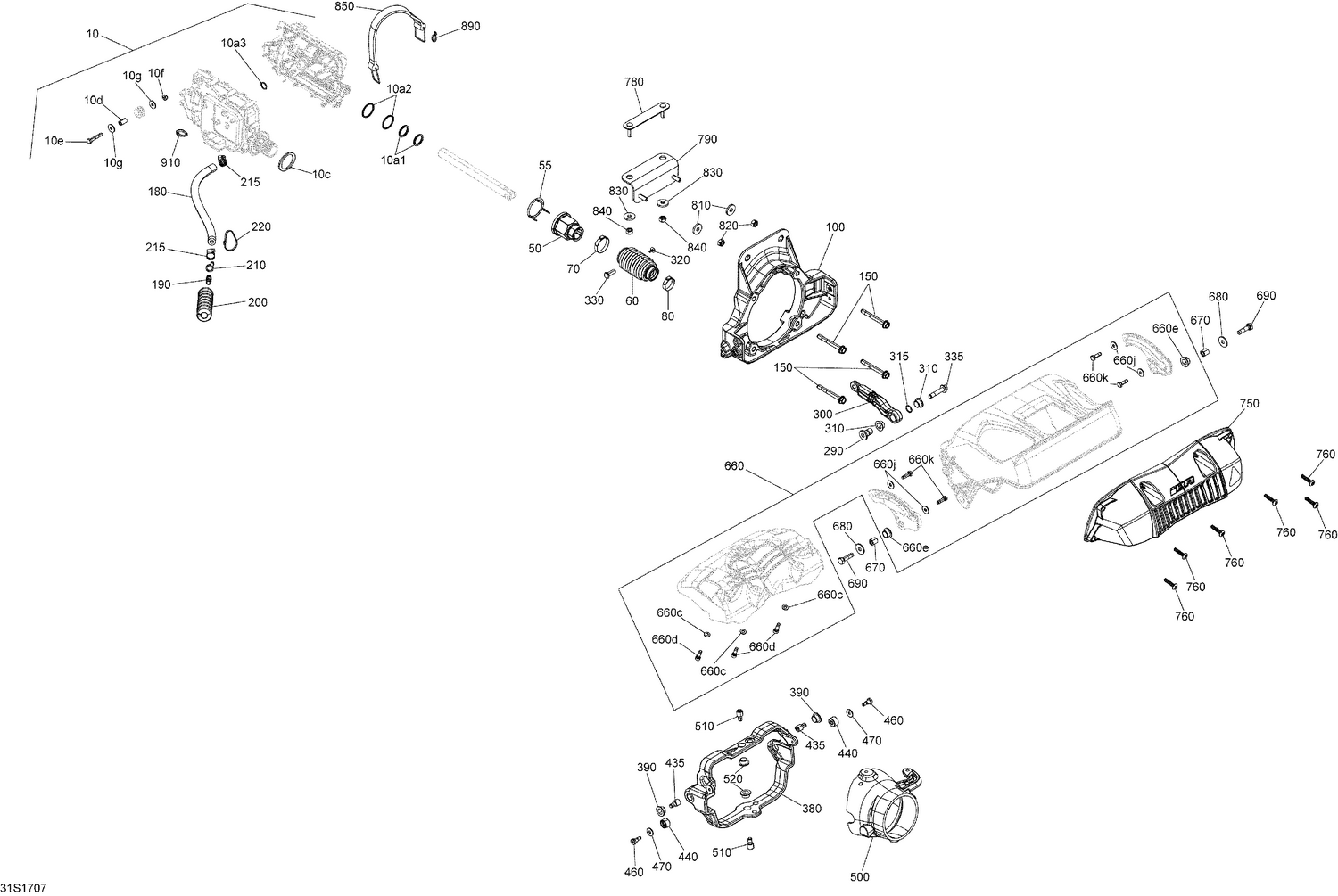

05- Reverse - All Models
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 279000108 | O-Ring |
| 10a2 | 293300107 | O-Ring |
| 10a3 | 293300187 | O-Ring |
| 10c | 268000208 | Gasket |
| 10d | 271001020 | Spacer |
| 10e | 207063560 | Hex. Screw M6 X 35 |
| 10f | 232561200 | Brass Elastic Stop Nut M6 |
| 10g | 234062600 | Flat Washer M6, Stainless |
| 50 | 268000308 | IBR Nut This part replaces 268000267. |
| 55 | 277001977 | Rubber Gasket |
| 60 | 268000186 | Boot |
| 70 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 80 | 293650099 | Crimp Clamp |
| 100 | 268000266 | Bracket |
| 150 | 250000835 | Screw-Hex.Flange DIN.6921 S.Grip |
| 180 | 219704420 | Was 509000407 Hose 8 mm |
| 190 | 293710157 | Fitting-Straig |
| 200 | 268000211 | Inner Boot |
| 210 | 293750002 | Tie Wrap 142 mm |
| 215 | 293650171 | Tridon Gear Clamp |
| 220 | 293750002 | Tie Wrap 142 mm |
| 290 | 268000269 | Bushing |
| 300 | 268000256 | Linkage Arm |
| 310 | 293900007 | Venturi Bushing |
| 315 | 293300187 | O-Ring |
| 320 | 250000565 | Hexalob Screw M4 X 10 |
| 330 | 268000309 | Shoulder Pin This part replaces 268000207. |
| 335 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip |
| 380 | 268000247 | Trimming Ring |
| 390 | 293900007 | Venturi Bushing |
| 435 | 250000837 | Screw Socket S.Grip |
| 440a | 250000775 | Screw-Socket Shoulder M8X8 |
| 460 | 250000775 | Screw-Socket Shoulder M8X8 |
| 470 | 234062600 | Flat Washer M6, Stainless |
| 500 | 267000732 | Black Jet Pump Nozzle |
| 510 | 250000837 | Screw Socket S.Grip |
| 520 | 293900007 | Venturi Bushing |
| 660c | 234061600 | Stainless Flat Washer M6 |
| 660d | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 660e | 293900007 | Venturi Bushing |
| 660j | 234062600 | Flat Washer M6, Stainless |
| 660k | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 670 | 271001039 | Spacer |
| 680 | 234082600 | Flat Washer 8 mm, Stainless |
| 690 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 750 | 268000162 | Guard |
| 760 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 780 | 268000271 | Ass'y Bracket |
| 790 | 268000304 | Reverse Bracket |
| 810 | 279000336 | Flat Washer This part replaces 279000164. |
| 820 | 232581200 | Hex. Elastic Nut M8 Brass |
| 830 | 279000336 | Flat Washer This part replaces 279000164. |
| 840 | 232581200 | Hex. Elastic Nut M8 Brass |
| 850 | 293850095 | Fuel Tank Strap |
| 890 | 293750001 | Tie Wrap 94 mm |
