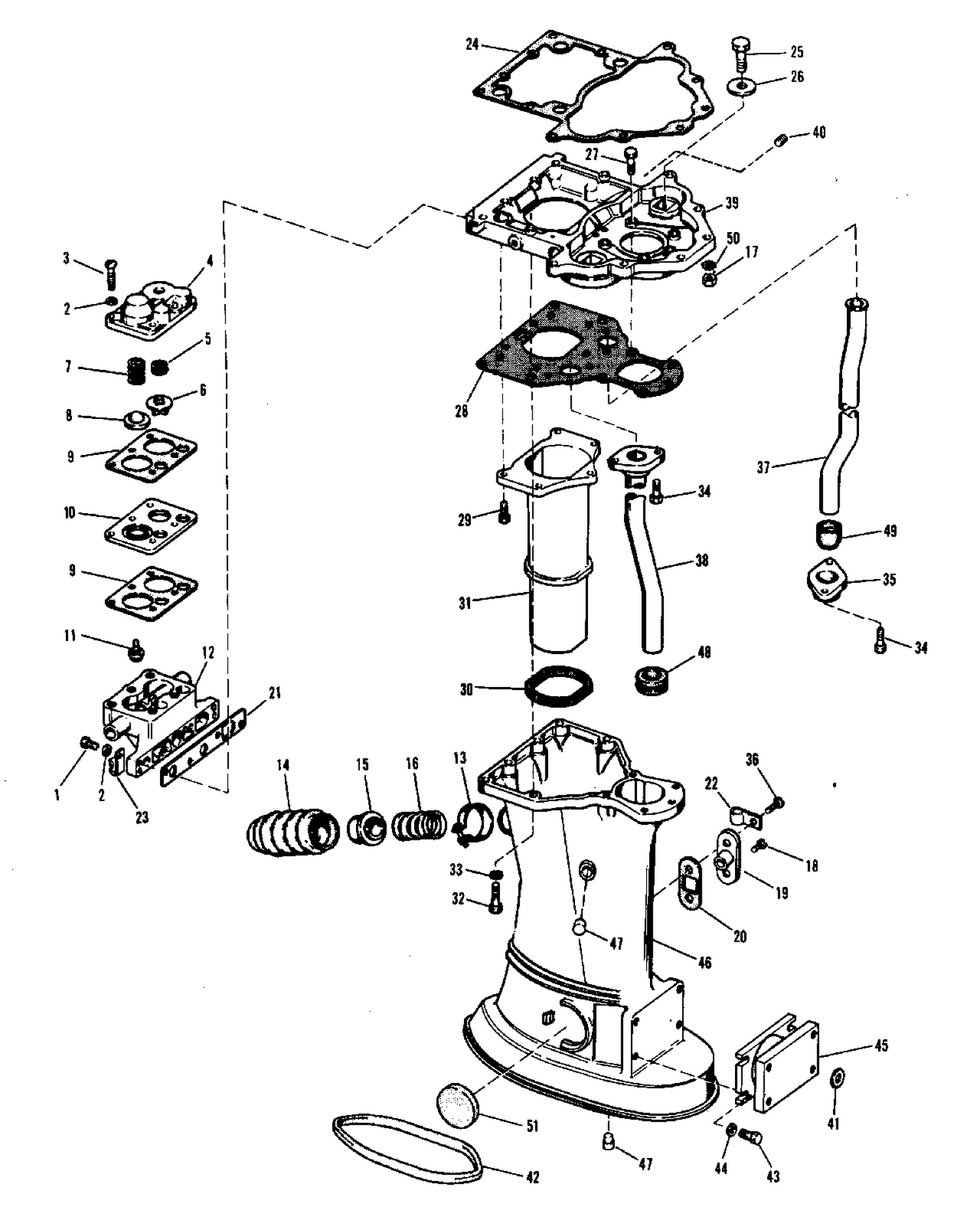

| Ref | Part Number | Description |
|---|
| 3 |
0330184 |
VIS, montage pompe This part replaces 0306259. |
| 4 |
0305710 |
COVER |
| 5 |
0305587 |
SPRING, Check valve |
| 6 |
0305654 |
CHECK VALVE |
| 7 |
0305591 |
SPRING, Vernathem valve |
| 8 |
0308070 |
VALVE |
| 9 |
0305586 |
GASKET |
| 10 |
0305711 |
PLATE, Termostat housing |
| 11 |
0377276 |
VERNATHERM |
| 12 |
0377326 |
HOUSING THERMOSTAT |
| 13 |
0305536 |
CLAMP, Boot |
| 14 |
0305402 |
BOOT, Exhaust relief |
| 15 |
0305403 |
RETAINER, Relief spring |
| 16 |
0305397 |
SPRING, Exhaust relief |
| 17 |
0306320 |
NUT |
| 18 |
0307522 |
SCREW, Cover plate |
| 19 |
0303862 |
COVER PLATE, Extension LONG SHAFT MODELS |
| 20 |
0304023 |
GASKET, Cover plate |
| 21 |
0305589 |
GASKET, Housing to adaper |
| 23 |
0310503 |
CLAMP |
| 24 |
0309956 |
GASKET, Adapter to h ead |
| 26 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 27 |
0329894 |
SCREW This part replaces 0302510. |
| 28 |
0312837 |
GASKET |
| 30 |
0305152 |
GASKET, Inner to outer exhaust tube |
| 31 |
0305062 |
EXHAUST TUBE |
| 35 |
0305181 |
COUPLING, Flange |
| 37 |
0313474 |
TUBE, Water, inlet |
| 38 |
0313475 |
TUBE, Water, return |
| 39 |
0381406 |
ADAPTER ASSEMBLY |
| 40 |
0310221 |
CORE PLUG |
| 41 |
0312454 |
SPACER, Lower front mount |
| 42 |
0305314 |
RING,Exhaust tube seal |
| 43 |
0302863 |
SCREW, Base to adaptor |
| 45 |
0377972 |
MOUNT, Lower front |
| 46 |
0382496 |
EXHAUST HOUSING ASSY |
| 47 |
0312275 |
PLUG |
| 48 |
0311522 |
GROMMET, Water tube |
| 49 |
0305145 |
GROMMET |
| 50 |
0306799 |
L'WASHER,Bracket to hsg. |
