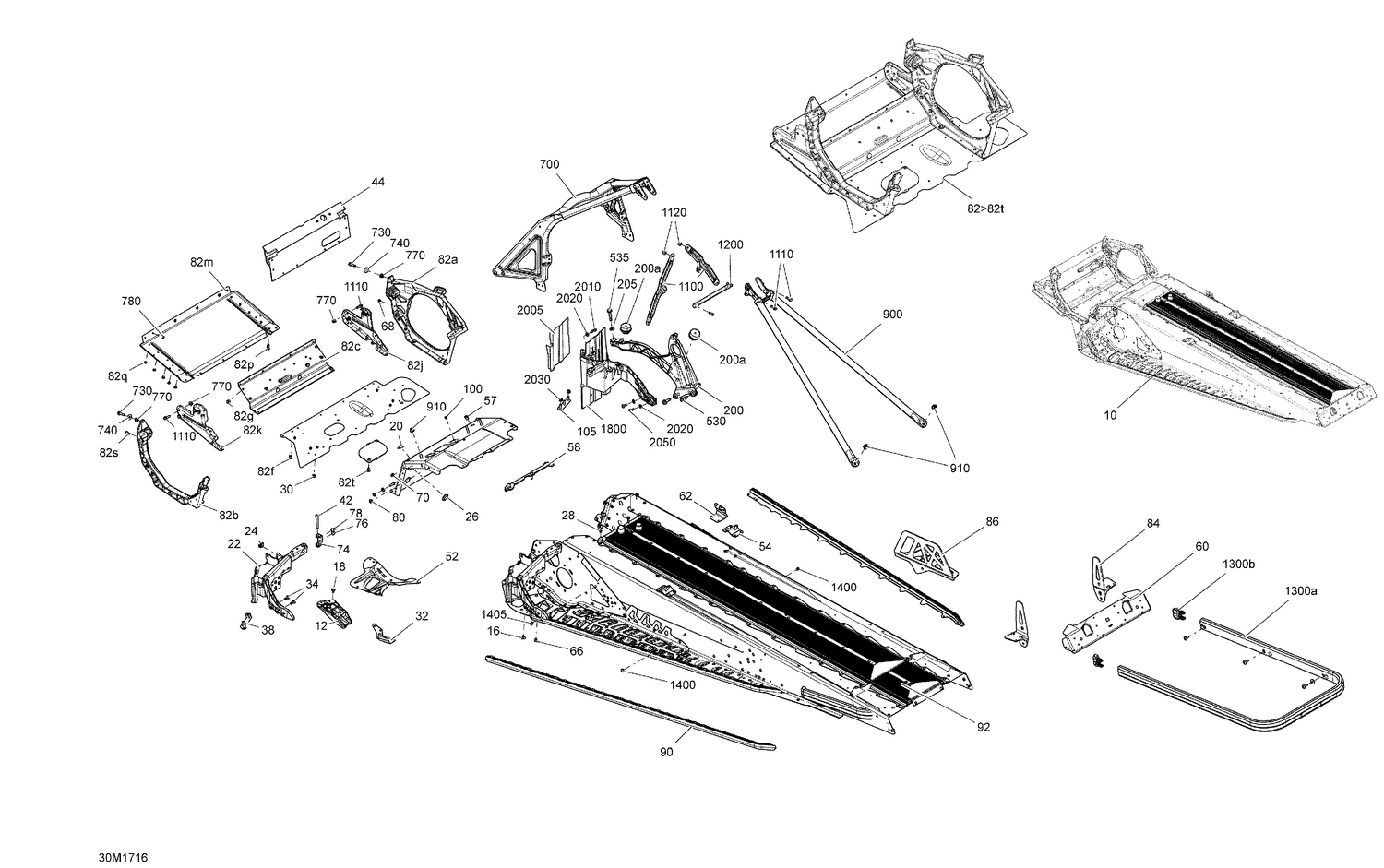

| Ref | Part Number | Description |
|---|
| 12 |
518325782 |
RH Deflector, Black Polypropylene |
| 12 |
518325783 |
LH Deflector, Black Polypropylene |
| 16 |
293150104 |
Pop Rivet 3/16" |
| 18 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 20 |
518325560 |
Adhesive Patch |
| 22 |
518326820 |
LH Stirup |
| 24 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 26 |
293730052 |
Black, Plug |
| 28 |
293150203 |
Rivet Avibulb 3/16 |
| 30 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 32 |
518326960 |
Support |
| 34 |
250000536 |
Tork Screw M6 X 18 |
| 38 |
518326986 |
Attach |
| 42 |
250000535 |
Torx Screw M8 X 55 |
| 44 |
518326140 |
Engine Support |
| 52 |
518324874 |
RH Reinforcement |
| 52 |
518324875 |
LH Reinforcement |
| 54 |
518325973 |
RH Rear Base |
| 54 |
518325974 |
LH Rear Base |
| 57 |
293450275 |
Insert |
| 58 |
518326656 |
Seal |
| 60 |
518327105 |
Rear Cap |
| 62 |
518326482 |
RH Support |
| 66 |
390909100 |
Avex Rivet |
| 68 |
293150144 |
Stavex Rivet |
| 70 |
293150146 |
Henrob Rivet |
| 74 |
518326961 |
U-Attach |
| 76 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 78 |
250000534 |
Tork Screw M6 X 16 |
| 80 |
233061414 |
Hex. Flange Nut M6 |
| 82a |
518326328 |
RH Side Member |
| 82b |
518326330 |
LH Side Member |
| 82c |
518326198 |
Front Member |
| 82f |
293150120 |
Hemlock Rivet 6.5 mm |
| 82g |
293150119 |
Hemlock Rivet, 6.5 mm |
| 82j |
518325949 |
RH Front Member |
| 82k |
518325950 |
LH Front Member |
| 82m |
518325951 |
Front Bottom Plate |
| 82p |
293150182 |
Monobolt Rivet 6.4 |
| 82q |
390909200 |
Avex Rivet |
| 82s |
210261650 |
Hex. Flange Screw M6 X 16 |
| 82t |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 100 |
390402400 |
Pop Rivet 3/16" |
| 105 |
518326550 |
Retaining Plate |
| 200a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 205 |
234281474 |
Conical Spring Washer M8 |
| 530 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 535 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 700 |
518326557 |
Front Member, S Module |
| 730 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 740 |
224061201 |
Flat Washer |
| 770 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 780 |
390402200 |
Pop Rivet 3/16" |
| 900 |
518326559 |
Rear Member |
| 910 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1100 |
518326848 |
Upper Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518326355 |
Center Column Support |
| 1300b |
520000711 |
Full Moon RH Cap |
| 1300b |
520000712 |
Full Moon LH Cap |
| 1400 |
293730041 |
Full Moon Dart 8 mm |
| 1405 |
293730059 |
Full Moon Dart 10 mm |
| 1800 |
518326472 |
Battery Support |
| 2005 |
514054755 |
HEAT SHIELD - Call your local BRP dealership |
| 2010 |
210262040 |
Hex. Flange Screw M6 X 20 |
| 2020 |
250200039 |
Flat Washer |
| 2030 |
232561414 |
Elastic Stop Nut M6 |
