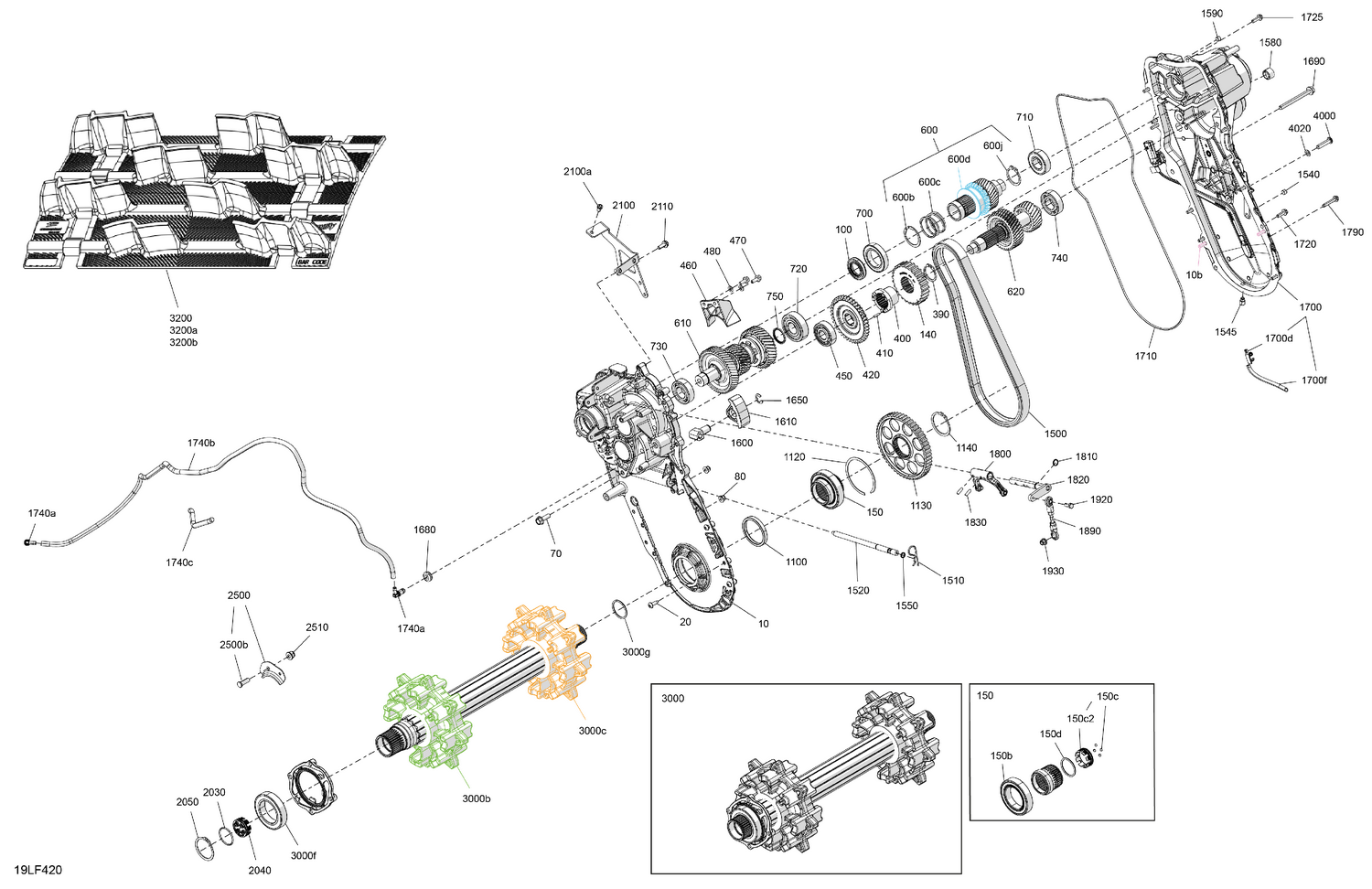

04- Drive - System
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250400068 | Dowel Pin |
| 20 | 250001213 | Socket Head Screw M6 X 18 |
| 70 | 250001016 | Hex Flanged Screw M8 X 25 S.Grip |
| 80 | 233261434 | Flanged Elastic Nut M6 |
| 100 | 293200168 | Oil Seal |
| 140 | 504153666 | Sprocket 27 Teeth |
| 150b | 293350142 | Ball Bearing |
| 150c2 | 504154043 | Cap |
| 150d | 293300291 | O-Ring Seal |
| 390 | 293370133 | External Snap Ring |
| 400 | 504153650 | Sleeve Coupling |
| 410 | 570048600 | Alignement Rod |
| 420 | 504154003 | Gear Straight 41 Teeth Ass'y |
| 450 | 293350131 | Ball Bearing |
| 460 | 504153793 | Oil Deflector |
| 470 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 480 | 234061410 | Flat Washer 6 mm |
| 600b | 293370055 | Circlip |
| 600c | 504153690 | Spring Return |
| 600d | 504153502 | Sliding Gear 27 Teeth Machined |
| 600j | 293370183 | External Retaining Ring |
| 610 | 504154990 | Gearbox Shaft |
| 620 | 504154127 | Shaft Gearbox Out Ass'y |
| 700 | 293350053 | Ball Bearing |
| 710 | 293350115 | Ball Bearing |
| 720 | 293350117 | Ball Bearing |
| 730 | 504153165 | Ball Bearing |
| 740 | 504153165 | Ball Bearing |
| 750 | 504154145 | Cap |
| 1100 | 293200159 | Oil Seal |
| 1120 | 504152582 | Circlip |
| 1130 | 504153998 | Sprocket 53 Teeth |
| 1140 | 504152572 | Circlip |
| 1500 | 504152579 | Drive Chaine, 102 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153627 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug |
| 1545 | 504153704 | Magnetic Plug |
| 1550 | 293300202 | O-Ring |
| 1580 | 267001113 | Nylon Plug |
| 1590 | 250500013 | Hex. Countersunk Drain Plug |
| 1600 | 504154577 | Chain Tensioner |
| 1610 | 504153312 | Chain Slider |
| 1650 | 293370105 | Circlip |
| 1680 | 414036300 | Grommet |
| 1690 | 207588544 | Hex. Flange Screw M8 X 85, Scotch Grip |
| 1700d | 515178223 | Clip Connector |
| 1700f | 415130141 | Sleeve |
| 1710 | 293300288 | O-Ring Seal |
| 1720 | 250001153 | Flanged Hex. Screw M6X20 |
| 1725 | 250001153 | Flanged Hex. Screw M6X20 |
| 1740a | 414580700 | Male Connector |
| 1740b | 219704410 | Hose |
| 1740c | 515179201 | Heat Shield |
| 1790 | 250001015 | Flanged Hex. Screw M6 X 35 |
| 1800 | 504154097 | Fork Ass'y |
| 1810 | 293300202 | O-Ring |
| 1820 | 504154099 | Reverse Axle |
| 1830 | 250400045 | Spring Pin M5 X 16 |
| 1890 | 504153658 | Ball Joint |
| 1920 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 1930 | 233261434 | Flanged Elastic Nut M6 |
| 2030 | 293300201 | O-Ring |
| 2040 | 504154043 | Cap |
| 2050 | 504152572 | Circlip |
| 2100a | 293450268 | Insert M5 X 0.8 |
| 2110 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 2500b | 250300028 | Clinch Stud, M8 X 25 |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000b | 504154910 | LH Sprocket Wheel 8 Teeth |
| 3000c | 504154911 | RH Sprocket Wheel 8 Teeth |
| 3000f | 293350059 | Ball Bearing |
| 3000g | 293300291 | O-Ring Seal |
| 3200a | 415130661 | Clip |
| 3200b | 504152651 | Cleat |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
