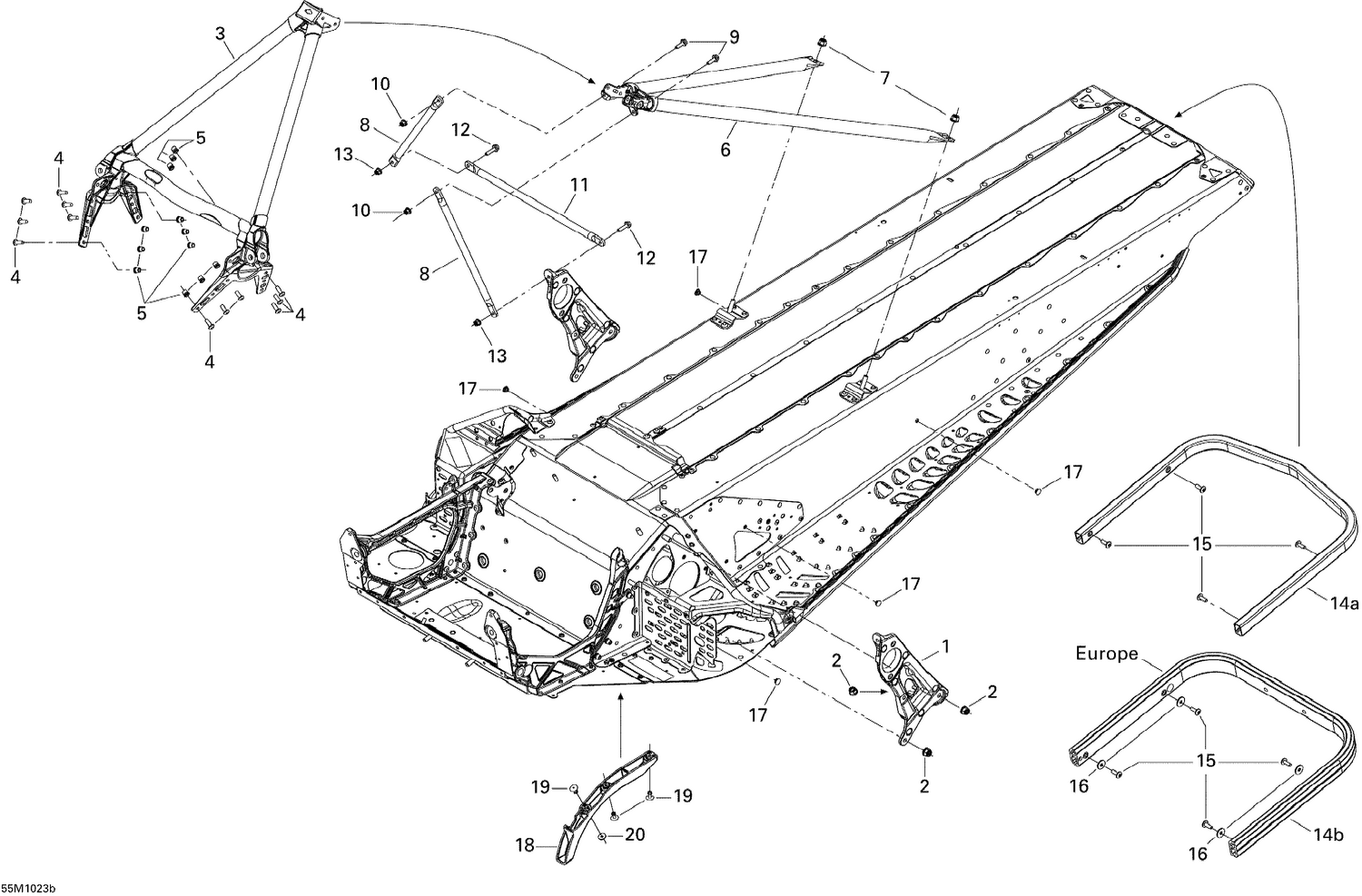

| Ref | Part Number | Description |
|---|
| 1 |
518328346 |
Pulley Support This part replaces 518325934. |
| 2 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3 |
518326975 |
Front Member This part replaces 518325554. |
| 4 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 6 |
518326559 |
Rear Member This part replaces 518325927. |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
518325114 |
Upper Lateral Column Support |
| 9 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
518325115 |
Center Column Support |
| 12 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 17 |
293730041 |
Full Moon Dart 8 mm |
| 18 |
518326973 |
Front Tunnel Protector This part replaces 518324985. |
| 19 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
