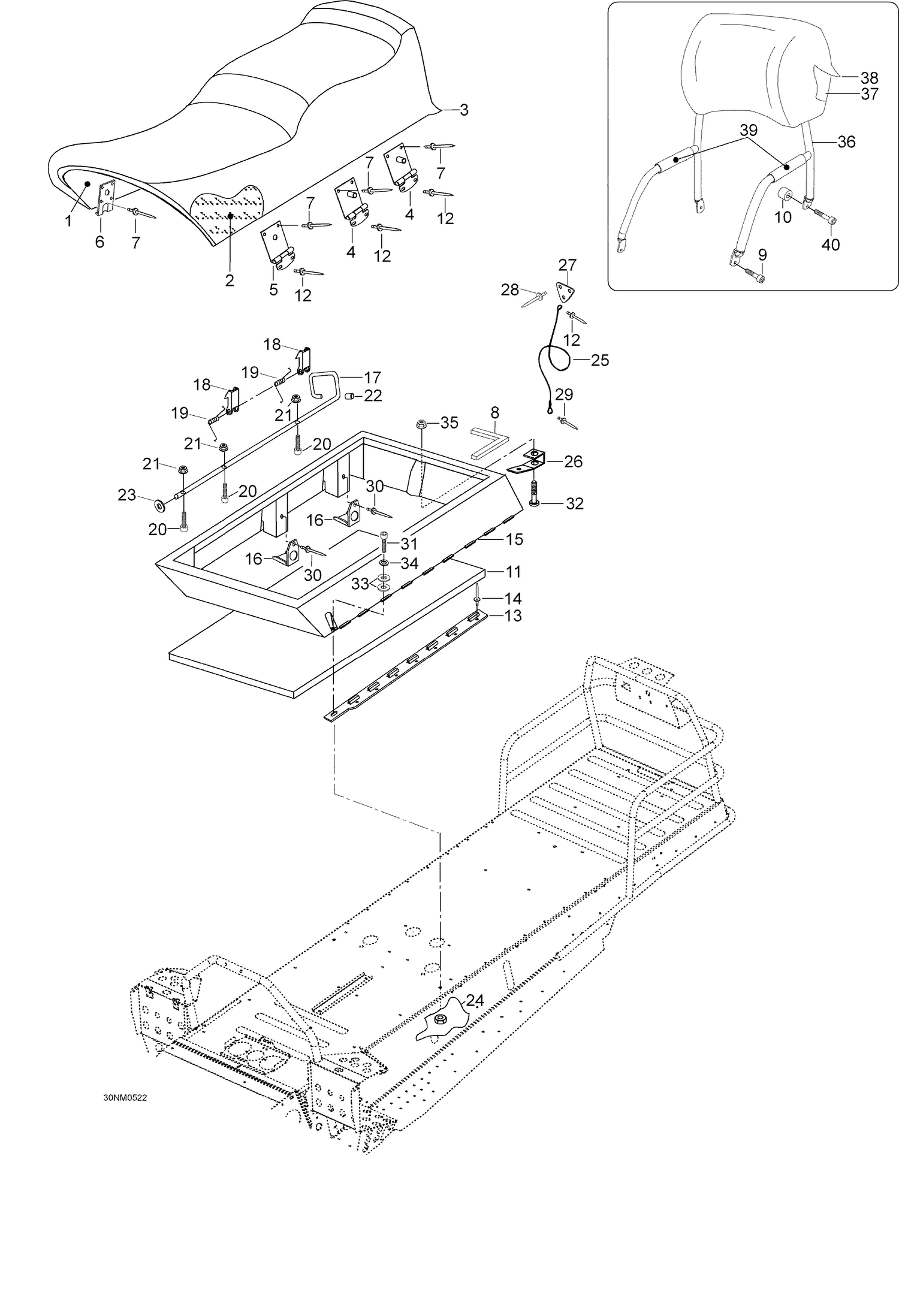

| Ref | Part Number | Description |
|---|
| 1 |
519394 |
SEAT BASE - Call your local BRP dealership |
| 2 |
605148623 |
Dyna stoppning |
| 3 |
605148622 |
Istuinpäällinen |
| 4 |
549874 |
Hinge plate - Call your local BRP dealership |
| 5 |
5440581 |
HINGE - Call your local BRP dealership |
| 6 |
549732 |
Lock plate weld. - Call your local BRP dealership |
| 7 |
36071 |
Vetoniitti |
| 8 |
5440059 |
Sealing strip profil |
| 9 |
40388 |
Socket head screw M8 x 20 |
| 10 |
5440665 |
SPACER - Call your local BRP dealership |
| 12 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 13 |
5144028 |
CLIP PLATE L.H. - Call your local BRP dealership |
| 13 |
5144029 |
Ist.kot. kiinn.lista oik. |
| 14 |
36083 |
Vetoniitti 4.8x8 st kel.pas. |
| 15 |
5142066 |
Seat box - Call your local BRP dealership |
| 16 |
5443661 |
Kannatin |
| 17 |
5344987 |
LOCKING ROD - Call your local BRP dealership |
| 18 |
605451589 |
CAM LOCK - Call your local BRP dealership |
| 19 |
5444439 |
Lukkojousi |
| 20 |
40144 |
Allen screw M4 x 16 DIN 912m8.8(1=10pcs) - Call your local BRP dealership |
| 21 |
33008 |
Locknut M4 DIN985 m8 Zne(1=10pcs) |
| 22 |
28019 |
Ulkotulppa U-8 black |
| 23 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 24 |
33066 |
Korimutteri M6 |
| 27 |
605452535 |
SUPPORT - Call your local BRP dealership |
| 28 |
36071 |
Vetoniitti |
| 29 |
36038 |
Rivet 4.8x21 Al(1=25pcs) - Call your local BRP dealership |
| 30 |
36009 |
Rivet black 4.8x16 Al, long mand. |
| 31 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 32 |
40149 |
Lukkoruuvi M6 x 30DIN 603 4. |
| 33 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 34 |
20052 |
WASHER-LOCK DIN.127B |
| 35 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 36 |
5245664 |
Backrest weld. - Call your local BRP dealership |
| 37 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 38 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 39 |
415050300 |
Handtag stoppning |
