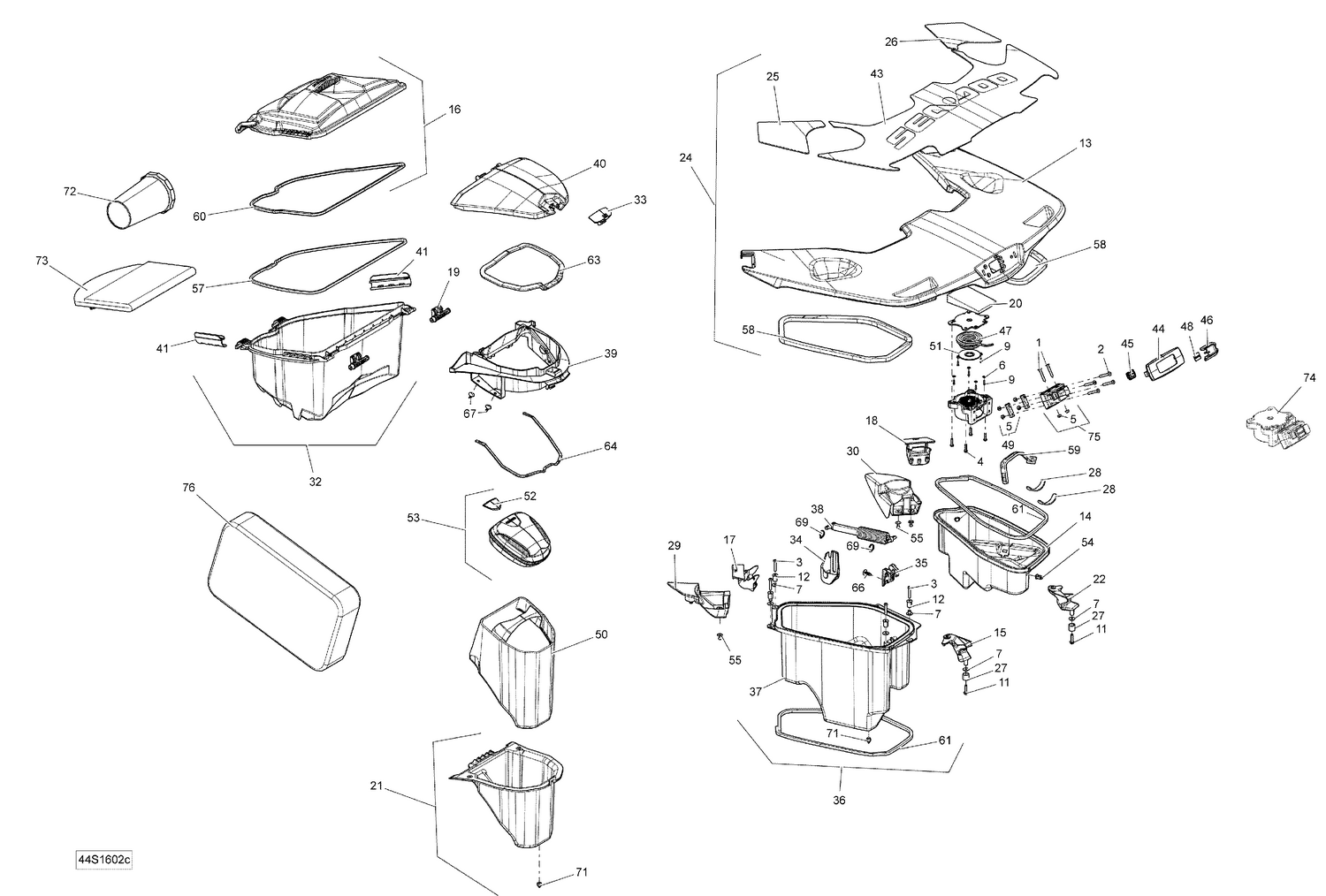

09- Storage Compartments - GTX LTD iS 260
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205364060 | SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 2 | 205364560 | SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership |
| 3 | 205463560 | Socket Head Screw M6 X 35 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 5 | 232561200 | Brass Elastic Stop Nut M6 |
| 6 | 234032600 | Flat Washer M3, Stainless |
| 7 | 234062600 | Flat Washer M6, Stainless |
| 11 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite |
| 12 | 250100150 | Expansion Nut M6 X 1 |
| 13 | 264000034 | Rear Platform Ass'y |
| 14 | 264000002 | RH Rear Tray |
| 15 | 264000003 | LH PIVOT SUPPORT - Call your local BRP dealership |
| 16 | 264000120 | Storage Bin Cover Ass'y |
| 17 | 264000020 | LH Latch |
| 18 | 264000021 | RH Latch |
| 19 | 264000024 | Latch |
| 20 | 264000025 | Platform Foam |
| 21 | 264000031 | GLOVE BOX ASS'Y - Call your local BRP dealership |
| 22 | 264000032 | RH PIVOT SUPPORT - Call your local BRP dealership |
| 24 | 264000034 | Rear Platform Ass'y |
| 25 | 264000040 | ANTI SLIP MAT_DECK FL - Call your local BRP dealership |
| 26 | 264000041 | ANTI SLIP MAT_DECK FR - Call your local BRP dealership |
| 27 | 264000042 | SPACER - Call your local BRP dealership |
| 28 | 264000043 | TRAY PAD - Call your local BRP dealership |
| 29 | 264000055 | LH LATCH BASE, BLACK - Call your local BRP dealership |
| 30 | 264000056 | RH LATCH BASE, BLACK - Call your local BRP dealership |
| 32 | 264000118 | Storage Bin Ass'y |
| 33 | 264000164 | Black, Latch This part replaces 264000091. |
| 34 | 264000092 | Stiffener |
| 35 | 264000093 | STIFFENER - Call your local BRP dealership |
| 36 | 264000097 | LH Tray |
| 37 | 264000097 | LH Tray |
| 38 | 264000099 | Shock Ass'y |
| 39 | 264000112 | GLOVE BOX EXT. - Call your local BRP dealership |
| 41 | 269501609 | Clip |
| 43 | 291002585 | Rear Platform Carpet |
| 44 | 291002725 | REAR REWIND FRAME - Call your local BRP dealership |
| 45 | 291002726 | BUTTON - Call your local BRP dealership |
| 46 | 291002727 | UNDER CAM - Call your local BRP dealership |
| 47 | 219704363 | ROPE 3/16 3000MM LONG - Call your local BRP dealership |
| 48 | 291002754 | Button Cap |
| 49 | 291002755 | DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership |
| 50 | 291002761 | PROTECTION LINER - Call your local BRP dealership |
| 51 | 291002762 | INSIDE COVER - Call your local BRP dealership |
| 52 | 291002793 | SEA-DOO DECAL - Call your local BRP dealership |
| 53 | 291002814 | REMOVABLE CASE ASS'Y - Call your local BRP dealership |
| 54 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 55 | 293150123 | Pop Rivet 3/16" |
| 57 | 219704374 | Gasket 1000Mm Long |
| 58 | 219704375 | Was 293250186 Gasket |
| 59 | 269502417 | Strap This part replaces 269500408. |
| 60 | 293250210 | NEOPRENE SEAL - Call your local BRP dealership |
| 61 | 219704378 | Gasket 3000Mm Long |
| 63 | 293250367 | GASKET - Call your local BRP dealership |
| 64 | 219704381 | SEAL 1000MM LONG - Call your local BRP dealership |
| 66 | 293730006 | Black, Dart |
| 67 | 293730011 | Black, Dart |
| 69 | 293750001 | Tie Wrap 94 mm |
| 71 | 293830005 | Rubber Bumper |
| 72 | 295100330 | Safety Kit |
| 73 | 269001936 | Bag |
| 74 | 291004019 | Retractable Rope Ass'y |
| 75 | 291003023 | JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership |
