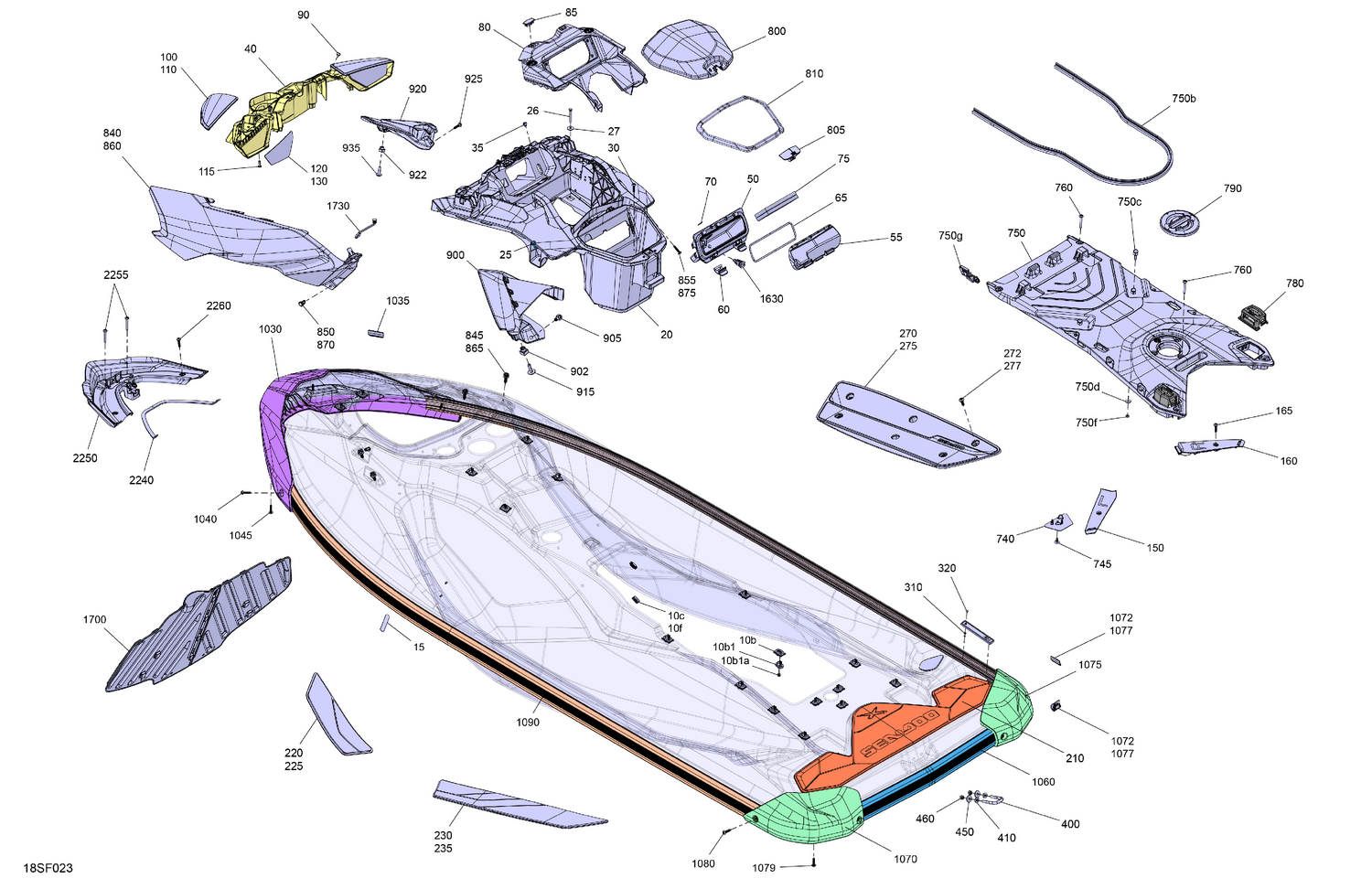

| Ref | Part Number | Description |
|---|
| 10b1a |
232561200 |
Brass Elastic Stop Nut M6 |
| 10c |
293750109 |
Anchorage Tie Wrap |
| 10f |
293750109 |
Anchorage Tie Wrap |
| 15 |
291005381 |
Decal |
| 20 |
291005315 |
Console |
| 25 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 26 |
207165060 |
Hex. Screw M6 X 50 |
| 27 |
250200022 |
Flat Washer M6.6 X 22 |
| 30 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 35 |
293830005 |
Rubber Bumper |
| 40 |
291005178 |
Mirror Support |
| 50 |
291006491 |
Deep Black, Storage Box |
| 55 |
264000158 |
Box Cover |
| 60 |
269501718 |
Clip |
| 65 |
293250591 |
Gasket |
| 70 |
264000137 |
Vent Membrane |
| 75 |
264000135 |
Sealed Compartment Foam |
| 80 |
291006453 |
Deep Black, Console Panel |
| 85 |
708400856 |
Cap |
| 90 |
293830005 |
Rubber Bumper |
| 100 |
269502561 |
Monolith Black, LH Miror Cover |
| 110 |
269502562 |
Monolith Black, RH Miror Cover |
| 115 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 120 |
269502274 |
LH Mirror Glass |
| 130 |
269502276 |
RH Mirror Glass |
| 150 |
291005127 |
LH Spacer |
| 160 |
291005182 |
RH Spacer |
| 165 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 210 |
291006314 |
RH Anti Slip Deck Mat |
| 220 |
291006316 |
LH Front Anti Slip Mat |
| 225 |
291006318 |
RH Front Anti Slip Mat |
| 230 |
291006319 |
LH Rear Anti Slip Mat |
| 235 |
291006320 |
RH Rear Anti Slip Mat |
| 270 |
291005799 |
Can-Am Red, LH Front Footrest Ass'y |
| 272 |
250001171 |
Plastite Torx Screw Cone HD.M6.81X2 |
| 275 |
291005800 |
Can-Am Red, RH Front Footrest Ass'y |
| 277 |
250001171 |
Plastite Torx Screw Cone HD.M6.81X2 |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 400 |
292000933 |
U-Clamp |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 740 |
291004941 |
Hose Protector |
| 745 |
293730011 |
Black, Dart |
| 750b |
219704366 |
Was 293200062 Seal |
| 750c |
291005183 |
Stud - Call your local BRP dealership This part replaces 291005183. |
| 750d |
234062600 |
Flat Washer M6, Stainless |
| 750f |
232561200 |
Brass Elastic Stop Nut M6 |
| 750g |
291004717 |
Seal |
| 760 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 780 |
295100858 |
Linq Bases Kit |
| 790 |
291004481 |
Access Cap Ass'y |
| 800 |
291005346 |
Deep Black, Glove Box Cover |
| 805 |
264000164 |
Black, Latch |
| 810 |
293250715 |
Cover Gasket |
| 840 |
291006545 |
Gulfsream Blue, LH Front Body Panel |
| 845 |
293730071 |
Dard |
| 850 |
293150230 |
Tuflok Plastic Rivet |
| 855 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 860 |
291006544 |
Gulfsream Blue, RH Front Body Panel |
| 865 |
293730071 |
Dard |
| 870 |
293150230 |
Tuflok Plastic Rivet |
| 875 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 900 |
291005330 |
LH Front Grille Panel |
| 902 |
291003793 |
Insert |
| 905 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 915 |
250000978 |
Hexagonal Cap Screw M6 X 25 |
| 920 |
291005331 |
RH Front Grille Panel |
| 922 |
291003793 |
Insert |
| 925 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 935 |
250000978 |
Hexagonal Cap Screw M6 X 25 |
| 1030 |
291005082 |
Bumper Front |
| 1035 |
291005701 |
Plastite Housing |
| 1040 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1045 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 1060 |
291005510 |
Lateral Bumper |
| 1070 |
291005083 |
LH Rear Bumper Corner |
| 1072 |
291005701 |
Plastite Housing |
| 1075 |
291005084 |
RH Rear Bumper Corner |
| 1077 |
291005701 |
Plastite Housing |
| 1079 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 1080 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1090 |
291006724 |
Lateral Bumper |
| 1630 |
293720121 |
Wiring Grommet |
| 1700 |
291005587 |
Separation Panel Ass'y |
| 1730 |
269502111 |
Holding Strap |
| 2240 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 2250 |
291005108 |
Body Deflector |
| 2255 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
