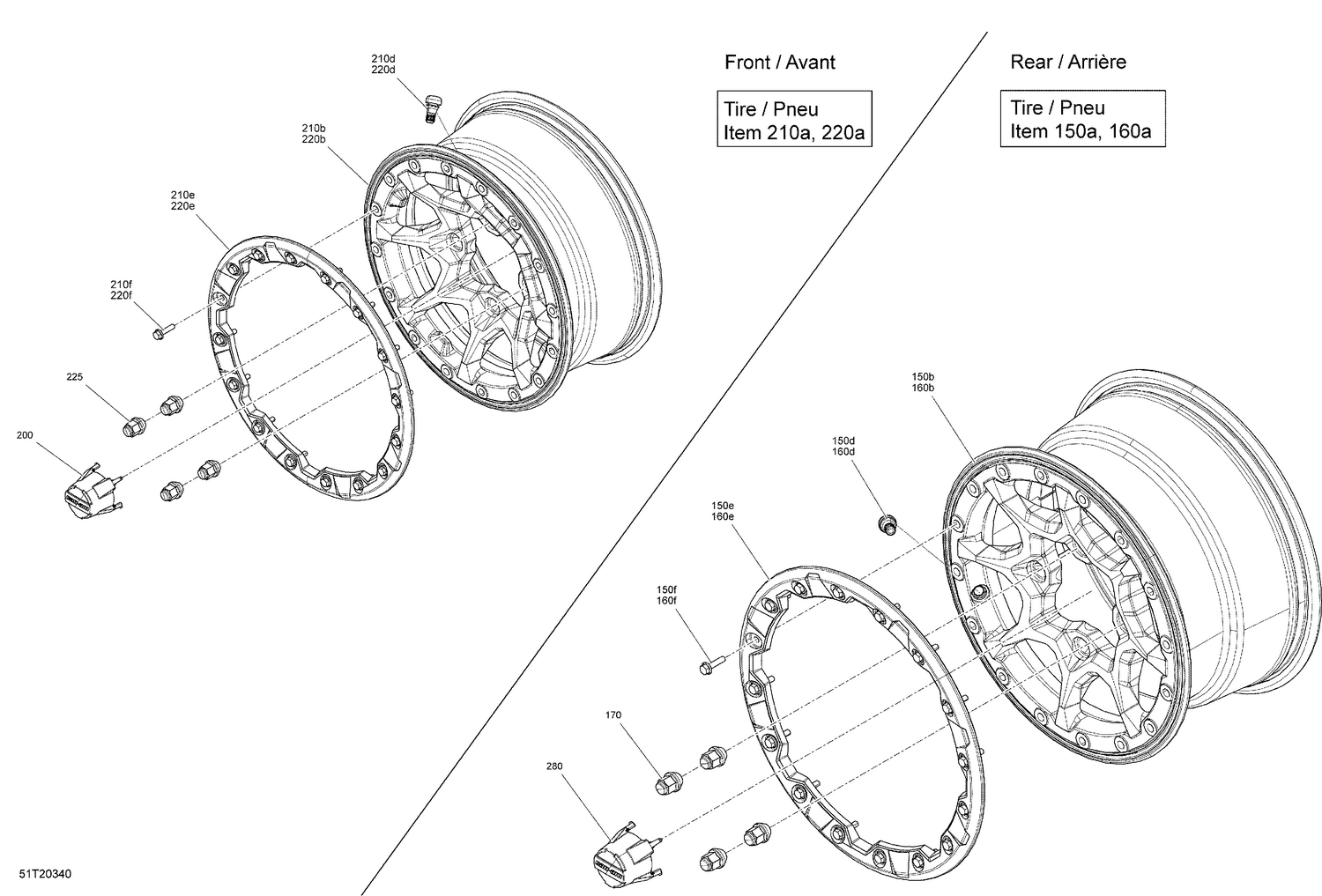

07- Wheels - XTP
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 150a | 705503276 | Rear Tire 255/65R14 This part replaces 705502858. |
| 150b | 705502146 | Black, Rim |
| 150d | 705402595 | Tire Valve Ass'y |
| 150e | 705402034 | Disc Plate |
| 150f | 250000787 | Hex. Flange Screw M6 X 25 |
| 160a | 705503276 | Rear Tire 255/65R14 This part replaces 705502858. |
| 160b | 705502146 | Black, Rim |
| 160d | 705402595 | Tire Valve Ass'y |
| 160e | 705402034 | Disc Plate |
| 160f | 250000787 | Hex. Flange Screw M6 X 25 |
| 170 | 250100184 | Black, Wheel Nut M10 X 1.25 |
| 200 | 705400928 | Wheel Cap |
| 210a | 705402973 | Tire 205/75R14 This part replaces 705402435. |
| 210b | 705401594 | Black Rim |
| 210d | 705400193 | Rim Valve With Cap |
| 210e | 705402034 | Disc Plate |
| 210f | 250000787 | Hex. Flange Screw M6 X 25 |
| 220a | 705402973 | Tire 205/75R14 This part replaces 705402435. |
| 220b | 705401594 | Black Rim |
| 220d | 705400193 | Rim Valve With Cap |
| 220e | 705402034 | Disc Plate |
| 220f | 250000787 | Hex. Flange Screw M6 X 25 |
| 225 | 250100184 | Black, Wheel Nut M10 X 1.25 |
