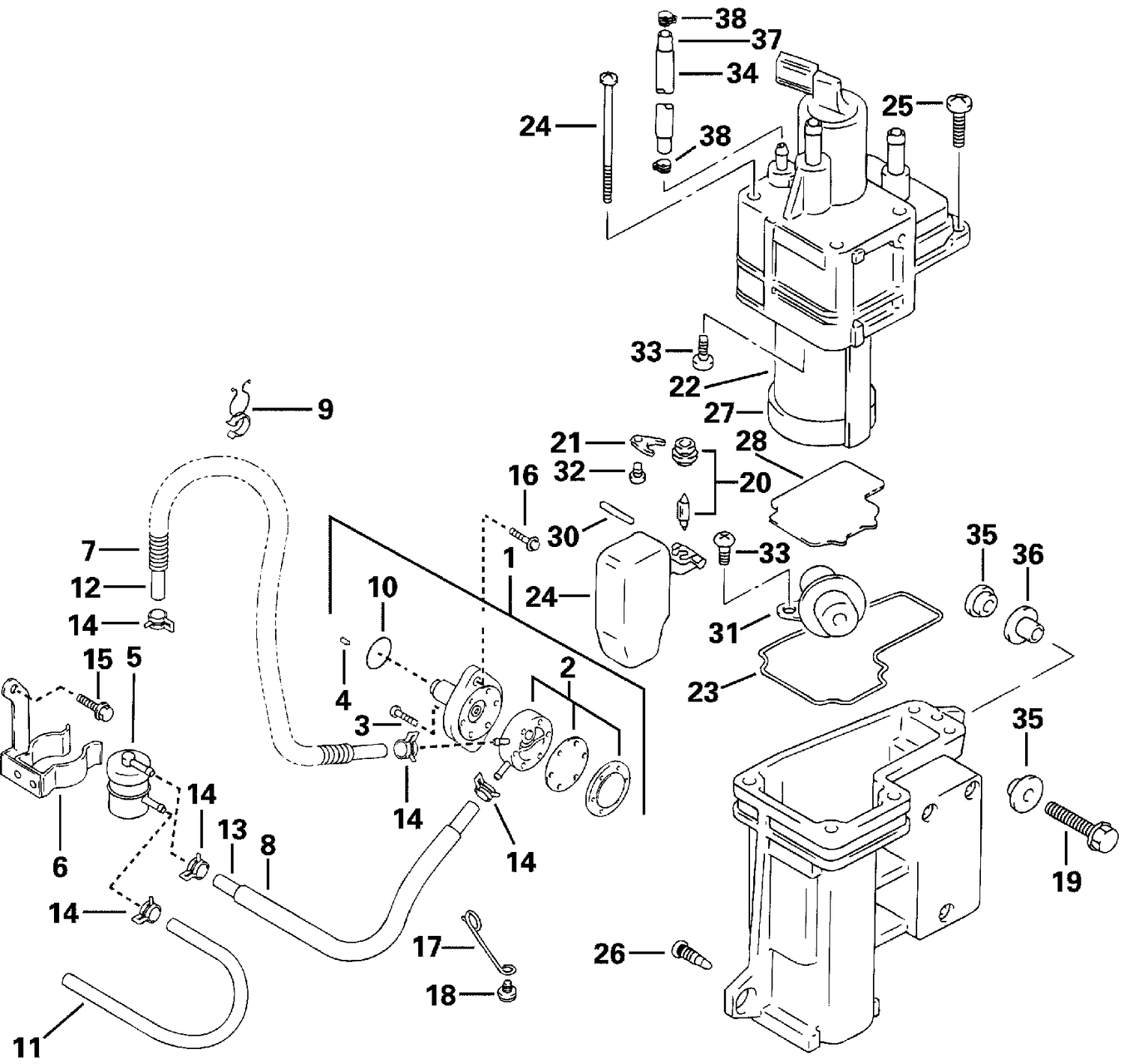

FUEL PUMP & SEPARATOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030697 | FUEL PUMP |
| 4 | 5030698 | ROD, FUEL PUMP |
| 5 | 5032323 | FILTER, Fuel |
| 6 | 5032904 | BRACKET, Fuel filter This part replaces 5030704. |
| 7 | 5030720 | PROTECTOR, Fuel hose (440mm) |
| 8 | 5030753 | PROTECTOR (CONN TO CYL) (L:560mm) |
| 9 | 5030815 | CLAMP |
| 10 | 5030540 | JOINT TORIQUE |
| 17 | 5031077 | HOLDER, Fuel hose |
| 18 | 5030094 | BOLT (10X7.5mm) |
| 34 | 5030752 | PROTECTOR |
| 35 | 5030472 | GROMMET |
| 36 | 5030556 | CUSHION |
| 5032905 | SEPARATOR | Assy This part replaces 5031746. 5032905 |
