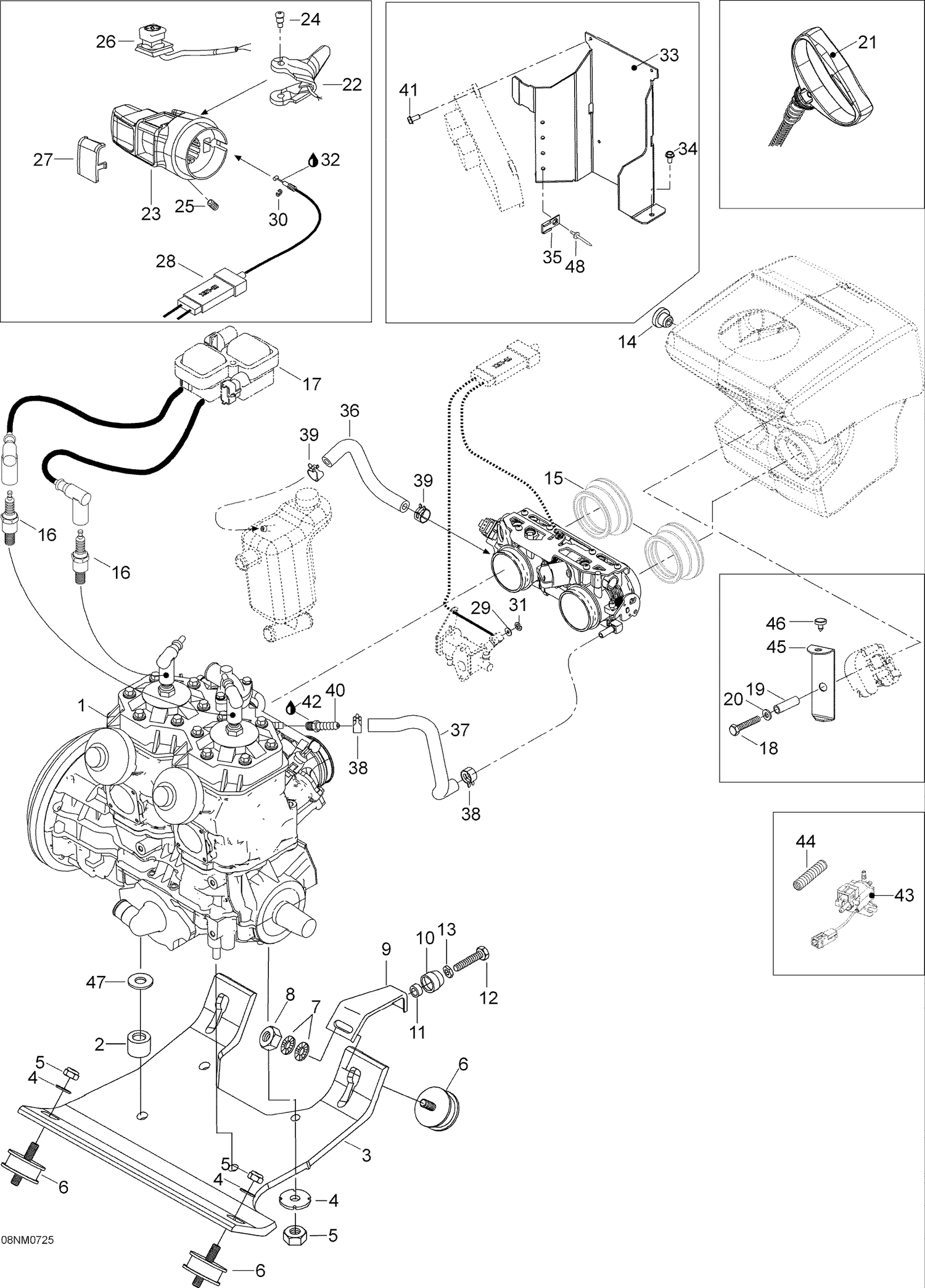

01- Engine And Engine Support
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 370593395 | Engine 590 SDI |
| 2 | 5446347 | Sleeve |
| 3 | 605251437 | Engine support |
| 4 | 512056700 | Lock washer |
| 5 | 33012 | Elastic stop nut M10 |
| 6 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 20068 | Lockwasher D10 (Nord- |
| 8 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 9 | 605352447 | Support |
| 10 | 605449240 | SLEEVE - Call your local BRP dealership |
| 11 | 2846014 | RUBBER GROMMET - Call your local BRP dealership |
| 12 | 40121 | Hex Screw M8x40 DIN933 m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 13 | 33003 | Nut M8 |
| 14 | 570065500 | GROMMET - Call your local BRP dealership |
| 15 | 605351756 | INTAKE ADAPTOR - Call your local BRP dealership |
| 16 | 512060028 | Spark Plug NGK BR8ECS |
| 17 | 278001546 | Ignition coil ass'y |
| 18 | 40084 | Hex. screw M6 x 45 |
| 19 | 512059812 | SPACER - Call your local BRP dealership |
| 20 | 234161471 | Lock washer 6mm |
| 21 | 572084400 | Grip |
| 22 | 512059481 | Throttle Handle This part replaces 512059107. |
| 23 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership |
| 24 | 732601143 | Screw |
| 25 | 414440800 | Socket Set Screw M8 X 10 |
| 26 | 515175410 | Emergency switch |
| 27 | 572100901 | Cover |
| 28 | 512059362 | THROTTLE CABLE - Call your local BRP dealership |
| 29 | 234081100 | Washer |
| 30 | 414753500 | Circlip This part replaces 31035. |
| 31 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 32 | 293550004 | Dielectric grease |
| 33 | 605353805 | SUPPORT PLATE, ECU - Call your local BRP dealership |
| 34 | 40327 | Hex. screw M6 x 12 |
| 35 | 270000141 | Clip This part replaces 515175917. |
| 36 | 509000093 | Hose |
| 37 | 605354601 | HOSE-FORMED - Call your local BRP dealership |
| 38 | 414655700 | Clamp |
| 39 | 293650170 | Clamp |
| 40 | 512060196 | Straight fitting This part replaces 512059970. |
| 41 | 210251650 | Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 42 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 43 | 512059809 | Support |
| 44 | 28004 | Tubing |
| 45 | 605352895 | SUPPORT, HOOD - Call your local BRP dealership |
| 46 | 605452114 | Plug |
| 47 | 20105 | Washer, hardened M10 |
