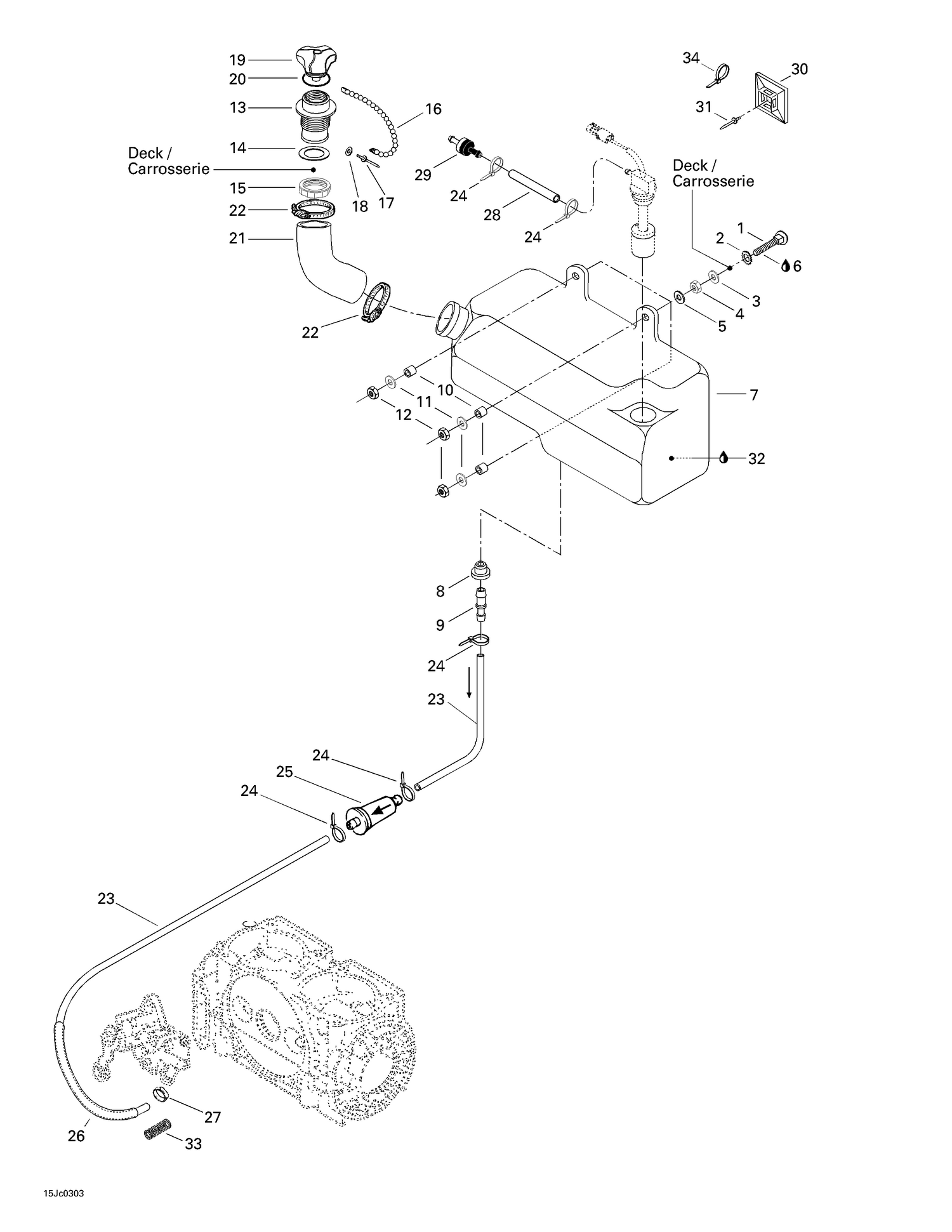

02- Oil Injection System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 211200054 | EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 3 | 234081600 | Stainless, Flat Washer 8 mm |
| 4 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 5 | 234062600 | Flat Washer M6, Stainless |
| 6 | 293800005 | Loctite 271, 10 ml |
| 7 | 204550087 | Oil Tank |
| 8 | 293720008 | Grommet |
| 9 | 293710070 | Elbow Fitting 90° |
| 10 | 204550033 | SPACER SLEEVE - Call your local BRP dealership |
| 11 | 234062600 | Flat Washer M6, Stainless |
| 13 | 275000242 | FILLER NECK - Call your local BRP dealership |
| 14 | 293250132 | Gasket |
| 15 | 211100013 | Nut-Neck Oil Filler |
| 16 | 275500015 | Oil Cap Chain |
| 17 | 293150056 | Pop Rivet 1/8" |
| 18 | 234032600 | Flat Washer M3, Stainless |
| 19 | 275000186 | Oil Cap |
| 20 | 293250025 | O-RING - Call your local BRP dealership |
| 21 | 204550150 | Formed Hose |
| 22 | 293650077 | Norma Clamp |
| 23 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 24 | 293750001 | Tie Wrap 94 mm |
| 25 | 275000051 | OIL FILTER - Call your local BRP dealership |
| 26 | 204550015 | SLIT CONDUIT, METER - Call your local BRP dealership |
| 27 | 293650042 | Oetiker Clamp |
| 28 | 219704360 | Hose 6 Mm 15000Mm Long |
| 29 | 275500398 | Check Valve |
| 30 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 31 | 293150088 | Pop Rivet 3/16" |
| 32 | 779119 | OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 33 | 204550064 | SPRING - Call your local BRP dealership |
| 779120 | 2T | Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
