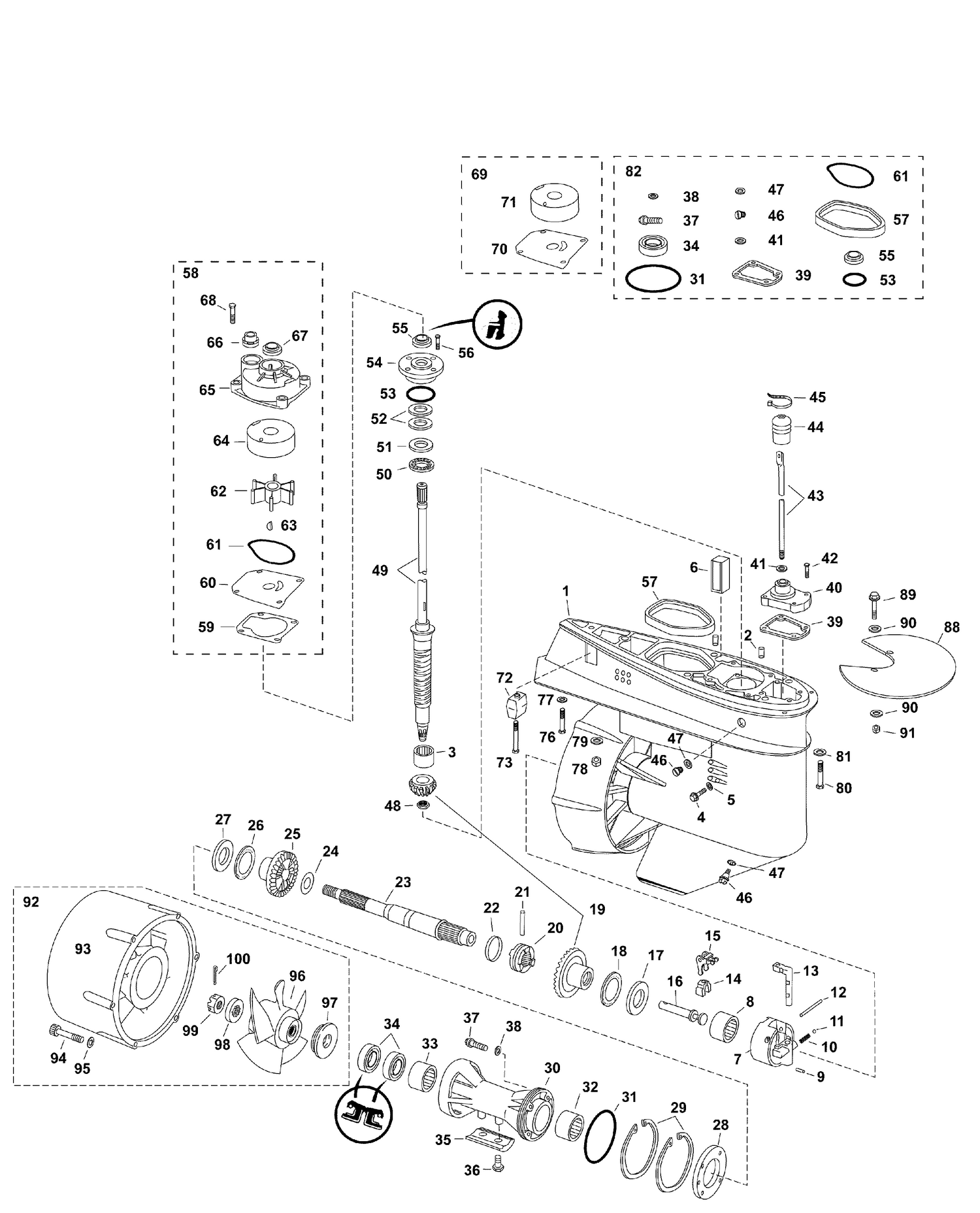

07-1_GEARCASE, F-Type (MJRL)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 45 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 76 | 0306503 | SCREW, Short |
| 78 | 0353926 | NUT, Exhaust housing stud |
| 79 | 0202026 | LOCK WASHER, Stud |
| 82 | 5000309 | GEARCASE SEAL KIT |
| 88 | 0352345 | SPLASH GUARD |
| 89 | 0341011 | SCREW, Adapter to housing, outer |
| 93 | 5009980 | Hsg&Nozzle Ay This part replaces 5007560. |
