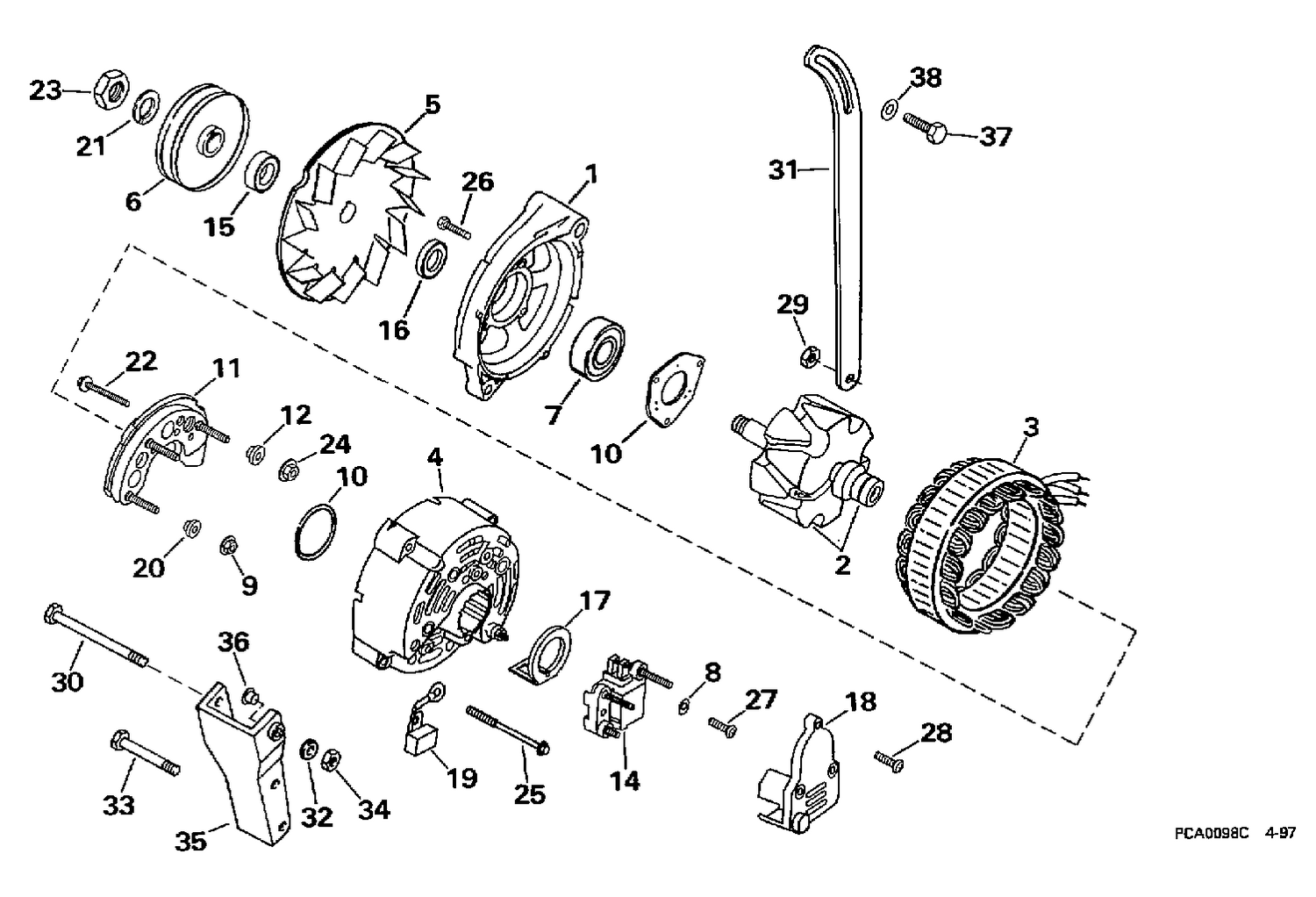

| Ref | Part Number | Description |
|---|
| 1 |
3857060 |
HOUSING, Front |
| 2 |
3857062 |
ROTOR ASSY. |
| 3 |
3857063 |
STATOR ASSY. |
| 4 |
3857064 |
HOUSING, Rear |
| 5 |
3857059 |
FAN |
| 6 |
3857058 |
PULLEY |
| 7 |
3857061 |
BEARING, Front |
| 8 |
WASHER, |
Regulator |
| 9 |
NUT |
Ref: 10 RETAINER, Bearing |
| 11 |
3857065 |
RECTIFIER ASSY. |
| 12 |
INSULATOR, |
Large |
| 13 |
RETAINER, |
Bearing |
| 14 |
3858879 |
Regulator Ay This part replaces 3857067. |
| 15 |
SPACER, |
Pulley |
| 16 |
SPACER, |
Fan |
| 17 |
INSULATOR |
Ref: 18 3857068 COVER ASSEMBLY 3857068 |
| 19 |
3857066 |
CAPACITOR |
| 20 |
INSULATOR, |
Small |
| 21 |
LOCK |
WASHER, Pulley |
| 22 |
SCREW, |
Rectifier |
| 23 |
NUT, |
Pulley |
| 24 |
NUT |
Ref: 25 BOLT, Through |
| 26 |
SCREW, |
Front housing |
| 27 |
SCREW, |
Regulator |
| 28 |
SCREW, |
Cover |
| 29 |
3853403 |
NUT, Alternator brace to pump |
| 30 |
3853367 |
SCREW Bracket |
| 31 |
3855600 |
BRACE, Alternator |
| 33 |
3853547 |
SCREW, Bracket |
| 34 |
0305496 |
LOCKNUT, Alternator to bracket This part replaces 3852051. |
| 35 |
3861465 |
Bracket & Bushing This part replaces 3853883. |
| 36 |
3852740 |
BUSHING, Alternator |
| 37 |
3853399 |
SCREW, Brace to alternator |
| 3856600 |
3857561 |
Alternator This part replaces 3856600. |
