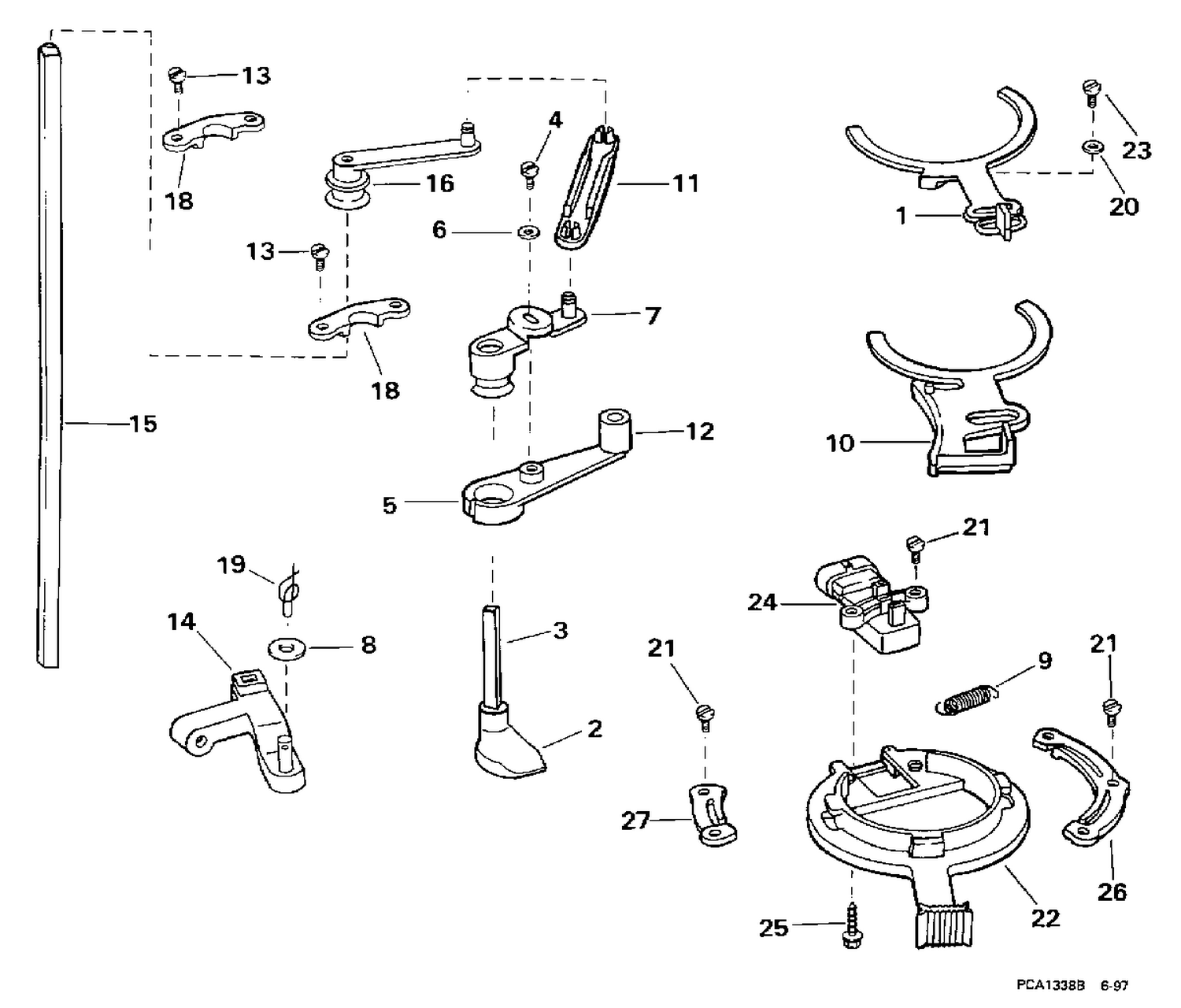

THROTTLE LINKAGE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0335593 | ARM, Idle roller |
| 9 | 0342394 | RESSORT, capteur |
| 10 | 0335592 | CAM, Spark |
| 11 | 0335595 | LINK, Throttle |
| 12 | 0323326 | GALET, came |
| 13 | 0124880 | SCREW, Bracket, timing pointer |
| 16 | 0335543 | MANETTE DES GAZ |
| 18 | 0335717 | DISPOSITIF DE RETENUE, tringlerie vers capot |
| 22 | 0335591 | SUPPORT, capteur |
| 24 | 0586343 | ENSEMBLE CAPTEUR |
| 26 | 0335300 | DISPOSITIF DE RETENUE, Support, capteur, bâbord |
| 0437984 | 0437984 | ARM & SHAFT |
| 0438957 | 0438957 | ENSEMBLE CAME ET BRAS D'ACCÉLÉRATION |
