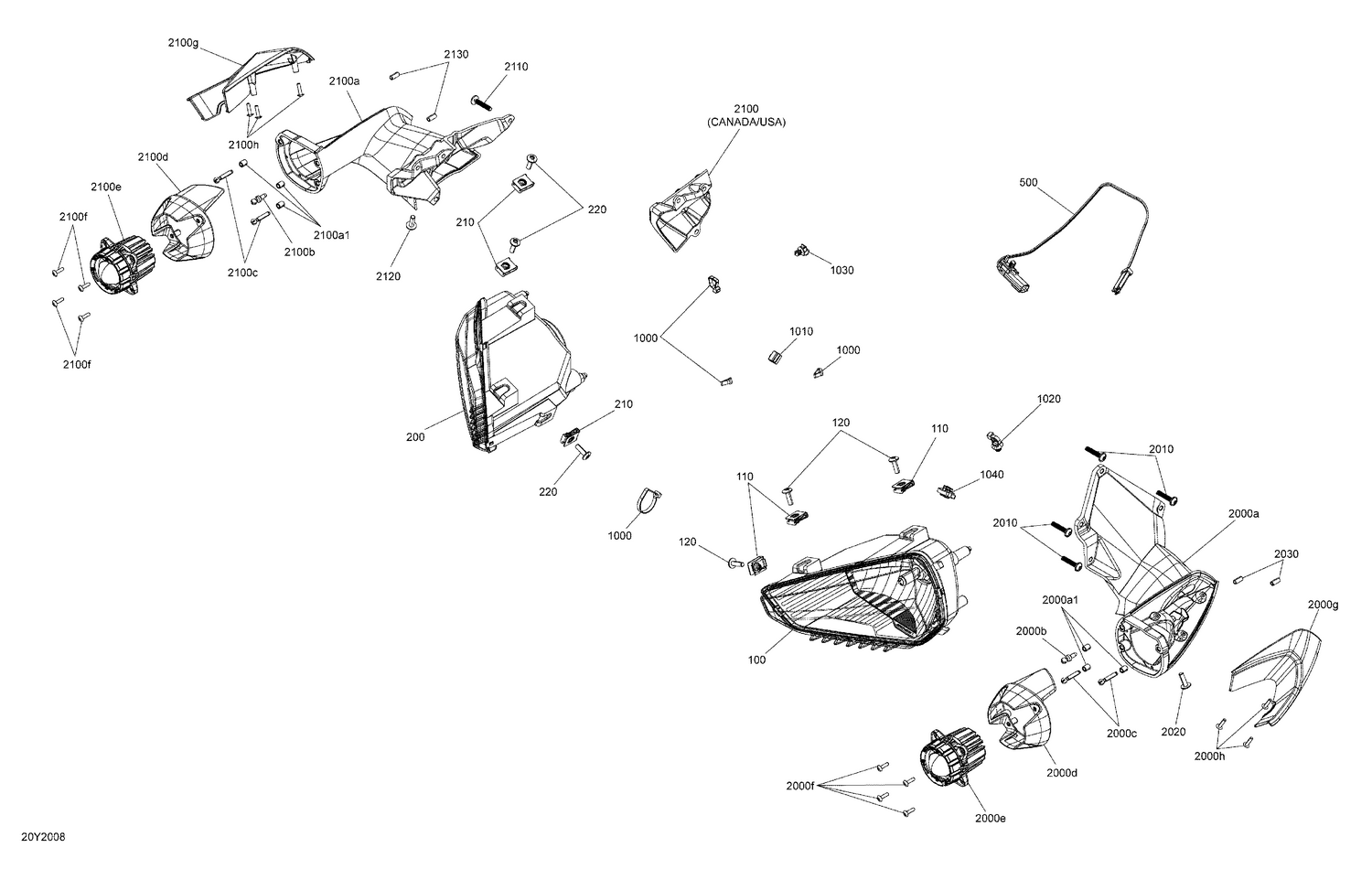

10- Electrical System Headlights and DESS Switch
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 710008173 | LH Headlight This part replaces 710005636. |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 120 | 250000722 | Torx Screw M6 X 20 |
| 200 | 710005637 | RH Headlamp |
| 210 | 250100208 | Panel Nut M6 X 1.0 |
| 220 | 250000722 | Torx Screw M6 X 20 |
| 500 | 705601717 | Passenger Footpeg Position Sensor |
| 1000 | 293750008 | Tie Wrap 368 mm |
| 1010 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 1020 | 710005237 | Christmas Tree Tie-Rap |
| 1030 | 710003168 | Dart Tie Rap 200MM |
| 1040 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 2110 | 250000949 | Screw PT K60 X 30 |
