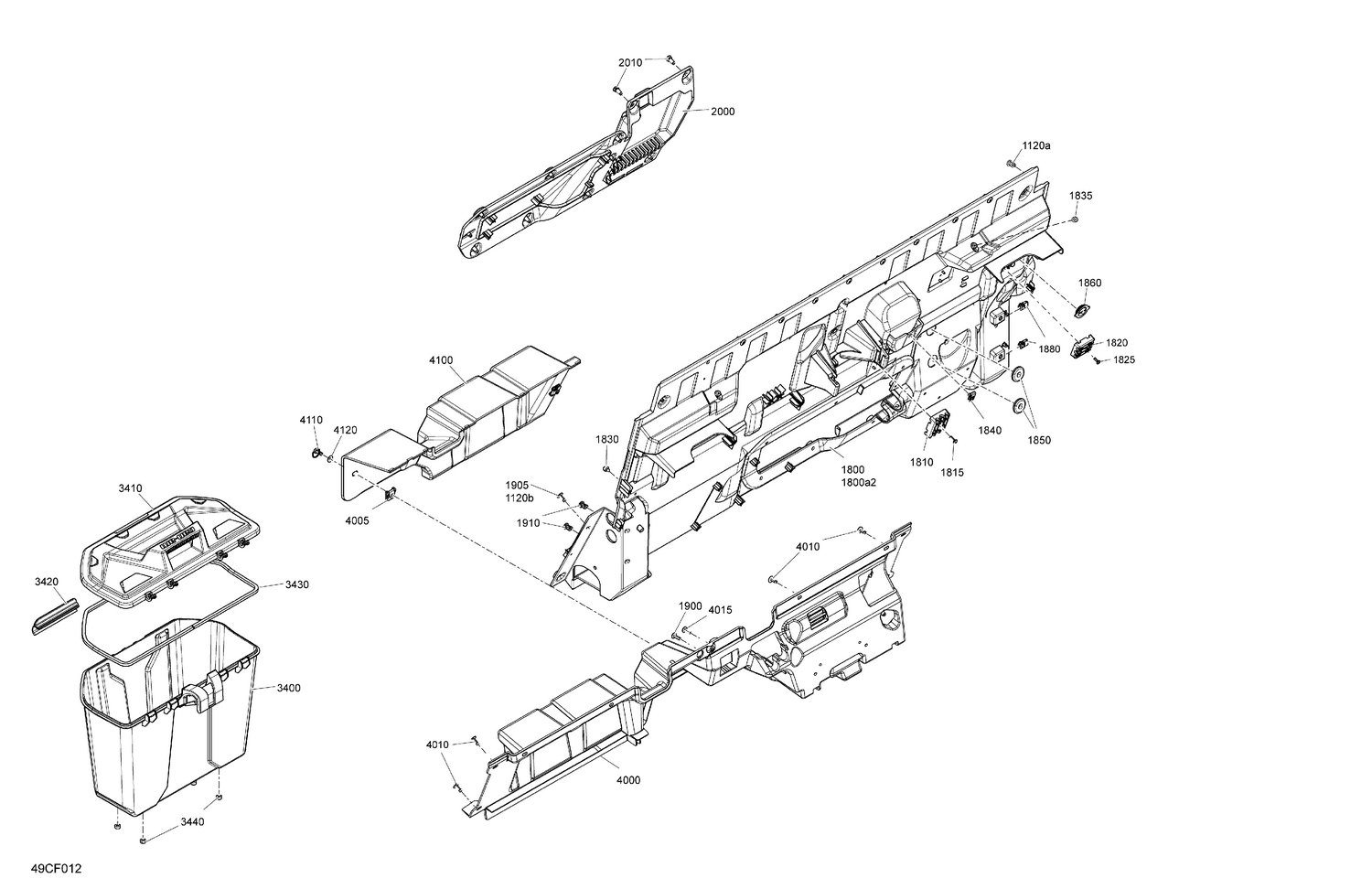

07- Cab Interior - Back Wall
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1120a | 293150230 | Tuflok Plastic Rivet |
| 1120b | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 1800 | 715008401 | Rear Upper Cab Panel Kit |
| 1800a2 | 707901101 | Rear Upper Cab Panel |
| 1810 | 707900788 | Hose Support |
| 1815 | 250000720 | Torx Screw K50 X 16 |
| 1820 | 707900788 | Hose Support |
| 1825 | 250000720 | Torx Screw K50 X 16 |
| 1830 | 293830005 | Rubber Bumper |
| 1835 | 293830005 | Rubber Bumper |
| 1840 | 250100198 | Panel Nut M6 X 1.0 |
| 1850 | 293720119 | Grommet |
| 1860 | 293000125 | Plug |
| 1880 | 250100198 | Panel Nut M6 X 1.0 |
| 1900 | 250000722 | Torx Screw M6 X 20 |
| 1905 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 1910 | 293150230 | Tuflok Plastic Rivet |
| 2000 | 707900742 | Rear Access Cover |
| 2010 | 250000712 | Torx Screw M6 X 20 |
| 3400 | 715003314 | Storage Box |
| 3410 | 715003314 | Storage Box |
| 3420 | 269501945 | Clip |
| 3430 | 293250453 | Neoprene Seal |
| 3440 | 293830005 | Rubber Bumper |
| 4000 | 707901242 | Lower Rear Cab Panel |
| 4005 | 705002651 | Quarter Turn Nut |
| 4010 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 4015 | 250000722 | Torx Screw M6 X 20 |
| 4100 | 707900743 | Battery Cover |
| 4110 | 705002649 | Quarter Turn Screw |
| 4120 | 708400286 | Washer |
