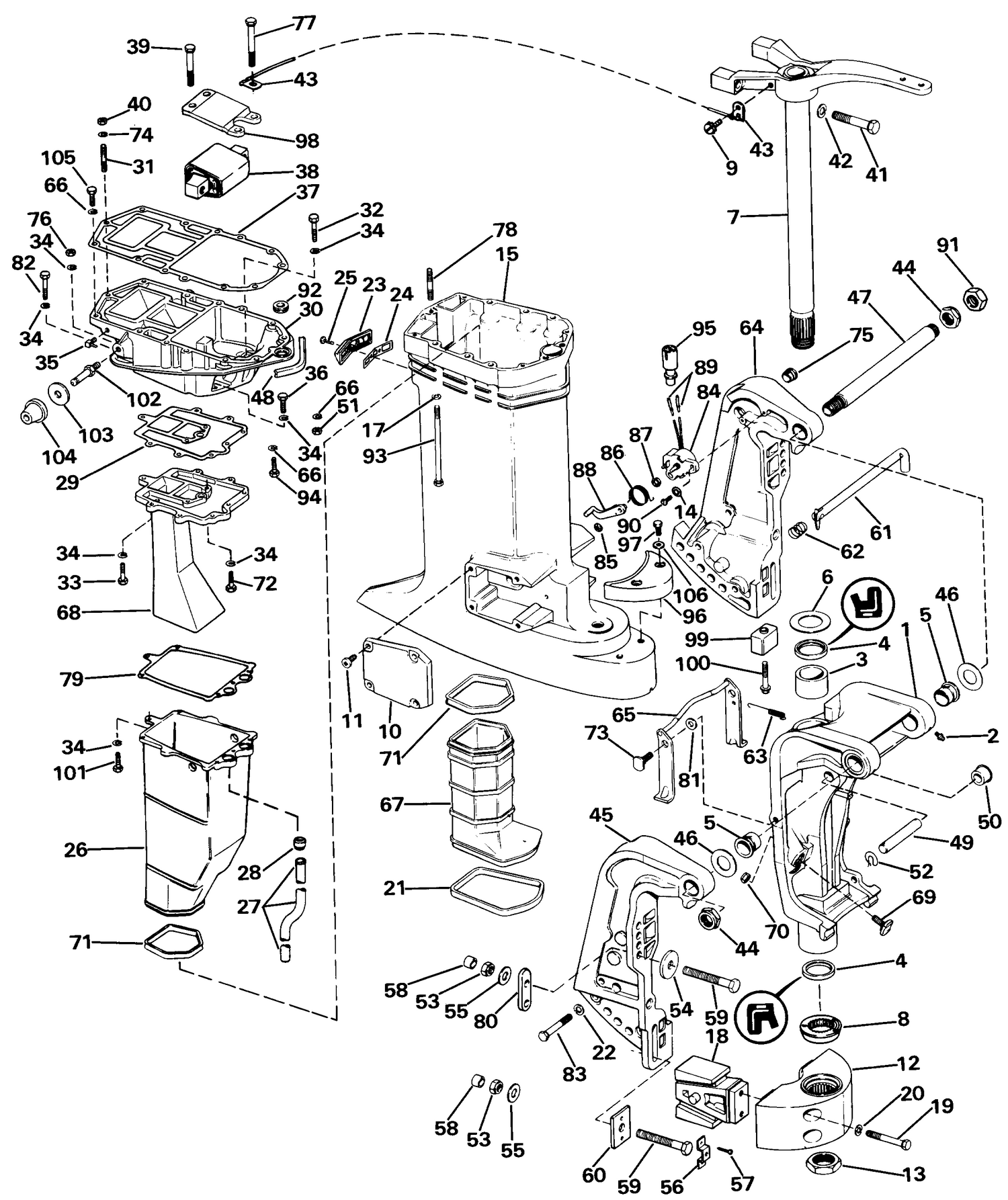

| Ref | Part Number | Description |
|---|
| 1 |
0432708 |
SWIVEL BRACKET This part replaces 0389335. |
| 1 |
0432710 |
SWIVEL BRACKET This part replaces 0389336. |
| 5 |
0321035 |
BRUSHING, Swivel bracket |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
0392518 |
STEERING ARM ASSY. |
| 7 |
0392519 |
STEERING ARM ASSY. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0328696 |
SCREEN, Ground lead |
| 10 |
0338942 |
COVER, Mount bracket lower This part replaces 0327801. |
| 11 |
0322000 |
SCREW, Starter to crankcase |
| 12 |
0340006 |
BRACKET, Mount This part replaces 0327051. |
| 13 |
0320746 |
CROU, support de montage |
| 15 |
0326800 |
EXHAUST HOUSING |
| 15 |
0326801 |
EXHAUST HOUSING |
| 17 |
0307708 |
RONDELLE GROWER |
| 18 |
0434632 |
MONTURE CAOUTCHOUC, inférieur This part replaces 0391710. |
| 19 |
0328078 |
SCREW, Mount |
| 20 |
0306314 |
L'WASHER,Scr,long |
| 21 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 22 |
0307708 |
RONDELLE GROWER |
| 23 |
0331051 |
EXHAUST DEFLECTOR |
| 24 |
0331155 |
GASKET, Exhaust deflector |
| 25 |
0306644 |
VIS, capteur de papillon |
| 26 |
0330499 |
EXHAUST HOUSING, Inner upper |
| 27 |
0346897 |
TUBE WATER, Inlet This part replaces 0321016. |
| 27 |
0346898 |
TUBE WATER, Inlet This part replaces 0321015. |
| 28 |
0305145 |
GROMMET |
| 29 |
0328655 |
GASKET, Megaphone to adapter |
| 30 |
0395119 |
ADAPTER, Exh. hsg. |
| 32 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 33 |
0306418 |
VIS, ancrage |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0328590 |
Adapter to powerhead |
| 38 |
0395539 |
RUBBER MOUNT ASSY., Upper |
| 41 |
0335612 |
SCREW, Upper This part replaces 0328692. |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0583967 |
GROUND LEAD This part replaces 0392520. |
| 44 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 45 |
0395844 |
STEERING BRACKET, ASSY., Stbd. |
| 47 |
0335553 |
TILT TUBE This part replaces 0321052. |
| 48 |
0333434 |
SEAL, Cover to adapter This part replaces 0328589. |
| 49 |
0320792 |
PIN |
| 52 |
0321054 |
SPRING CLIP |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0318273 |
Bolt hex retainer 1/2 in. |
| 57 |
0319886 |
SCREW |
| 58 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 60 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 61 |
0436541 |
ROD Assy, Thrust This part replaces 0387278. |
| 62 |
0321053 |
SORUBG,Thrust rod |
| 64 |
0396309 |
STERN BRACKET ASSEMBLY, Port This part replaces 0395843. |
| 65 |
0390442 |
LOCATING LEVER, Rod |
| 67 |
0327796 |
EXHASUT HSG,Inner lower |
| 67 |
0327797 |
EXHAUST HOUSING, Inner lower |
| 68 |
0328654 |
TUNING MEGAPHONE |
| 71 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 72 |
0303398 |
VIS, support This part replaces 0302030. |
| 73 |
0329109 |
SHOULDER SCREW |
| 76 |
0328742 |
NUT This part replaces 0306338. |
| 77 |
0330931 |
VIS, support supérieur |
| 78 |
0314956 |
STUD |
| 79 |
0323222 |
GASKET, Inner exh. hsg to meg |
| 80 |
0321735 |
SUPPORT, Stern bracket |
| 82 |
0303398 |
VIS, support |
| 83 |
0318612 |
SCREW, Bracket to cover |
| 84 |
0583359 |
SENDING UNIT ASSY This part replaces 0583132. |
| 90 |
0319682 |
VIS, capteur vers plaque |
| 91 |
0322376 |
NUT, Wiper, tilt tube |
| 92 |
0329748 |
SEAL Shift rod |
| 93 |
0329161 |
SCREW, Exhaust housing |
| 95 |
0511616 |
CLAMP, Cable |
| 96 |
0392123 |
ANODE |
| 97 |
0328049 |
SCREW |
| 98 |
0330929 |
PLATE, Upper mount |
| 99 |
0433458 |
ANODE, Port stern bracket This part replaces 0395780. |
| 100 |
0326248 |
SCREW |
| 101 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 102 |
0329743 |
STUD, Cover mount |
| 103 |
0349556 |
Washer This part replaces 0329749. |
| 104 |
0349557 |
MOUNT This part replaces 0328584. |
