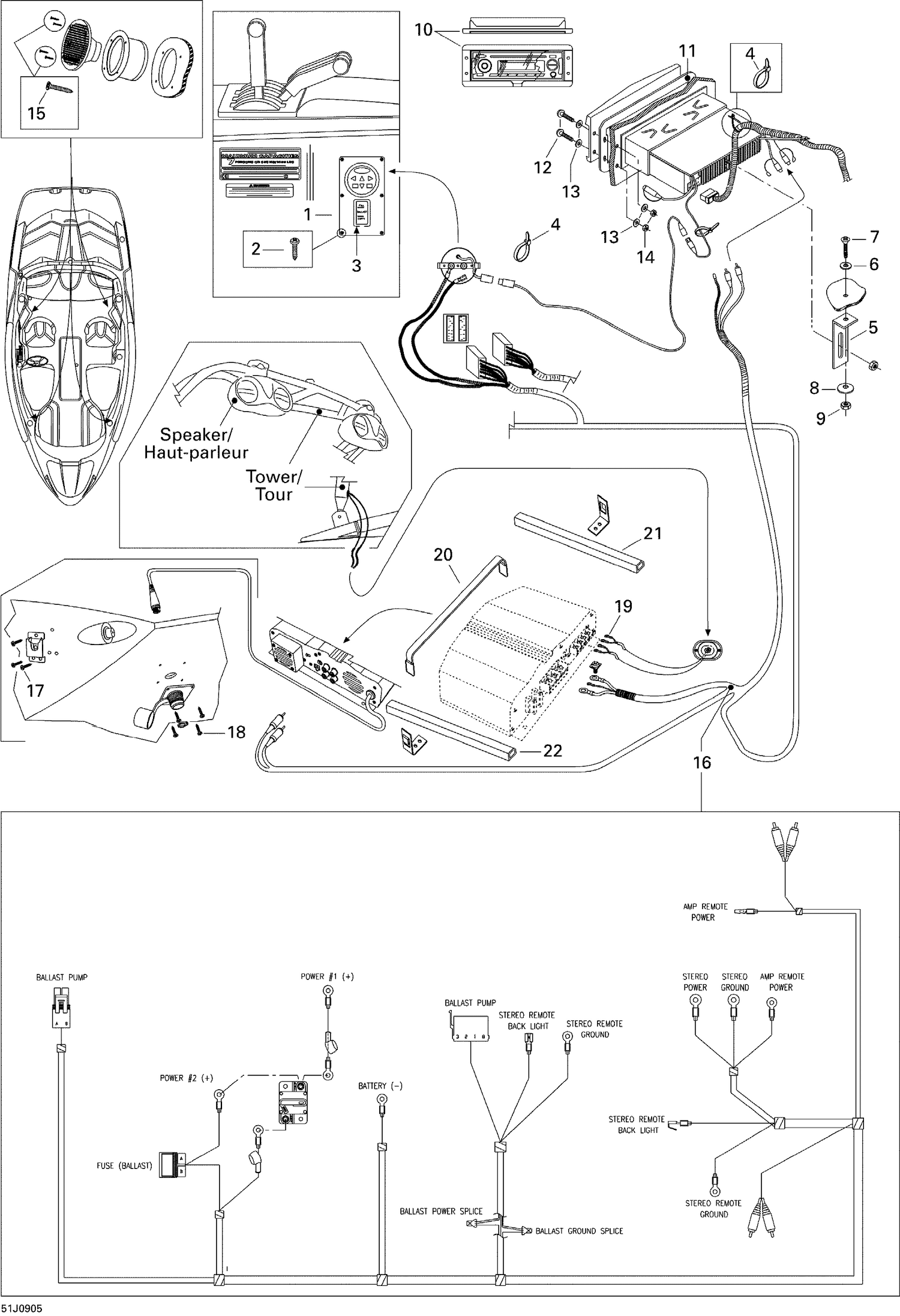

| Ref | Part Number | Description |
|---|
| 1 |
204471356 |
Switch/Remote Panel |
| 2 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 3 |
204471165 |
BALLAST SWITCH - Call your local BRP dealership |
| 4 |
293750001 |
Tie Wrap 94 mm |
| 5 |
204470837 |
RADIO SUPPORT - Call your local BRP dealership |
| 6 |
234061600 |
Stainless Flat Washer M6 |
| 7 |
208662060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
204470266 |
Radio Cover |
| 11 |
204470257 |
RADIO COVER GASKET - Call your local BRP dealership |
| 12 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 13 |
234040600 |
Flat Washer 4 mm |
| 14 |
232541600 |
Elastic Stop Nut M4 |
| 15 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 16 |
204471042 |
Accessory Harness, Wake |
| 17 |
209630960 |
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership |
| 18 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 19 |
204471087 |
Terminal Ring Connector |
| 20 |
293850097 |
Retainer Strap |
| 21 |
219704368 |
Seal Tray 1000Mm Long |
