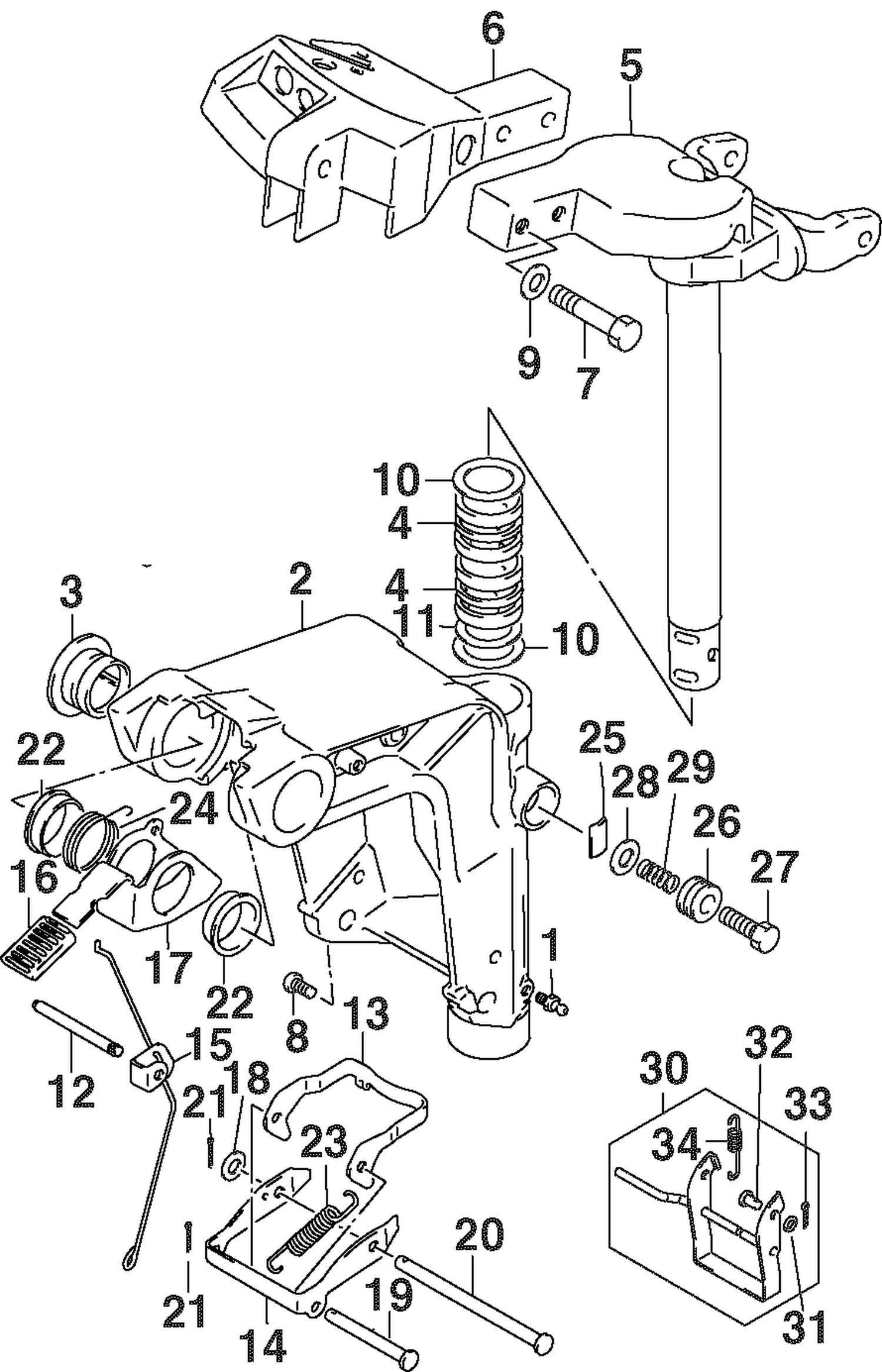

| Ref | Part Number | Description |
|---|
| 1 |
5030207 |
FITTING, GREASE |
| 3 |
5032058 |
BUSH |
| 4 |
5033170 |
BUSH |
| 7 |
5032761 |
BOLT (8X50mm) |
| 8 |
5030409 |
SCREW |
| 10 |
5032974 |
RONDELLE (27,5X47X2,0mm) |
| 11 |
5033008 |
JOINT TORIQUE (Ø : 3,1 Ø INT. : 26,2) |
| 12 |
5033166 |
AXE, BRAS DE DÉBLOCAGE |
| 13 |
5033172 |
ARM, REVERSE LOCK |
| 14 |
5033173 |
LINK, REVERSE LOCK ARM |
| 15 |
5033174 |
LINK, REVERSE |
| 16 |
5033175 |
KNOB, RELEASE LEVER |
| 17 |
5033176 |
LEVER RELEASE |
| 19 |
5032990 |
GOUPILLE |
| 20 |
5032991 |
GOUPILLE |
| 22 |
5033016 |
BUSH |
| 23 |
5034243 |
RESSORT, TIGE VERROUILLAGE DE MARCHE ARRIÈRE |
| 24 |
5033041 |
SPRING |
| 25 |
5033169 |
PLAQUE, DISPOSITIF DE RÉGLAGE DE DIRECTION |
| 26 |
5031499 |
CACHE, DISPOSITIF DE RÉGLAGE DE DIRECTION |
| 27 |
5032760 |
BOLT (8X30) |
| 29 |
5031284 |
SPRING |
| 30 |
5033177 |
SHALLOW WATER DRIVE ASSY |
