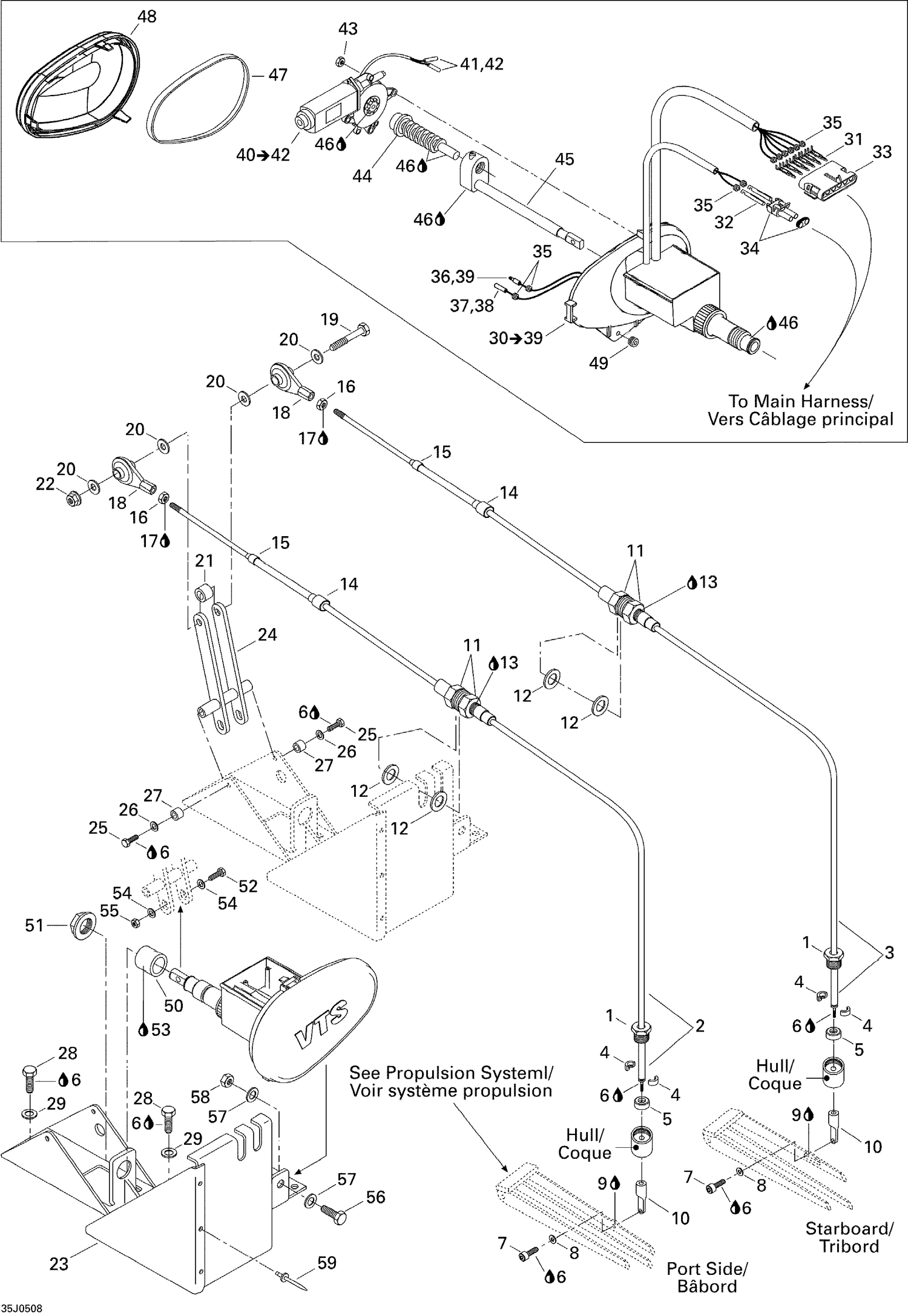

| Ref | Part Number | Description |
|---|
| 1 |
277001729 |
Steering Cable Lock This part replaces 277000052. |
| 2 |
204200113 |
LH Weedless Cable, Port Side |
| 3 |
204200114 |
RH Weedless Cable, Starboard |
| 4 |
204200009 |
HALF RING - Call your local BRP dealership |
| 5 |
204200118 |
THRU HULL SEAL - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204100138 |
Pivot Socket Screw M5 x 0.8 |
| 8 |
234052100 |
FLAT WASHER 5 MM - Call your local BRP dealership |
| 9 |
293550032 |
Jet Pump Bearing Grease, 110 G |
| 10 |
204200006 |
Joint |
| 11 |
212100006 |
Hex. Jam Nut |
| 12 |
213200017 |
Flat Washer |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
277000473 |
Boot, Large |
| 15 |
277000466 |
Boot, Small |
| 16 |
212100005 |
Hex. Nut |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
277000153 |
BALL JOINT - Call your local BRP dealership |
| 19 |
207067060 |
Hex. Screw M6 X 70 |
| 20 |
234062600 |
Flat Washer M6, Stainless |
| 21 |
204200112 |
NYLON SPACER - Call your local BRP dealership |
| 22 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 23 |
204471003 |
Weedless Support Ass'y |
| 24 |
204471006 |
Pivot-arm Ass'y |
| 25 |
207161660 |
Hex. Screw M6 X 16 |
| 26 |
234061600 |
Stainless Flat Washer M6 |
| 27 |
277000584 |
SPACER 6.7 MM - Call your local BRP dealership |
| 28 |
207163060 |
Hex. Screw M6 X 30 |
| 29 |
234061600 |
Stainless Flat Washer M6 |
| 31 |
278000222 |
Male Terminal |
| 32 |
278000223 |
Female Terminal |
| 33 |
278000156 |
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 34 |
278000220 |
Male Connector, 2 Circuits |
| 35 |
278000218 |
Wire Seal |
| 36 |
278001008 |
Insulated Sheath |
| 37 |
278001007 |
Insulated Sheath |
| 38 |
278001009 |
Female Terminal |
| 39 |
278000230 |
Male Terminal |
| 41 |
278000231 |
Insulation Sheath |
| 42 |
278000230 |
Male Terminal |
| 43 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 44 |
278000428 |
Worm Screw |
| 45 |
278001698 |
Sliding Block Ass’y |
| 46 |
293550010 |
Synthetic Grease, 400 G |
| 47 |
293200027 |
GASKET - Call your local BRP dealership |
| 48 |
278000595 |
V.T.S. COVER - Call your local BRP dealership |
| 49 |
293720015 |
GROMMET - Call your local BRP dealership |
| 50 |
204470857 |
ABS SPACER - Call your local BRP dealership |
| 51 |
211100020 |
SPECIAL NUT M27 - Call your local BRP dealership |
| 52 |
207164060 |
Hex. Screw M6 X 40 |
| 53 |
293550032 |
Jet Pump Bearing Grease, 110 G |
| 54 |
234062600 |
Flat Washer M6, Stainless |
| 55 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 56 |
207183060 |
Hex. Screw M8 X 30 |
| 57 |
234080600 |
Flat Washer M8, Stainless |
| 58 |
232581600 |
Hex. Elastic Nut M8 |
