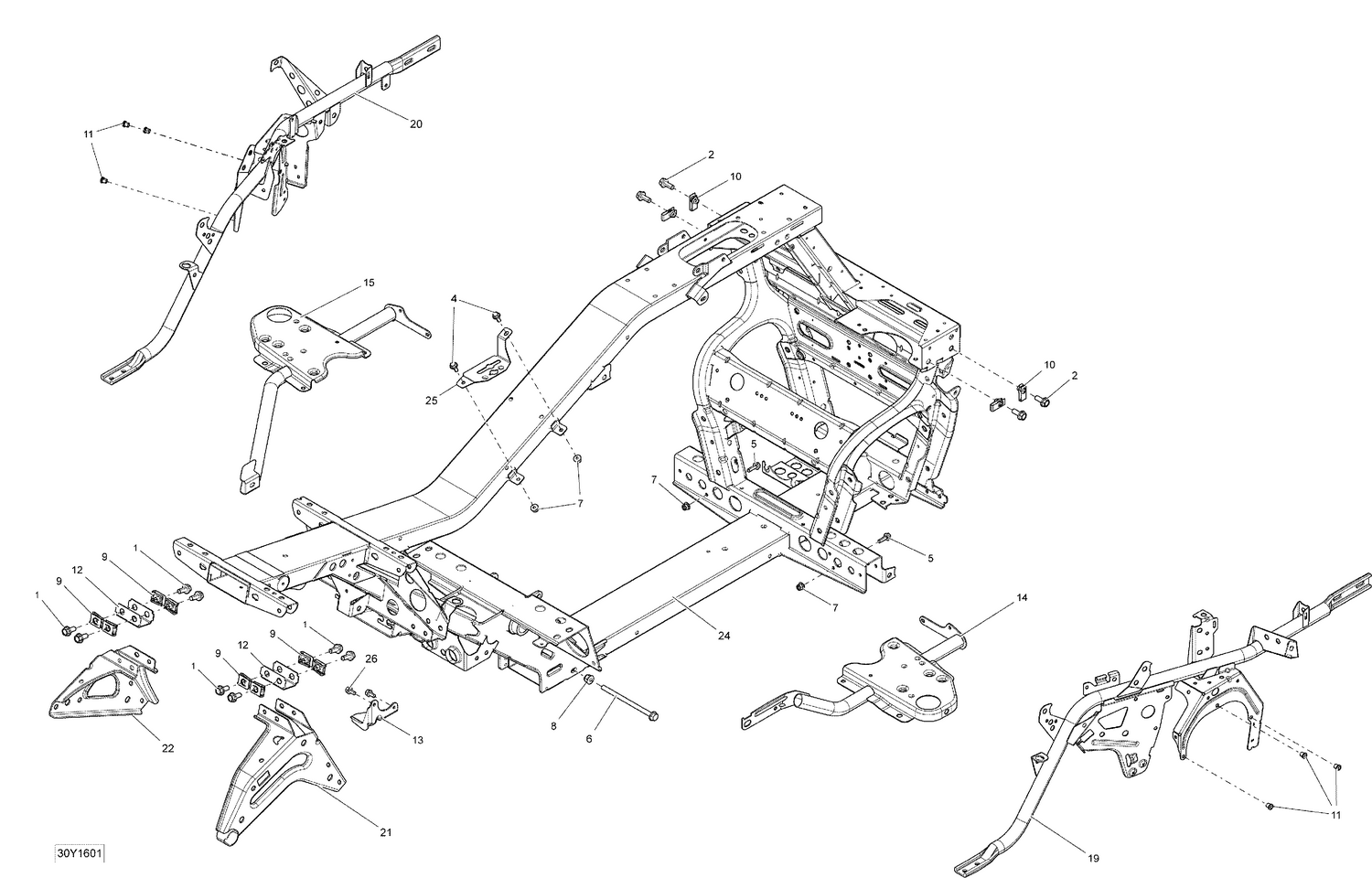

09- Frame
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207581844 | HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 | 207661646 | Hex. Flange Screw M6 X 16 |
| 5 | 207662044 | Hex. Flange Screw M6 X 20 |
| 6 | 230683034 | Hex. Flange Screw M8 X 130 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 233261466 | Hex. Flange Elastic Nut M6 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 250100069 | Panel Nut M8 X 1.25 |
| 10 | 250100118 | Panel Nut M8 X 1.25 |
| 11 | 293450268 | Insert M5 X 0.8 |
| 12 | 705202484 | U-Bracket |
| 13 | 705202587 | Stopper Swing Arm |
| 14 | 705202625 | RH Painted Lower Lateral Support |
| 15 | 705202626 | LH Painted Lower Lateral Support |
| 19 | 705203016 | RH Painted Lateral Support Ass'y |
| 20 | 705203017 | LH Painted Lateral Support Ass'y |
| 21 | 705203959 | Rear Support RH |
| 22 | 705203969 | Rear Support LH |
| 24 | 705204866 | Frame |
| 25 | 705205078 | Latch Support |
