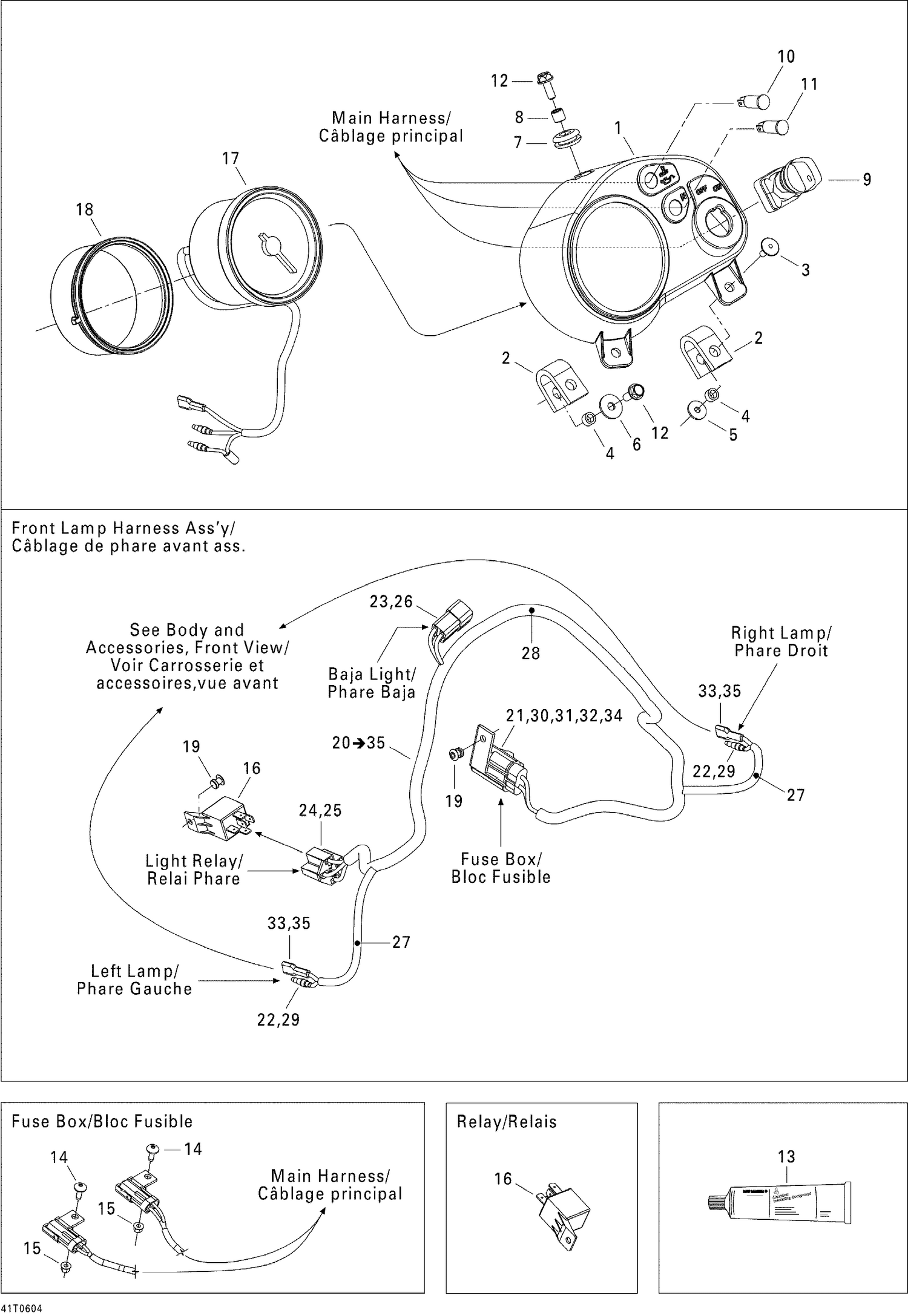

| Ref | Part Number | Description |
|---|
| 1 |
710000250 |
DASHBOARD - Call your local BRP dealership |
| 2 |
710000505 |
HOLDER - Call your local BRP dealership |
| 3 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 4 |
293900104 |
Bushing This part replaces 293900029. |
| 5 |
517124300 |
Washer |
| 6 |
224061201 |
Flat Washer |
| 7 |
709000582 |
Grommet This part replaces 293720053. |
| 8 |
293900105 |
Bushing This part replaces 293900045. |
| 9 |
710000075 |
IGNITION SWITCH - Call your local BRP dealership |
| 10 |
710000062 |
Pilot Lamp, Red |
| 11 |
710000240 |
PILOT LAMP, GREEN - Call your local BRP dealership |
| 12 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 13 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 14 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 15 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 16 |
710010053 |
Relay This part replaces 410113200. |
| 17 |
710000426 |
TACHOMETER - Call your local BRP dealership |
| 18 |
710000427 |
GAUGE SUPPORT - Call your local BRP dealership |
| 19 |
390402000 |
Pop Rivet 3/16" |
| 21 |
278000805 |
Cushion |
| 22 |
278000230 |
Male Terminal |
| 23 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 24 |
409209900 |
Female Housing, 5 Circuits |
| 25 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 26 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 27 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 28 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 29 |
278001008 |
Insulated Sheath |
| 30 |
278000343 |
Fuse, 15 Amperes |
| 31 |
278001326 |
Fuse Holder Cap |
| 32 |
278001325 |
Fuse Holder |
| 33 |
710000115 |
Rubber Envelope Terminal |
| 34 |
710000113 |
Female Terminal |
