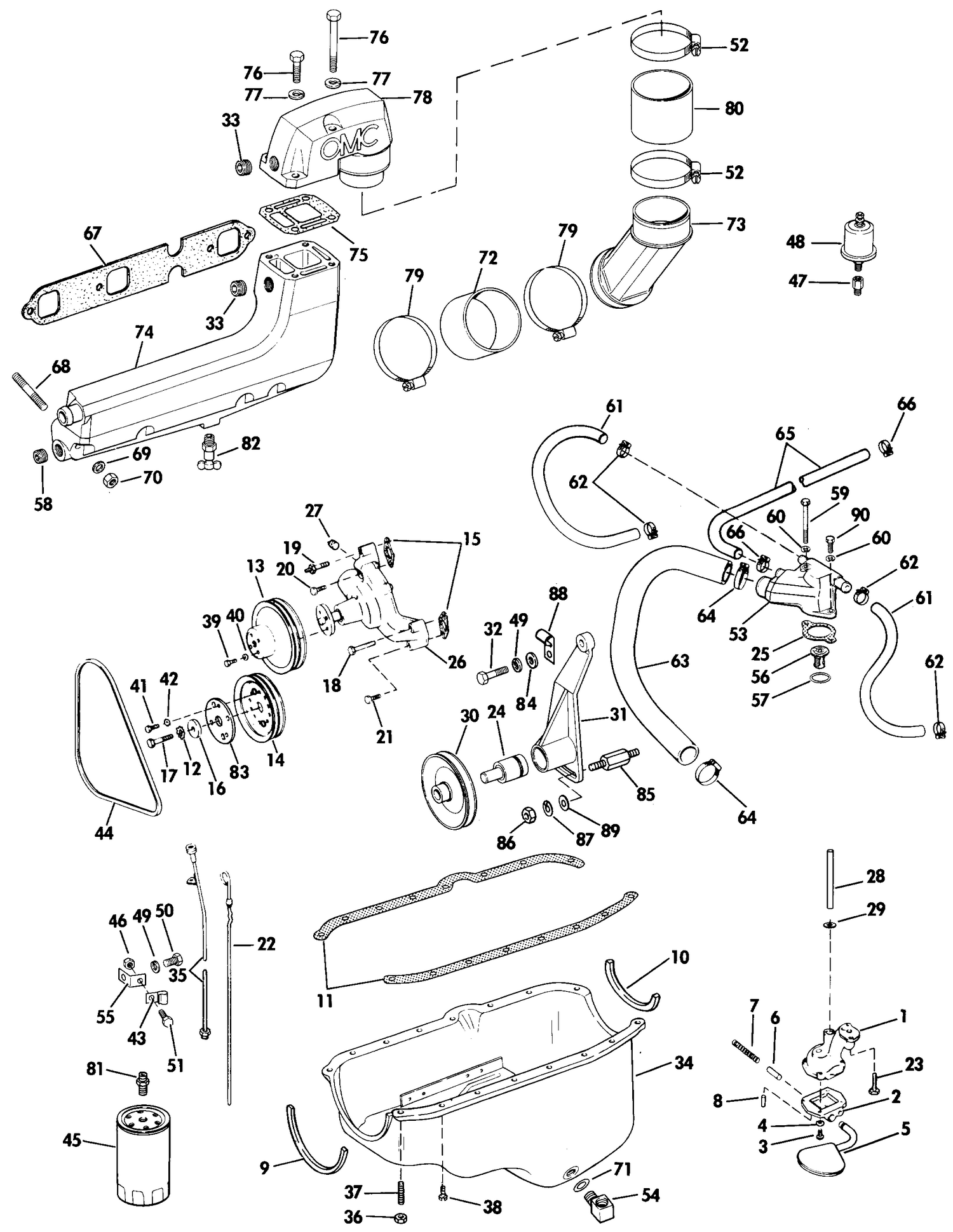

| Ref | Part Number | Description |
|---|
| 1 |
3764547 |
OIL PUMP ASSEMBLY |
| 2 |
3836980 |
COVER, Pump |
| 3 |
0133043 |
BOLT, Cover to pump |
| 4 |
9421423 |
LOCKWASHER, Switch attach |
| 5 |
3855152 |
PICK-UP SCREEN |
| 6 |
3702366 |
VALVE, Pressure regulator |
| 7 |
3814903 |
SPRING, Regulator valve |
| 8 |
0103677 |
PIN, Pressuer regulator |
| 9 |
0357159 |
SEAL, Front |
| 10 |
0458625 |
SEAL, Rear |
| 11 |
14079397 |
GASKET SET, Oil pan |
| 12 |
0135857 |
LOCKWASHER |
| 13 |
3927796 |
PULLEY, Water pump |
| 14 |
3744043 |
PULLEY, Crankshaft |
| 15 |
3754587 |
GASKET, Pump to block |
| 16 |
14060682 |
WASHER |
| 17 |
9440024 |
BOLT |
| 18 |
0454906 |
BOLT, Manifold, holes #1 & 2 left side, holes #5 & 6 right side |
| 19 |
3759755 |
STUB, Water pump, lower (RH) |
| 20 |
0454908 |
BOLT, Washer pump, lower (rh) |
| 21 |
0454467 |
BOLT, Manifold to head (#1,#2) |
| 22 |
14088688 |
GAUGE, Oil level |
| 23 |
3892678 |
BOLT, Hex, oil pump to block |
| 24 |
0980669 |
TUBE SERVICE KIT This part replaces 0908076. |
| 25 |
3701777 |
GASKET, Nipple to hsg |
| 26 |
3853850 |
WATER PUMP ASSY. This part replaces 0980477. |
| 27 |
0444746 |
PLUG, 1/2-1/4 |
| 28 |
3998287 |
SHAFT, Distributor to oil pump |
| 29 |
3764554 |
RETAINER, Distibutor to oil pump |
| 30 |
0982709 |
PULLEY, Idler |
| 31 |
0910492 |
BRACKET, Idler pulley |
| 32 |
0310896 |
SCREW |
| 33 |
0315713 |
PIPE PLUG, High rise |
| 34 |
14014491 |
OIL PAN |
| 35 |
0984300 |
TUBE ASSY, Oil drain This part replaces 0983062. |
| 36 |
9417954 |
NUT, Oil pan |
| 37 |
0358099 |
STUD, oil pan |
| 38 |
5950740 |
Gasket This part replaces 0460578. |
| 39 |
0306861 |
SCREW |
| 41 |
0306865 |
SCREW, Crankshaft pulley |
| 42 |
0120177 |
L'WASHER, Alternator to brkt |
| 43 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 44 |
0311606 |
BELT |
| 44 |
3852504 |
BELT, Alternator This part replaces 0910371. |
| 45 |
0502903 |
OIL FILTER This part replaces 0173834. |
| 46 |
0311375 |
NUT This part replaces 0316659. |
| 47 |
3855776 |
ADAPTER, Oil sender This part replaces 0910232. |
| 48 |
3853800 |
OIL PRESSURE SENDER This part replaces 0982650. |
| 49 |
0120177 |
L'WASHER, Alternator to brkt |
| 50 |
0311415 |
SCREW, Cable clamp |
| 51 |
0306487 |
SCREW |
| 52 |
0980021 |
CLAMP, Boot to trim motor |
| 53 |
3850360 |
HOUSING, Thermostat This part replaces 0910179. |
| 54 |
0908484 |
ELBOW OIL DRAIN PAN |
| 55 |
0910566 |
BRACKET, Tube to engine |
| 56 |
0383307 |
TERMOSTAT ASSEMBLY |
| 58 |
0908276 |
CAP PLUG |
| 59 |
0315340 |
SCREW, Alternator to bracket |
| 60 |
0120177 |
L'WASHER, Alternator to brkt |
| 61 |
3852746 |
HOSE, Thermostat hsg. to manifold This part replaces 0910167. |
| 61 |
HOSE, |
Thermo housing to manifold, stbd |
| 62 |
0912627 |
CLAMP This part replaces 0313851. |
| 63 |
0312781 |
HOSE, Housing to water pump |
| 65 |
0910160 |
HOSE, Intermediate housing to thermo |
| 65 |
0910165 |
HOSE, Cooler to thermo hsg |
| 66 |
0979803 |
CLAMP |
| 67 |
3853412 |
GASKET, Manifold to engine This part replaces 0910157. |
| 68 |
0909222 |
STUD, Exh manifold |
| 69 |
0120177 |
L'WASHER, Alternator to brkt |
| 70 |
0908700 |
NUT |
| 72 |
0909371 |
HOSE, Elbow to adapter |
| 73 |
0910163 |
EXHAUST ELBOW |
| 74 |
0910114 |
EXHAUST MANIFOLD, Port |
| 74 |
0910156 |
EXHAUST MANIFOLD, Stbd |
| 75 |
0910113 |
GASKET, Elbow |
| 76 |
0311390 |
BUSHING |
| 76 |
0312997 |
SCREW, Adapter to engine |
| 77 |
0120177 |
L'WASHER, Alternator to brkt |
| 78 |
0910158 |
HIGH RISE ELBOW |
| 79 |
3852604 |
CLAMP, Exhaust This part replaces 0981323. |
| 80 |
0910168 |
HOSE, High rise to elbow |
| 81 |
14081300 |
FITTING, Oil filter |
| 82 |
0379957 |
PETCHOCK ASSY, Water drain |
| 83 |
3852505 |
PULLEY, Crankshaft This part replaces 0911287. |
| 85 |
3853402 |
STUD, Bracket to engine This part replaces 0910527. |
| 89 |
0305486 |
WASHER |
