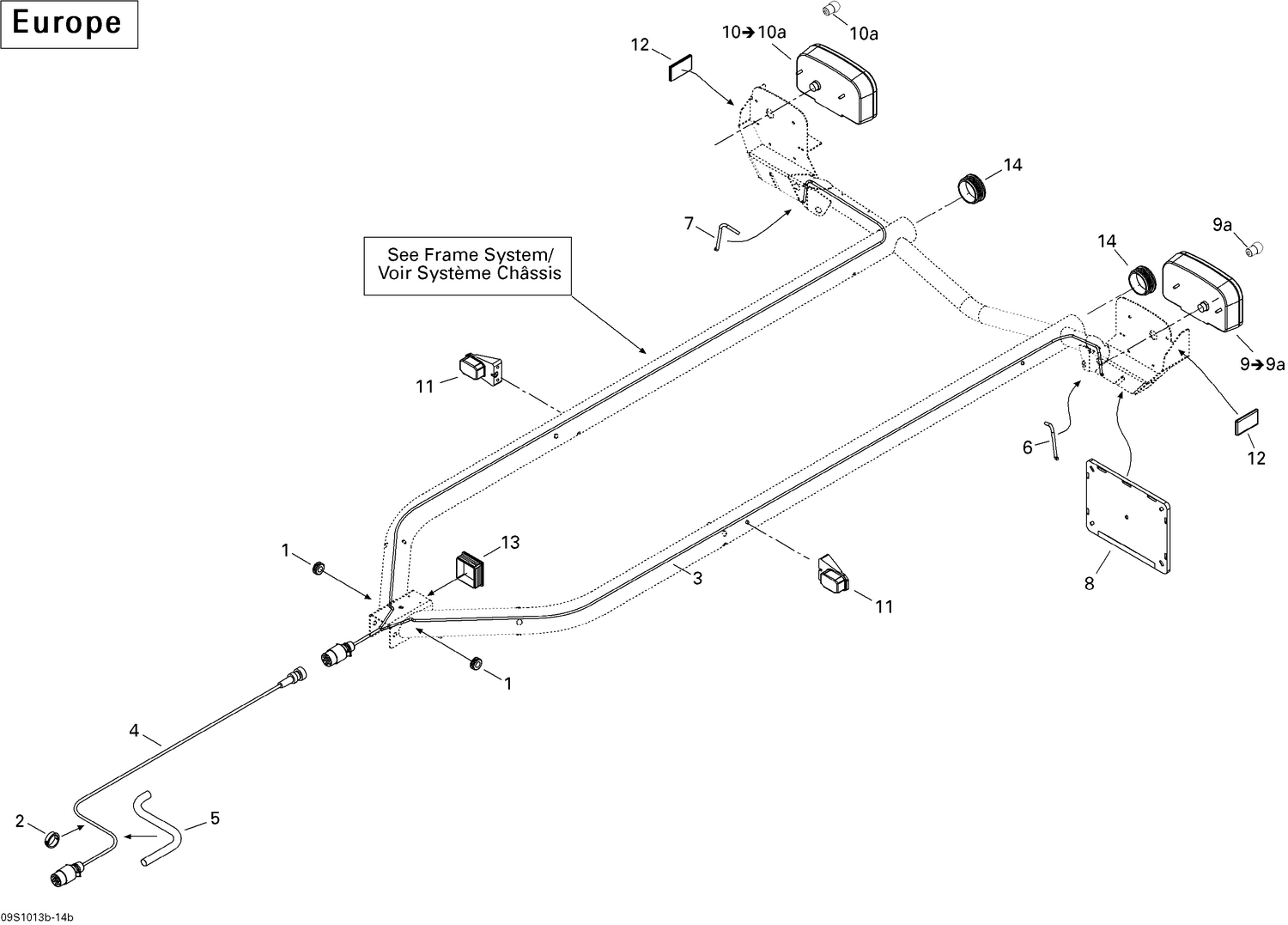

10- Electrical System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 269800143 | Protector |
| 2 | 269800283 | Protector |
| 3 | 278002559 | REAR HARNESS ASS'Y - Call your local BRP dealership |
| 4 | 278002584 | Front Harness Ass'y |
| 5 | 219704398 | Was 409901600 Tubing 19mm |
| 6 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 7 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 8 | 262000100 | Plate Support |
| 9a | Not | Available As Spare Part - Bulb |
| 10a | Not | Available As Spare Part - Bulb |
| 11 | 278002557 | Front Light |
| 12 | Not | Available As Spare Part - Reflector |
| 13 | 262000053 | CAP - Call your local BRP dealership |
