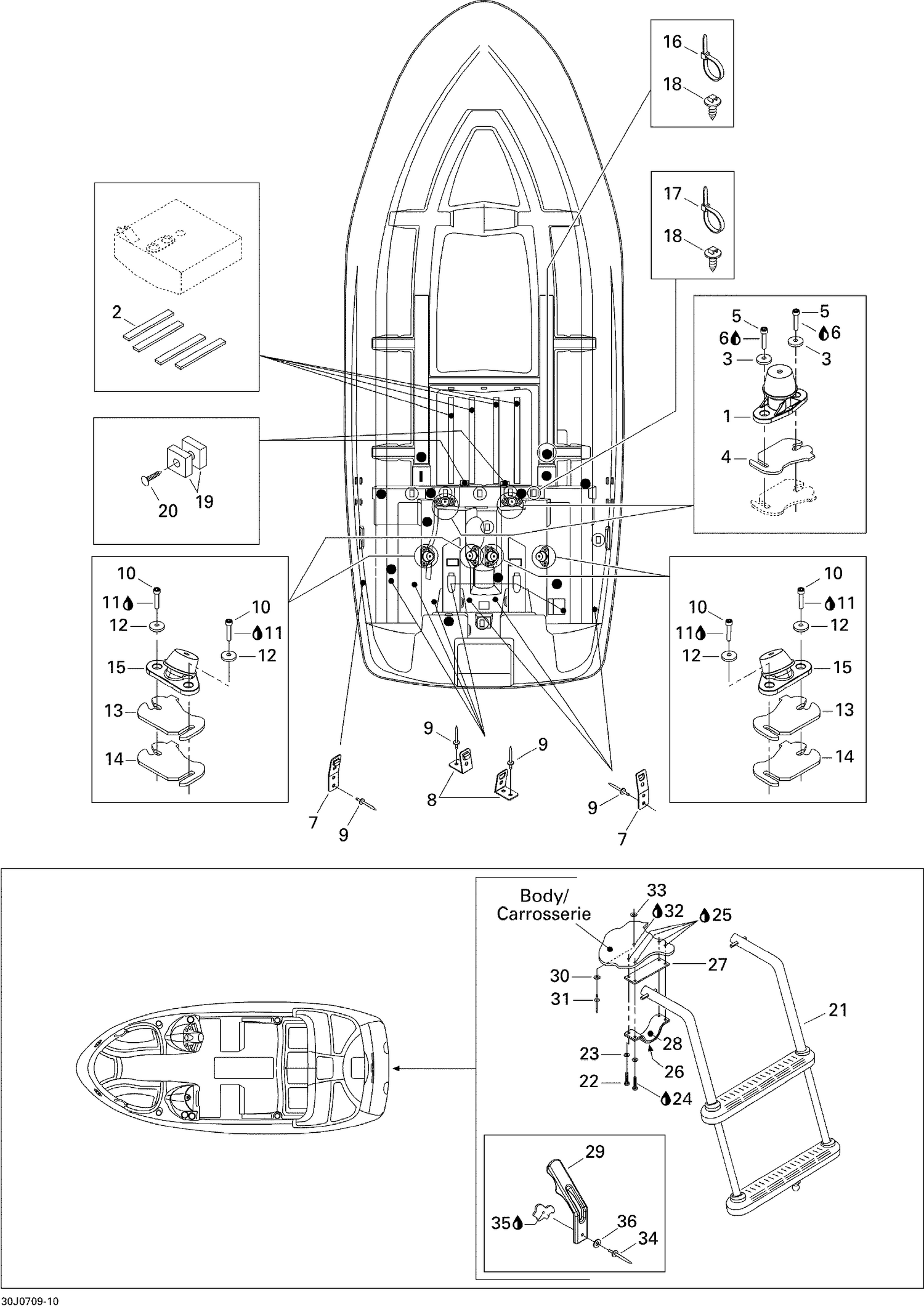

09- Lower Hull
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 270001096 | Engine Support Ass'y This part replaces 270000690. |
| 2 | 204560115 | PROTECTOR PAD - Call your local BRP dealership |
| 3 | 250200018 | Cone Washer |
| 4 | 0460868 | NEEDS DESCRIPTION This part replaces 204250048. |
| 5 | 205084560 | Socket Head Screw M8 X 45 |
| 6 | 293800060 | Loctite 243, 10 ml |
| 7 | 293850024 | STRAP CLIP - Call your local BRP dealership |
| 8 | 204060017 | Strap Clip 90° |
| 9 | 293150037 | Avdel Rivet 3/16" |
| 10 | 205084060 | SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 11 | 293800060 | Loctite 243, 10 ml |
| 12 | 250200018 | Cone Washer |
| 13 | 270000445 | SHIM 0.3 MM - Call your local BRP dealership |
| 14 | 270000762 | Shim 1.3 mm This part replaces 270000446. |
| 15 | 270001081 | Engine Support Ass'y This part replaces 270000688. |
| 16 | 293750008 | Tie Wrap 368 mm |
| 17 | 414115200 | Tie-Rap 180 mm |
| 18 | 293730040 | Mount Dart |
| 19 | 204060684 | RUBBER PAD - Call your local BRP dealership |
| 20 | 293730014 | Black Dart |
| 21 | 204060186 | LADDER - Call your local BRP dealership |
| 22 | 207163560 | Hex. Screw M6 X 35 |
| 23 | 234161601 | Lock Washer Helical M6 |
| 24 | 293800060 | Loctite 243, 10 ml |
| 25 | 296000309 | Silicone Sealant 51388, 300 ml |
| 26 | 204060055 | LADDER CLIP - Call your local BRP dealership |
| 27 | 204060057 | PROTECTOR 97 - Call your local BRP dealership |
| 28 | 204060056 | PROTECTOR 158 - Call your local BRP dealership |
| 29 | 570027100 | Hood Latch |
| 30 | 234062600 | Flat Washer M6, Stainless |
| 31 | 293150043 | Pop Rivet 3/16" |
| 32 | 296000309 | Silicone Sealant 51388, 300 ml |
| 33 | 234051600 | Flat Washer M5, Stainless |
| 34 | 293150013 | Pop Rivet 3/16" |
| 35 | 296000309 | Silicone Sealant 51388, 300 ml |
