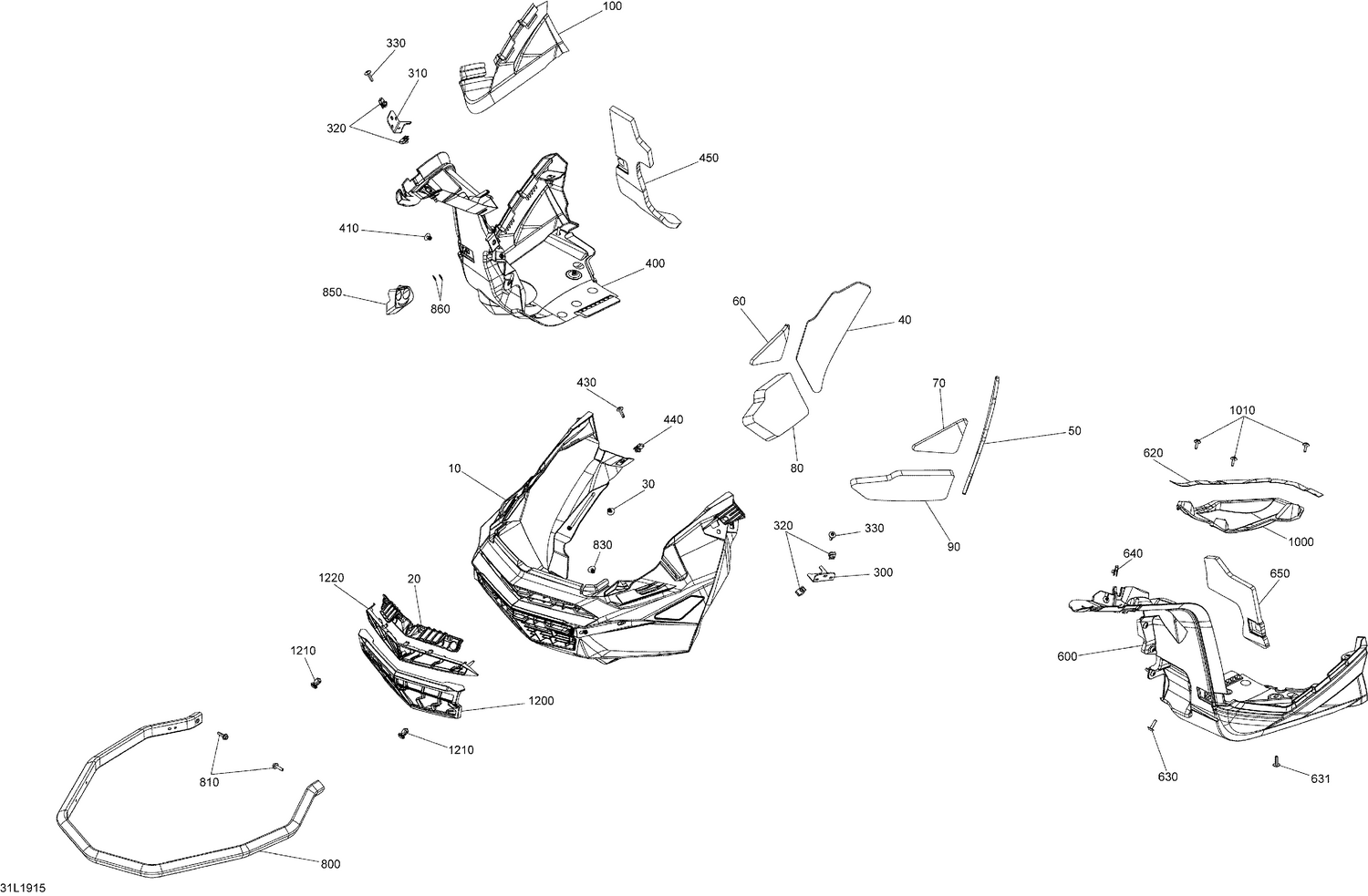

09- Bottom Pan Rave - 600 Racing
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007673 | Bottom Pan - Front |
| 20 | 502007810 | Hood Catch |
| 30 | 293150104 | Pop Rivet 3/16 |
| 40 | 502007788 | Foam This part replaces 502007463. |
| 50 | 502007789 | Foam This part replaces 502007653. |
| 60 | 502007545 | RH Bottom Pan Central Foam |
| 70 | 502007546 | LH Bottom Pan Central Foam |
| 80 | 502007800 | Foam This part replaces 502007465. |
| 90 | 502007799 | Foam This part replaces 502007466. |
| 100 | 508000911 | Heat Shield |
| 300 | 502007723 | LH Screw Plate |
| 310 | 502007724 | RH Screw Plate |
| 320 | 250000958 | Panel Nut M5 X 0.8 |
| 330 | 250000586 | Torx Truss M5 X 20 |
| 400 | 502007952 | RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16 |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 502008397 | RH Upper Bottom Pan Foam This part replaces 502007695. |
| 600a | 502007930 | LH Bottom Pan |
| 620 | 293250427 | Neoprene Seal |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 650 | 502008398 | LH Upper Bottom Pan Foam This part replaces 502007697. |
| 800 | 502007861 | Pare-Choc |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16 |
| 850 | 502007844 | Rubber Protector |
| 860 | 732610072 | Push Nut |
| 1000 | 502007670 | Protection Plate |
| 1010 | 250000725 | Screw M4 X 16 |
| 1200 | 508000960 | Belly Pan Filter |
| 1210 | 293150230 | Tuflok Plastic Rivet |
