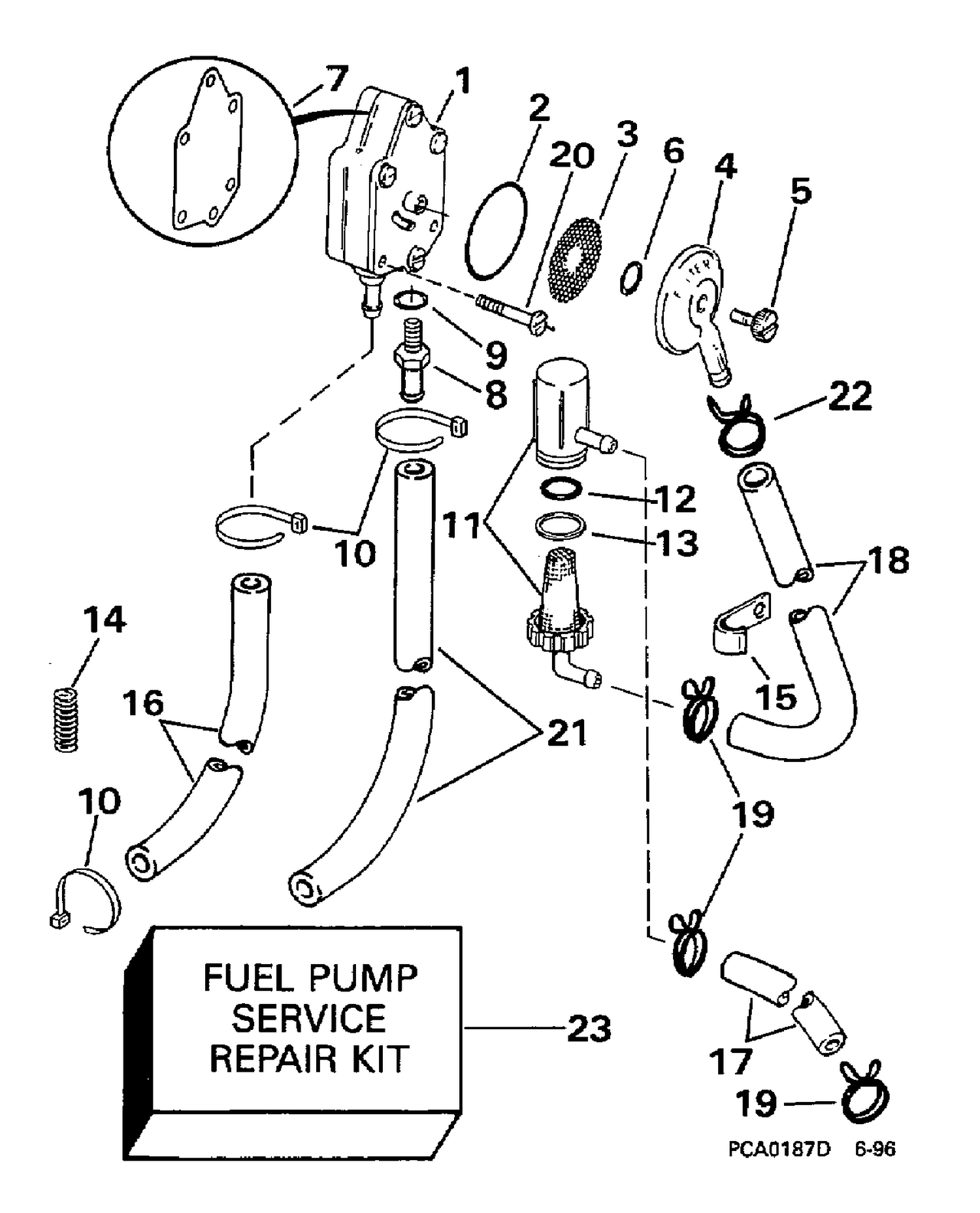

FUEL PUMP & FILTER - "Z" MODEL SUFFIX ONLY
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438557 | FUEL PUMP Assy |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | 0397715 | FILTER, Fuel |
| 14 | 0315942 | SPRING |
| 15 | 0330151 | CLAMP, Harness to oil tank boss |
| 16 | HOSE, | Pump to crankcase, 5 1/4 in. (133mm) |
| 17 | 0333395 | HOSE, Connector to filter |
| 18 | 0334131 | FLEXIBLE, impulsions |
| 19 | 0339278 | COLLIER DE SERRAGE |
| 20 | 0328717 | NUT, Ground lead |
| 21 | HOSE, | Pump to manifold, 10 3/4 in. (273mm) |
| 22 | 0339279 | COLLIER DE SERRAGE, conduite de carburant |
