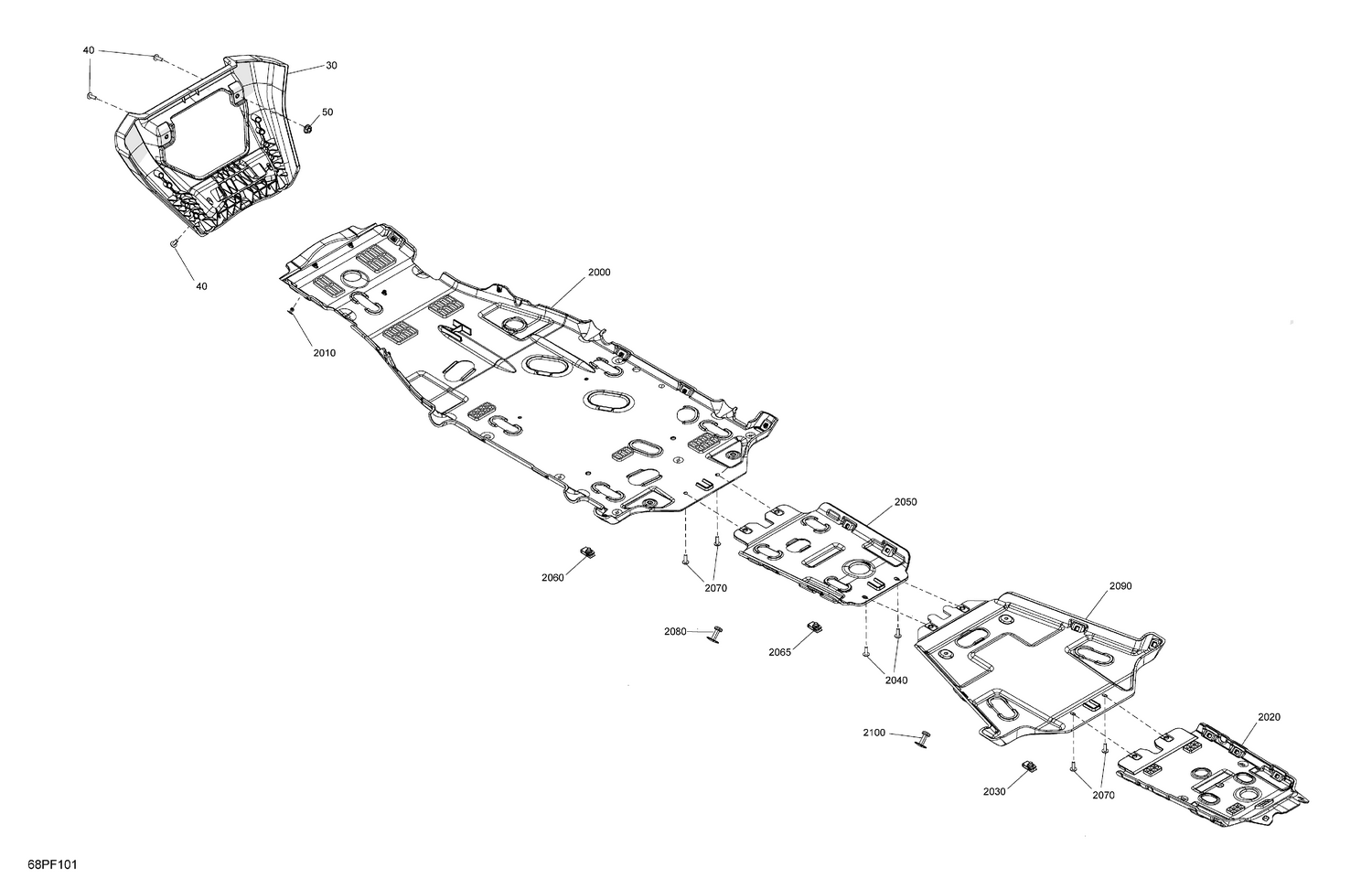

07- Body - Skid Plate
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 705014900 | Front Skid Plate |
| 40 | 250001257 | Screw Torx M6 X 20 |
| 50 | 233161414 | Hex. Flange Nut M6 |
| 2000 | 705018715 | Central Skid Plate Short |
| 2010 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 2020 | 705014893 | Lower Rear Skid Plate |
| 2030 | 250100198 | Panel Nut M6 X 1.0 |
| 2040 | 250001257 | Screw Torx M6 X 20 |
| 2050 | 705018498 | Central Skid Plate |
| 2060 | 250100198 | Panel Nut M6 X 1.0 |
| 2065 | 250100198 | Panel Nut M6 X 1.0 |
| 2070 | 250001257 | Screw Torx M6 X 20 |
| 2080 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 2090 | 705018772 | Central Skid Plate |
