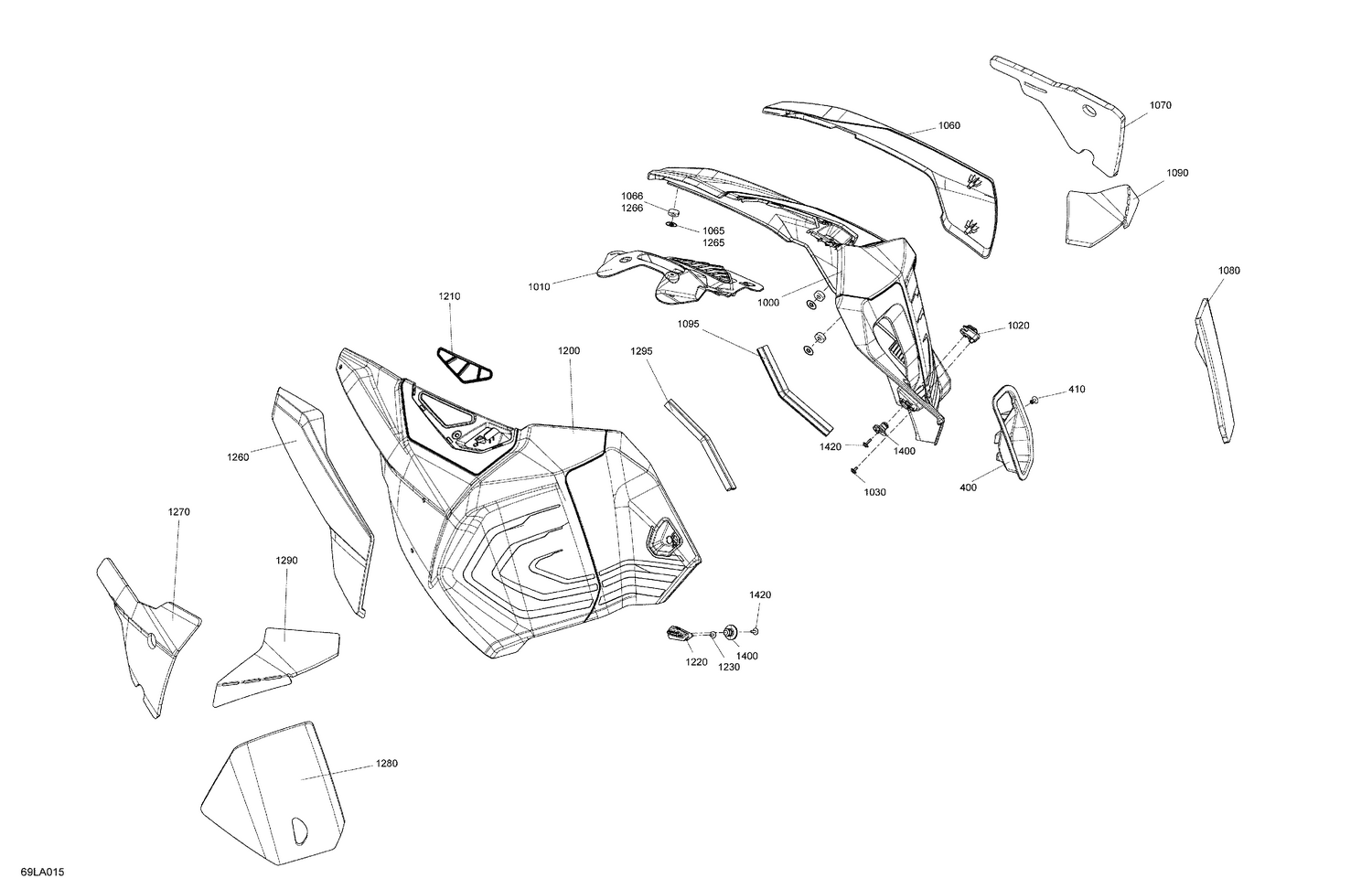

07- Body - Side Panels
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 400 | 517306302 | Reverse Lever Trim |
| 410 | 293150104 | Pop Rivet 3/16 |
| 1000 | 517306806 | RH Side Panel 16" With Wing Holes |
| 1010 | 517306769 | RH Grill |
| 1020 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1060 | 517306610 | White, RH Air Deflector |
| 1065 | 508000853 | Push Nut |
| 1066 | 517306809 | Rubber Damper |
| 1070 | 517308470 | RH Central Side Panel Foam This part replaces 517306574. |
| 1080 | 517306575 | RH Rear Side Panel Foam |
| 1090 | 517306576 | RH Upper Side Panel Foam |
| 1095 | 293250047 | Neoprene Seal ( 3 Meters per pack ) |
| 1200 | 517306807 | LH Side Panel 16" With Wing Holes |
| 1210 | 517306705 | LH Air Intake Grid |
| 1220 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1260 | 517306612 | White, LH Air Deflector |
| 1265 | 508000853 | Push Nut |
| 1266 | 517306809 | Rubber Damper |
| 1270 | 517306577 | LH Central Side Panel Foam |
| 1280 | 517306578 | LH Rear Side Panel Foam |
| 1290 | 517306579 | LH Upper Side Panel Foam |
| 1295 | 293250047 | Neoprene Seal ( 3 Meters per pack ) |
| 1400 | 517305985 | Rear Stud |
