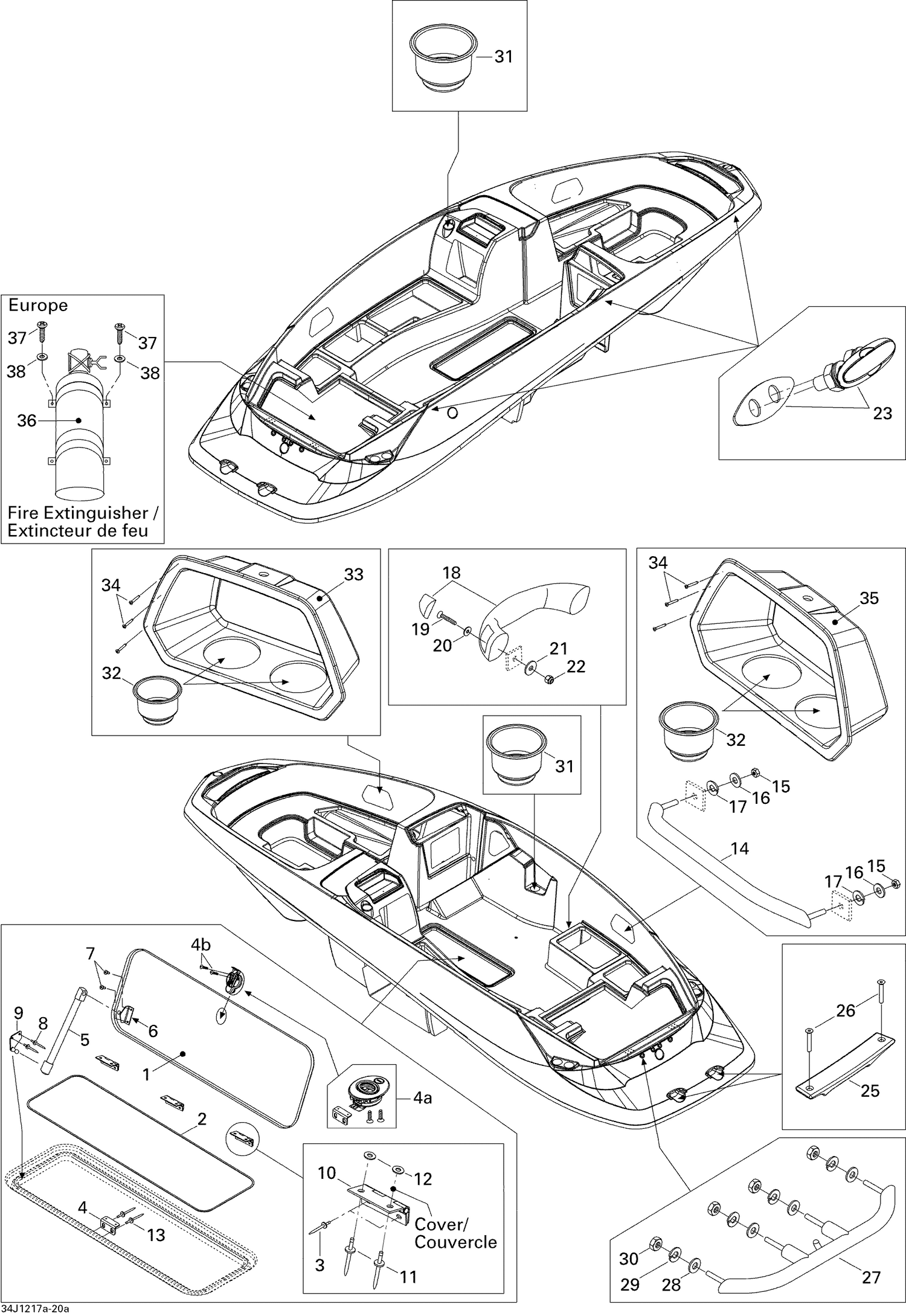

| Ref | Part Number | Description |
|---|
| 1 |
291003660 |
SKI LOCKER LID - Call your local BRP dealership |
| 2 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 3 |
293150037 |
Avdel Rivet 3/16" |
| 4a |
291003415 |
Latch, Stainless Steel |
| 4b |
208652560 |
Phillips Screw M5 X 25 |
| 5 |
204072218 |
GAS SHOCK - Call your local BRP dealership |
| 6 |
204073074 |
Shock Bracket |
| 7 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 8 |
293150043 |
Pop Rivet 3/16" |
| 9 |
204072219 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 10 |
204072601 |
HINGE - Call your local BRP dealership |
| 11 |
293150088 |
Pop Rivet 3/16" |
| 12 |
234051600 |
Flat Washer M5, Stainless |
| 13 |
293150039 |
Pop Rivet 3/16" |
| 14 |
204073792 |
GRAB HANDLE ASS. - Call your local BRP dealership |
| 15 |
204100052 |
HEX. NUT 5/16?-18 - Call your local BRP dealership |
| 16 |
234082600 |
Flat Washer 8 mm, Stainless |
| 17 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 18 |
204073190 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 19 |
205464060 |
Socket Screw M6 X 40 |
| 20 |
234061600 |
Stainless Flat Washer M6 |
| 21 |
234082600 |
Flat Washer 8 mm, Stainless |
| 22 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 23 |
262000154 |
PULL-UP CLEAT - Call your local BRP dealership |
| 25 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 26 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 27 |
204073442 |
SKI-TOW HANDLE - Call your local BRP dealership |
| 28 |
234002600 |
Flat Washer 10 mm, Stainless |
| 29 |
234181601 |
Lock Washer 8 mm, Stainless |
| 30 |
204100052 |
HEX. NUT 5/16?-18 - Call your local BRP dealership |
| 31 |
204073519 |
CUP HOLDER - Call your local BRP dealership |
| 32 |
204073519 |
CUP HOLDER - Call your local BRP dealership |
| 33 |
291003681 |
BOX-COAMING ASSY - Call your local BRP dealership |
| 34 |
250000090 |
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 35 |
291003683 |
Coaming Box, Port Side |
| 35 |
291003684 |
Coaming Box, Starboard |
