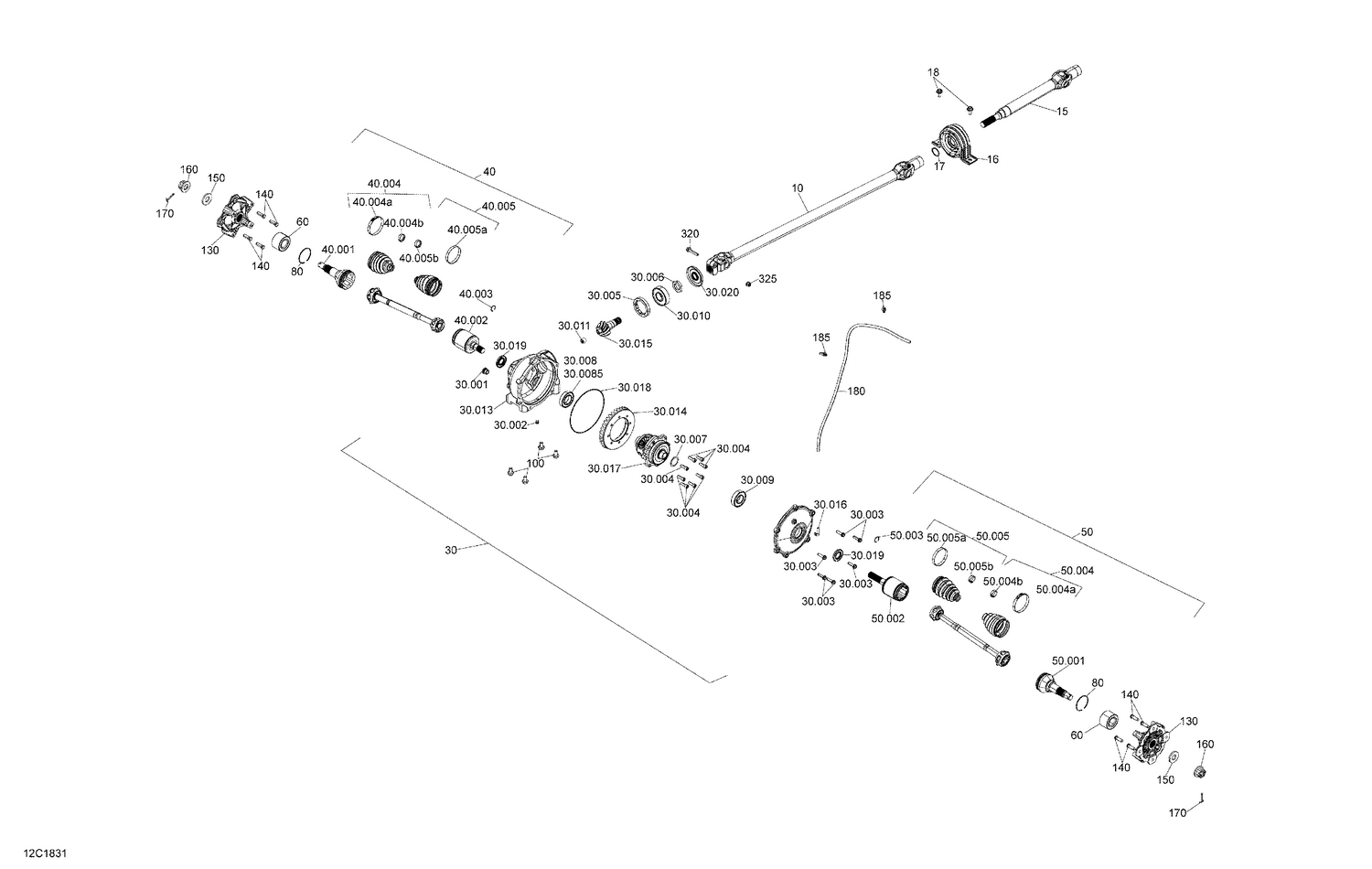

07- Front Drive - Maverick Trail
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900400 | Fixed Yoke |
| 10b | 715900401 | Yoke |
| 10c | 715900402 | J-Joint Cross Kit |
| 15a | 715900401 | Yoke |
| 15b | 715900402 | J-Joint Cross Kit |
| 16 | 705403522 | Ball Bearing Ass'y This part replaces 705401938. |
| 17 | 293370098 | Snap Ring |
| 18 | 207502046 | Hex. Flange Screw M10 X 20 |
| 60 | 293350150 | Ball Bearing This part replaces 293350118. |
| 80 | 293370019 | Circlip |
| 100 | 207502046 | Hex. Flange Screw M10 X 20 |
| 130 | 705502338 | Wheel Hub |
| 140 | 250300055 | Wheel Stud M10 X 1.25 |
| 150 | 250200170 | Conical Spring Washer M20 |
| 160 | 250100193 | Castle Nut M20 |
| 170 | 250400084 | Cotter Pin |
| 180 | 219704389 | Polyurethane Hose 4000MM Long |
| 185 | 710003168 | Dart Tie Rap 200MM |
| 320 | 250001050 | Hex. Flange Screw M8 X 42 This part replaces 250000952. |
