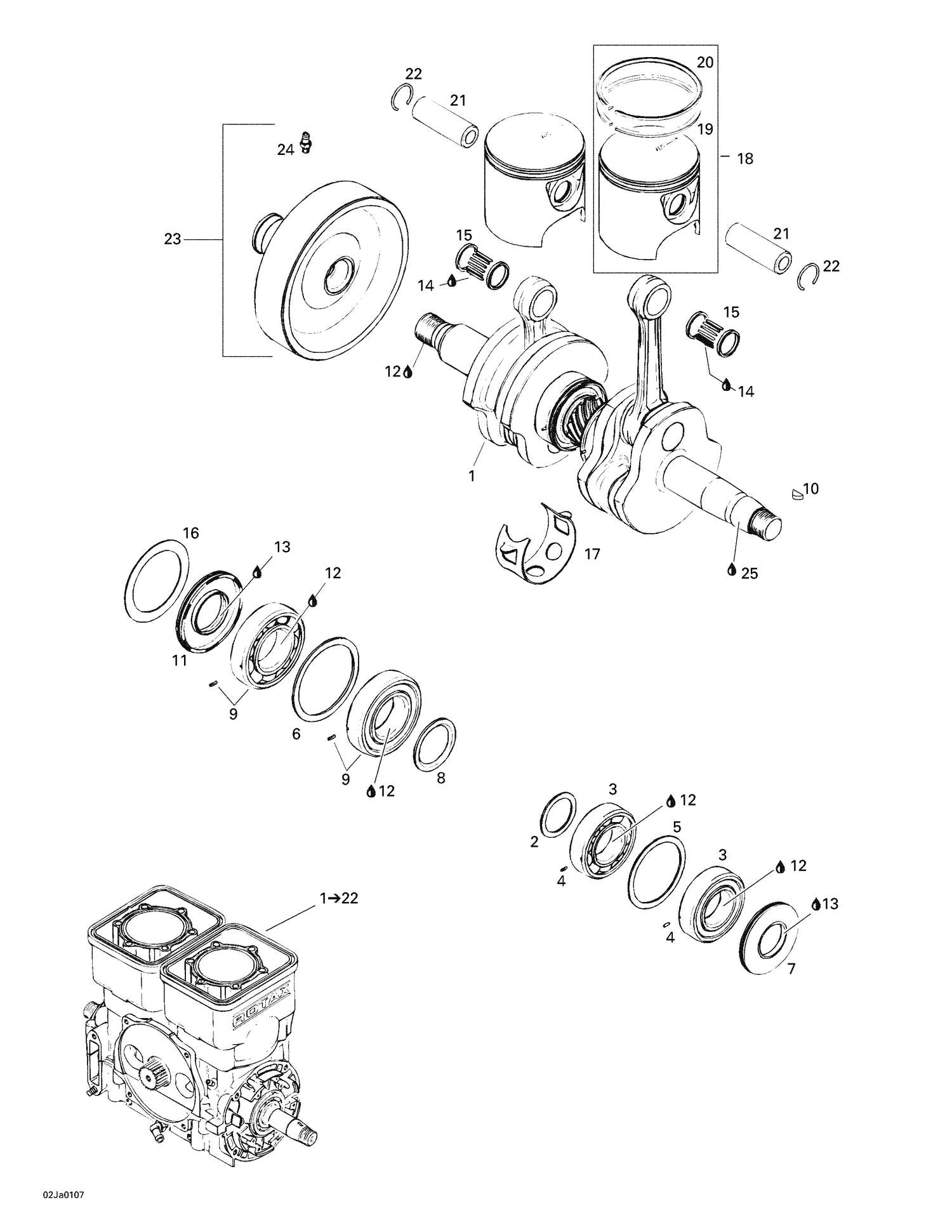

| Ref | Part Number | Description |
|---|
| 1 |
421000074 |
REBUILD-CRANKSHAFT 717 95-96 - Call your local BRP dealership |
| 1 |
421000097 |
REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership |
| 2 |
420827448 |
RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447. |
| 4 |
420929972 |
Dowel Pin |
| 5 |
420827050 |
RETAINING DISK - Call your local BRP dealership |
| 6 |
420927710 |
Retaining Disk |
| 7 |
420830749 |
Oil Seal This part replaces 290830749. |
| 8 |
420827760 |
DISTANCE RING - Call your local BRP dealership |
| 9 |
420832574 |
BALL BEARING - Call your local BRP dealership |
| 10 |
420246055 |
Woodruff Key |
| 11 |
420831952 |
Oil Seal This part replaces 290831952. |
| 12 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 13 |
413707000 |
Dow Corning 111, 150 g |
| 14 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 15 |
420832421 |
NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420. |
| 16 |
290926060 |
RETAINING SHIM - Call your local BRP dealership |
| 17 |
290926070 |
Retaining Ring |
| 19 |
290815080 |
Rectangular Ring 82.00 mm |
| 20 |
290815070 |
Semi-Trapez Ring 82.00 mm |
| 21 |
420916404 |
Piston Pin This part replaces 290916402. |
| 22 |
420845100 |
CIRCLIP - Call your local BRP dealership |
| 24 |
290499113 |
GREASE FITTING - Call your local BRP dealership |
| 25 |
293800060 |
Loctite 243, 10 ml |
| 290815071 |
Semi-Trapez |
Ring 82.25 mm 290815071 |
| 290815072 |
Semi-Trapez |
Ring 82.50 mm 290815072 |
| 290815081 |
Rectangular |
Ring 82.25 mm 290815081 |
| 290815082 |
Rectangular |
Ring 82.50 mm 290815082 |
