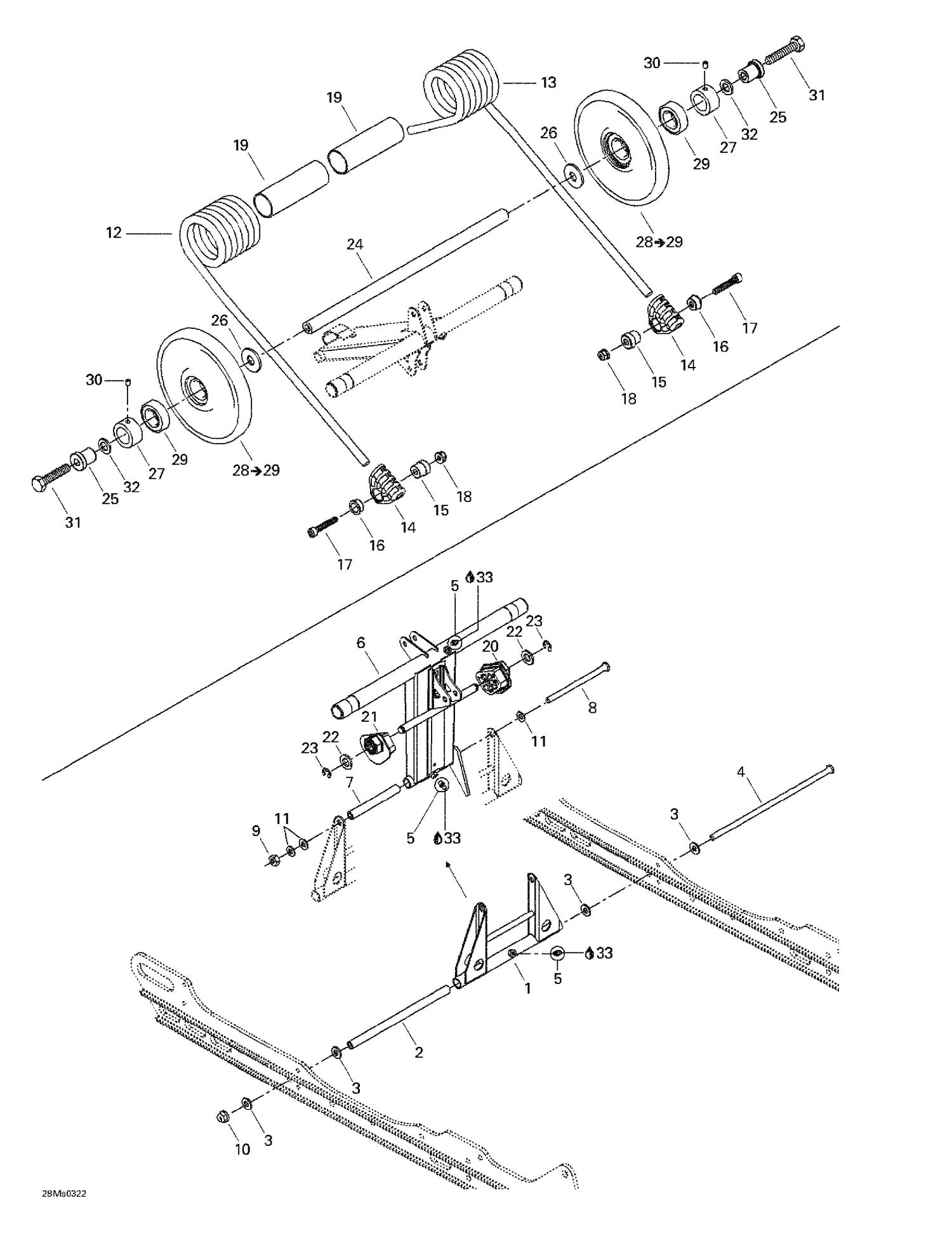

08- Rear Arm
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503189793 | Pivot Arm |
| 2 | 503189156 | Pivot Arm Axle |
| 3 | 503189157 | Washer |
| 4 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 5 | 408200700 | Grease Fitting |
| 6 | 503190323 | REAR ARM - Call your local BRP dealership |
| 7 | 503144300 | Upper Axle, Pivot Arm |
| 8 | 732601197 | Bolt M8, Short |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 234081410 | Flat Washer 8 mm |
| 12 | 503190329 | RH Spring, Square |
| 13 | 503190331 | LH SPRING, SQUARE - Call your local BRP dealership |
| 14 | 503189657 | Spring Support |
| 15 | 503189232 | SPRING GUIDE AXLE - Call your local BRP dealership |
| 16 | 503189231 | Retainer Cushion |
| 17 | 205084544 | Socket Head Screw M8 X 45 |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 |
| 19 | 503190333 | BUSHING - Call your local BRP dealership |
| 20 | 503190023 | LH CAM ADJUSTER - Call your local BRP dealership |
| 21 | 503190022 | RH CAM ADJUSTER - Call your local BRP dealership |
| 22 | 234021410 | Flat Washer 12 mm |
| 23 | 293370013 | E-Circlip |
| 24 | 503190387 | SHAFT - Call your local BRP dealership This part replaces 503188938. |
| 25 | 503190422 | BUSHING - Call your local BRP dealership |
| 26 | 503190328 | Washer |
| 27 | 503168800 | Retaining Ring |
| 29 | 293350115 | Ball Bearing This part replaces 503189567. |
| 30 | 206260844 | Socket Set Screw M6 X 8 |
| 31 | 207205544 | Hex. Screw M10 X 55, Scotch Grip |
| 32 | 503189564 | Washer |
