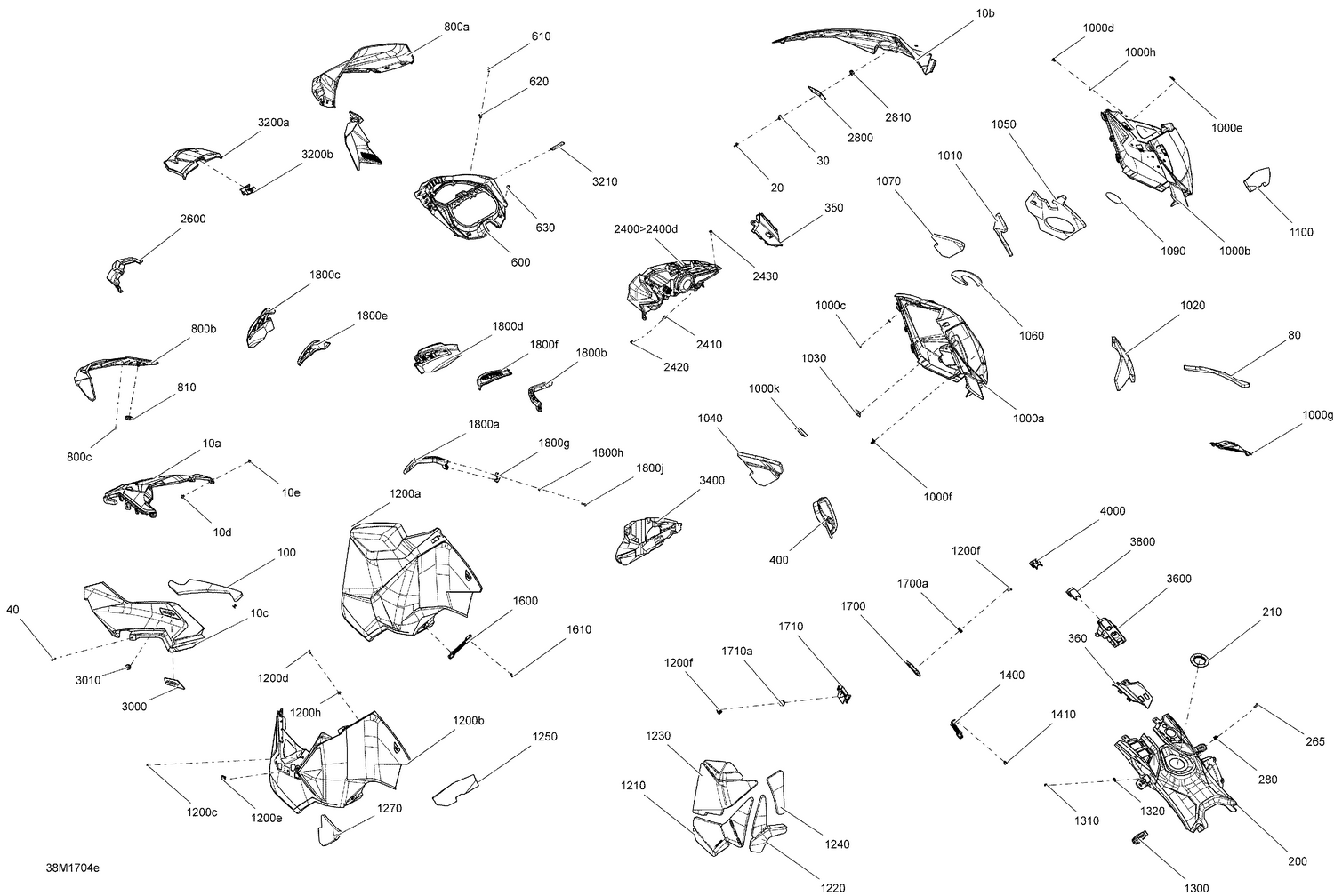

| Ref | Part Number | Description |
|---|
| 10a |
517304796 |
Deep Black, Center Hood |
| 10a |
517306124 |
Orange Crush - Center Hood |
| 10b |
517305229 |
Orange - RH Hood |
| 10b |
517305239 |
Deep Black, RH Hood |
| 10c |
517305230 |
Orange Crush - LH Hood |
| 10c |
517305240 |
Deep Black, LH Hood |
| 10d |
293150104 |
Pop Rivet 3/16" |
| 10e |
517124300 |
Washer |
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 30 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 40 |
250000587 |
Torx Screw M5 X 26 |
| 80 |
517305090 |
RH Rear Hood Foam |
| 100 |
517305091 |
LH Rear Hood Foam |
| 200 |
517305641 |
Deep Black, Rear Console |
| 200 |
517306131 |
Orange Crush - Rear Console |
| 210 |
517304518 |
Console Nut |
| 265 |
250000705 |
Torx Truss Screw M6 X 20 |
| 280 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 350 |
517305549 |
Deep Black, RH Front Console |
| 360 |
517305513 |
Deep Black LH Front Console |
| 400 |
517305061 |
Deep Black RH Console |
| 600 |
517305511 |
Deep Black, Indicator Support |
| 610 |
250000528 |
Torx Screw M5 X 20 |
| 620 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 630 |
250000587 |
Torx Screw M5 X 26 |
| 800a |
517304921 |
Windshield 235mm |
| 800c |
732610072 |
Push Nut |
| 810 |
517303756 |
Grommet |
| 1000a |
517305714 |
Black, RH Panel |
| 1000a |
517306151 |
Orange Crush - RH Panel |
| 1000b |
517305058 |
Black, RH Panel Trim |
| 1000b |
517306138 |
RH TRIM PANEL - Call your local BRP dealership |
| 1000c |
250100158 |
Push Nut |
| 1000d |
293150104 |
Pop Rivet 3/16" |
| 1000e |
517305109 |
Rivet Plate |
| 1000g |
517305715 |
Grille |
| 1000h |
517124300 |
Washer |
| 1000k |
517305731 |
Bumper Stopper |
| 1010 |
517305793 |
RH Foam Central |
| 1020 |
517305801 |
RH Foam Rear |
| 1030 |
517305451 |
Heat Shield |
| 1040 |
517305790 |
RH Foam Upper |
| 1050 |
517305792 |
RH Foam Lower |
| 1060 |
517305795 |
Foam |
| 1070 |
517305791 |
Foam |
| 1090 |
517305796 |
Rubber Sheet |
| 1100 |
517305794 |
Foam |
| 1200c |
250100158 |
Push Nut |
| 1200d |
293150104 |
Pop Rivet 3/16" |
| 1200e |
517305109 |
Rivet Plate |
| 1200h |
517124300 |
Washer |
| 1210 |
517305802 |
Foam |
| 1220 |
517305797 |
Foam |
| 1230 |
517305798 |
Foam |
| 1240 |
517305803 |
Foam |
| 1250 |
517305800 |
Foam |
| 1270 |
517305799 |
Foam |
| 1300 |
517305279 |
Panel Latch |
| 1310 |
250000565 |
Hexalob Screw M4 X 10 |
| 1320 |
250100156 |
Weld Nut M4 |
| 1400 |
517304919 |
RH Panel Latch |
| 1410 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1600 |
517303808 |
LH Panel Latch |
| 1610 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1700a |
517305723 |
Ring |
| 1710a |
517305723 |
Ring |
| 1800a |
517305290 |
Deep Black, LH Arm |
| 1800b |
517305293 |
Deep Black, RH Arm |
| 1800c |
517305291 |
LH Deflector, Smoked 60% |
| 1800d |
517305294 |
RH Deflector, Smoked 60% |
| 1800g |
517305296 |
Clamp |
| 1800h |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1800j |
250000724 |
Torx Screw M5 X 20 |
| 2400a |
219400070 |
Cap |
| 2400b |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400c |
219800282 |
Holder Bracket |
| 2400d |
219800281 |
Spring |
| 2410 |
250000528 |
Torx Screw M5 X 20 |
| 2420 |
250100035 |
Jack Nut M5 |
| 2430 |
250000725 |
Screw M4 X 16 |
| 2600 |
517305010 |
Headlight Trim Cap |
| 2600 |
517306177 |
RH AIR DEFLECTOR - Call your local BRP dealership |
| 2800 |
517304923 |
RH Air Deflec.Console, Black 63% Transm. |
| 2810 |
517307161 |
Grommet This part replaces 517302841. |
| 3000 |
517304924 |
LH Air Deflec.Console, Black 63% Transm. |
| 3010 |
517307161 |
Grommet This part replaces 517302841. |
| 3200a |
517304912 |
Deep Black, Upper Storage Access Cover |
| 3200b |
517304917 |
Cover Latch |
| 3210 |
517305157 |
Seal Joint |
| 3400 |
517305095 |
Deep Black, Trunk |
| 3600 |
517304970 |
Deep Black, Console Support |
| 3800 |
517305180 |
Deep Black, Support Console Cap |
