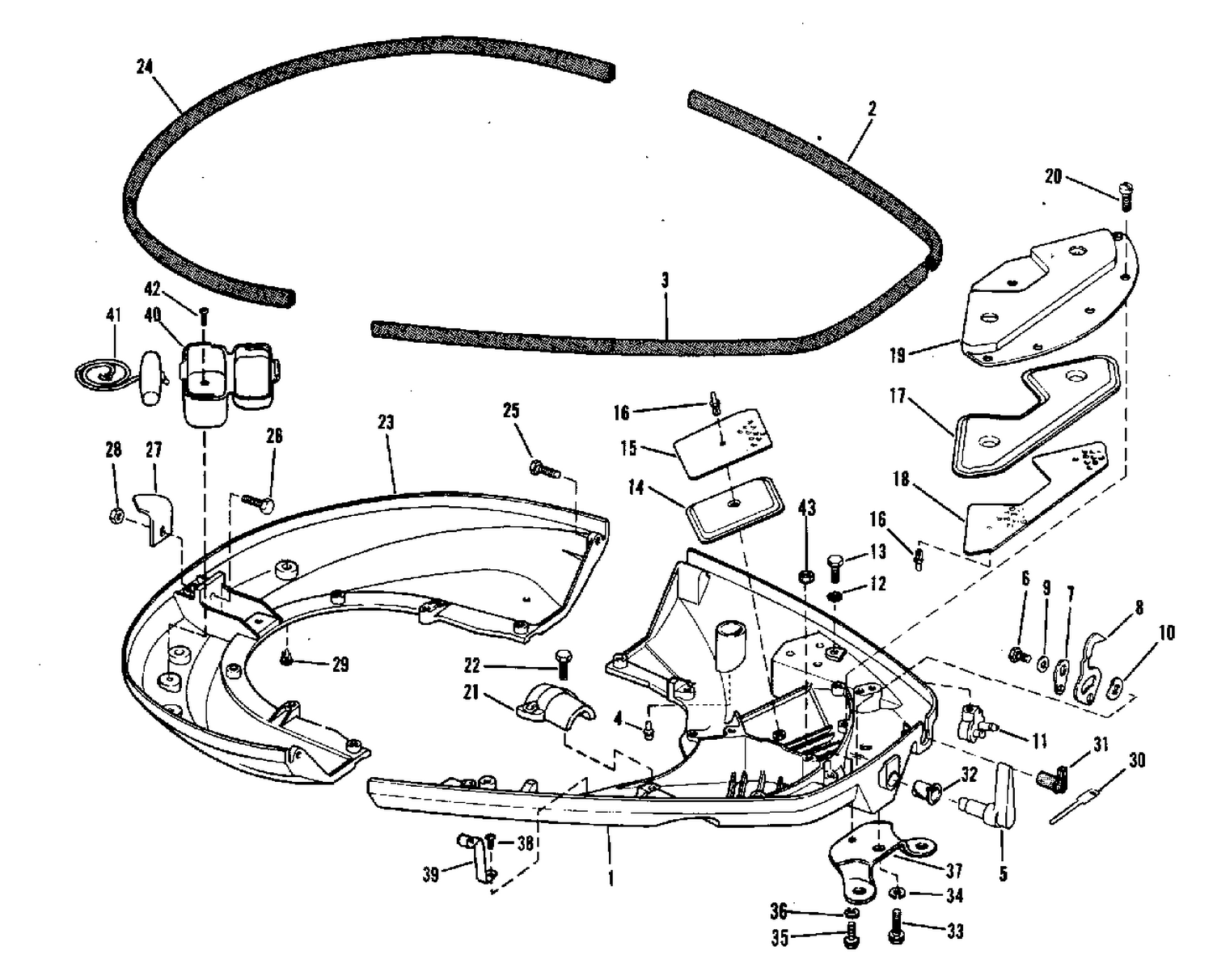

| Ref | Part Number | Description |
|---|
| 1 |
0381811 |
MOTOR COVER & SEAL ASSY., Lower front |
| 2 |
0310862 |
SEAL, Port |
| 3 |
0310863 |
SEAL, Starboard |
| 5 |
0310427 |
HANDLE, Latch |
| 6 |
0308551 |
SCREW, Clamp to intake mfld |
| 7 |
0310426 |
LINK, Latch |
| 8 |
0310425 |
HOOK, Latch |
| 9 |
0310423 |
WASHER, Latch |
| 10 |
0310054 |
BOW WASHER, Knob to bracket |
| 11 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 13 |
0306419 |
SCREW |
| 14 |
0310739 |
PAD, Silencer |
| 15 |
0310738 |
PLATE, Pad to cover |
| 16 |
0307897 |
FASTENER, Plate |
| 17 |
0310735 |
PAD, Silencer |
| 18 |
0310734 |
PLATE, Silencer pad |
| 19 |
0310732 |
COVER, Silencer |
| 20 |
0310379 |
SCREW |
| 21 |
0314940 |
CLAMP, Cable This part replaces 0311219. |
| 23 |
0381909 |
MOTOR COVER, Lower rear |
| 24 |
0205368 |
SEAL, Lower cover |
| 25 |
0313061 |
SCREW, Lower covers |
| 26 |
0307113 |
SCREW, Hook to cover |
| 27 |
0310361 |
HOOK, Lower rear cover |
| 29 |
0203652 |
PLUG, Button, rear cover |
| 30 |
0305021 |
STRAP, Grommet |
| 31 |
0310678 |
GROMMET, Throttle cable |
| 32 |
0553769 |
BUSHING |
| 33 |
0910741 |
SCREW, Cover plate This part replaces 0313023. |
| 35 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 37 |
0313024 |
BRACKET REMOTE CONTROL |
| 39 |
0311283 |
RETAINER, Cable connector |
| 40 |
0312058 |
BOX, Emergency start rope |
| 41 |
0378347 |
CORDE DE LANCEUR |
| 42 |
0307426 |
SCREW |
