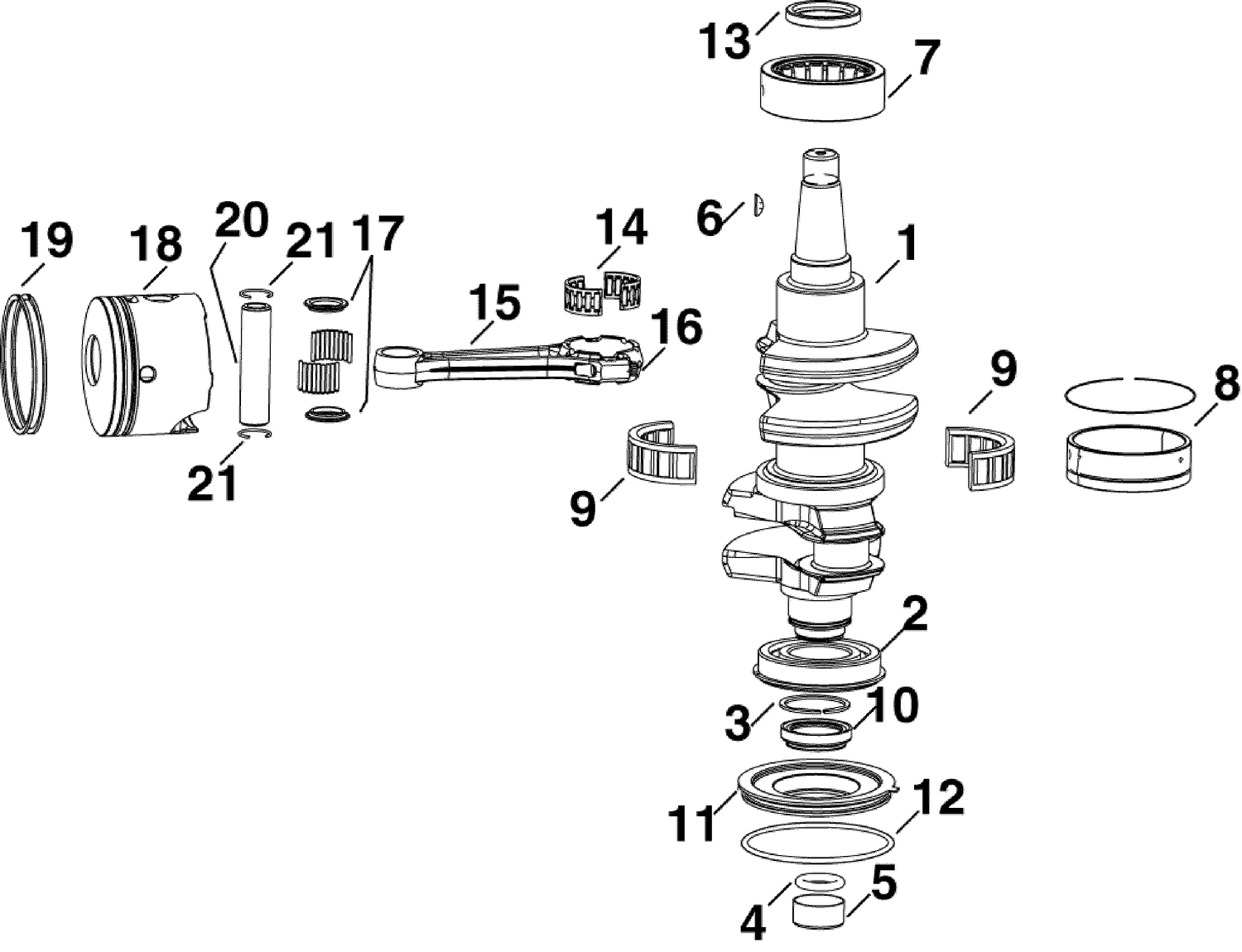

05-2_CRANKSHAFT & PISTONS
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5005189 | CRANKSHAFT & BEARING ASSEMBLY |
| 3 | 0326047 | Retaining Ring |
| 7 | 5005268 | BEARING Assembly, Upper |
| 8 | 0352960 | BEARING RACE, Center main |
| 9 | 5007190 | BEARING Assembly, Center main |
| 11 | 0340559 | CORPS, joint, palier inférieur |
| 14 | 0387787 | BEARING Assembly, Connecting rod |
| 15 | 5006383 | CONNECTING ROD |
| 17 | 0395627 | BEARING & RETAINER |
| 20 | 0327861 | Wrist Pin |
